Road manager

+ ROAD | + ROAD

• The Road manager is the control panel of all data of the road project.

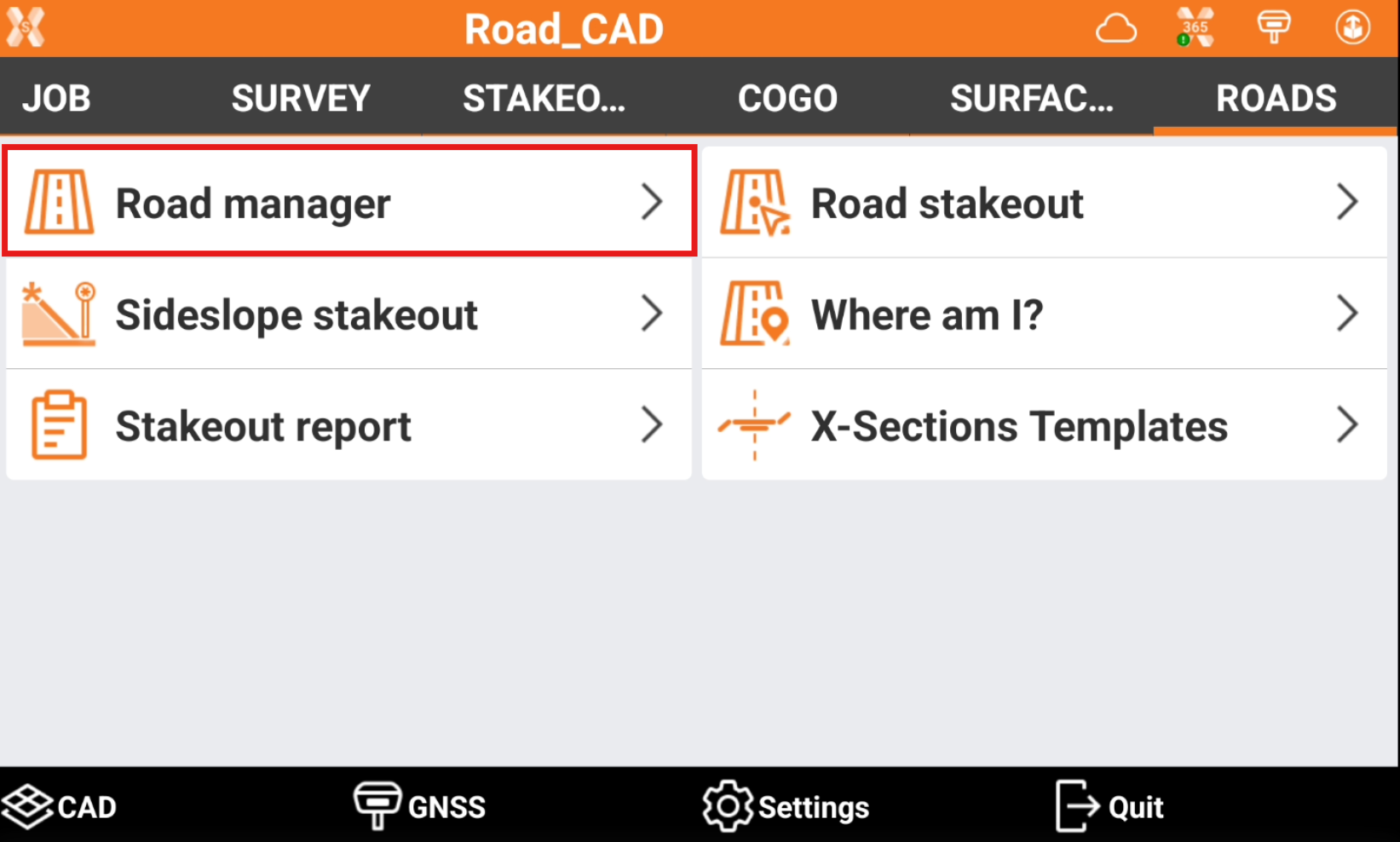

• Click Road.

• Click Road manager.

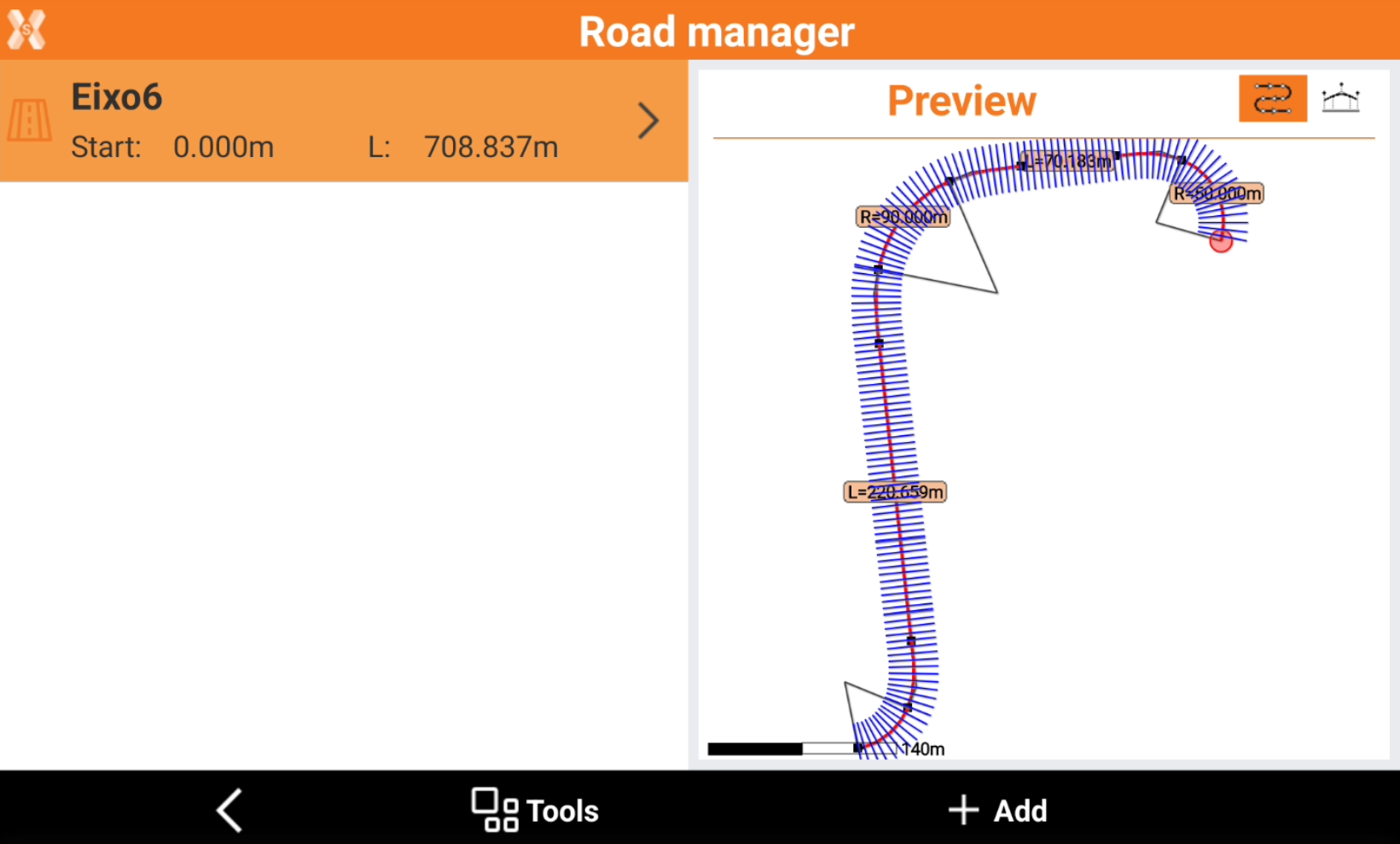

• The page lists all the roads available in the job. Click on a road to show the preview.



• The preview panel has a graphical view of the selected road with all its elements.

  • Click to visualize the vertical alignment.

  • Click to visualize the horizontal alignment, with centerline, road axis and cross sections.

Import road data

• To import road data from external file click Tools.

• Select Import road data.

• Refer to Import road data.

Add a new road

• To design a new road click Add.

• Refer to Design a road step-by-step.

Display options

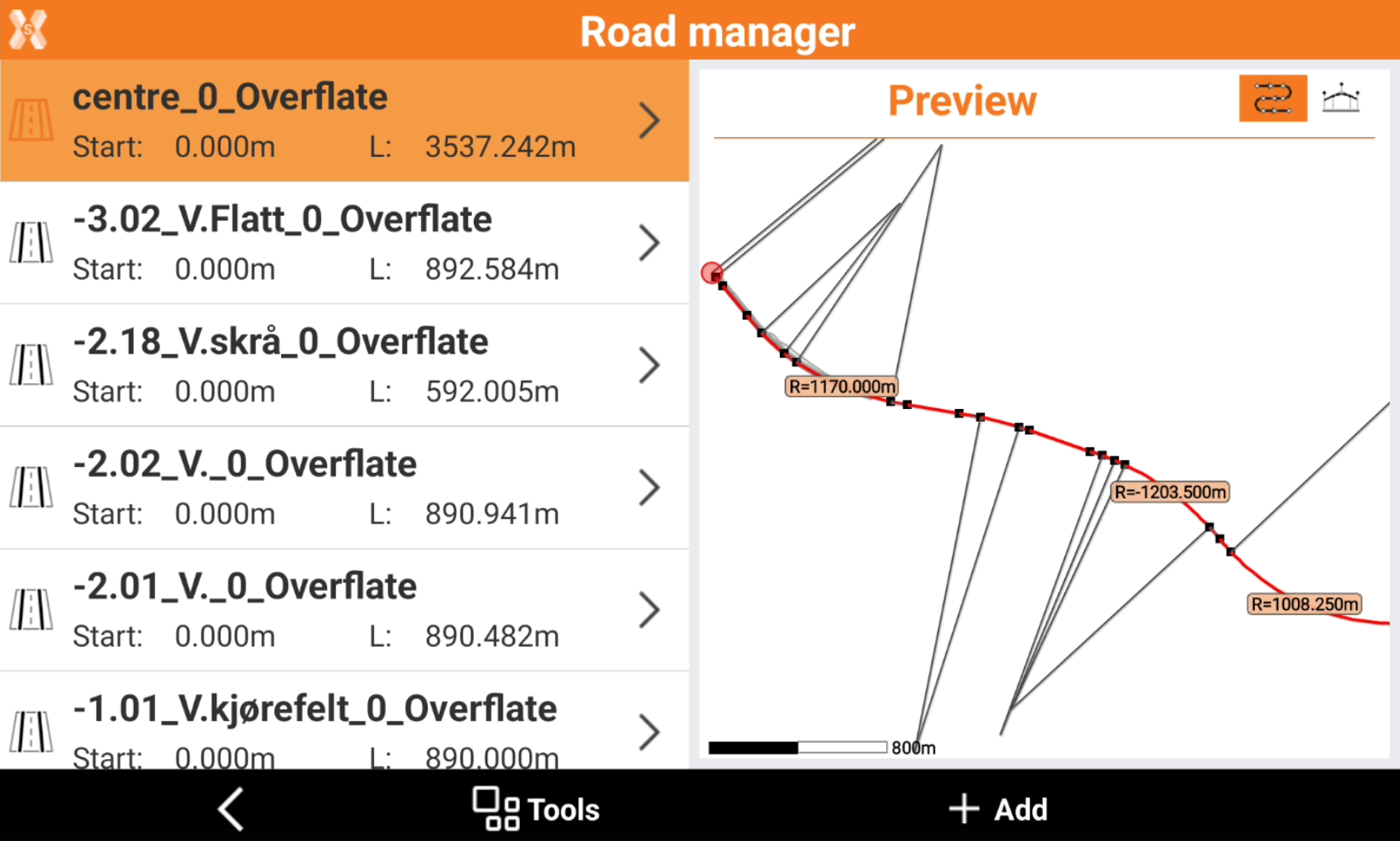

• The road can be imported with several axis.

• In this case it is possible to select if display only the centerline or also the other axis in the road manager.

• Click Tools.

• Click Display all to display all axis.

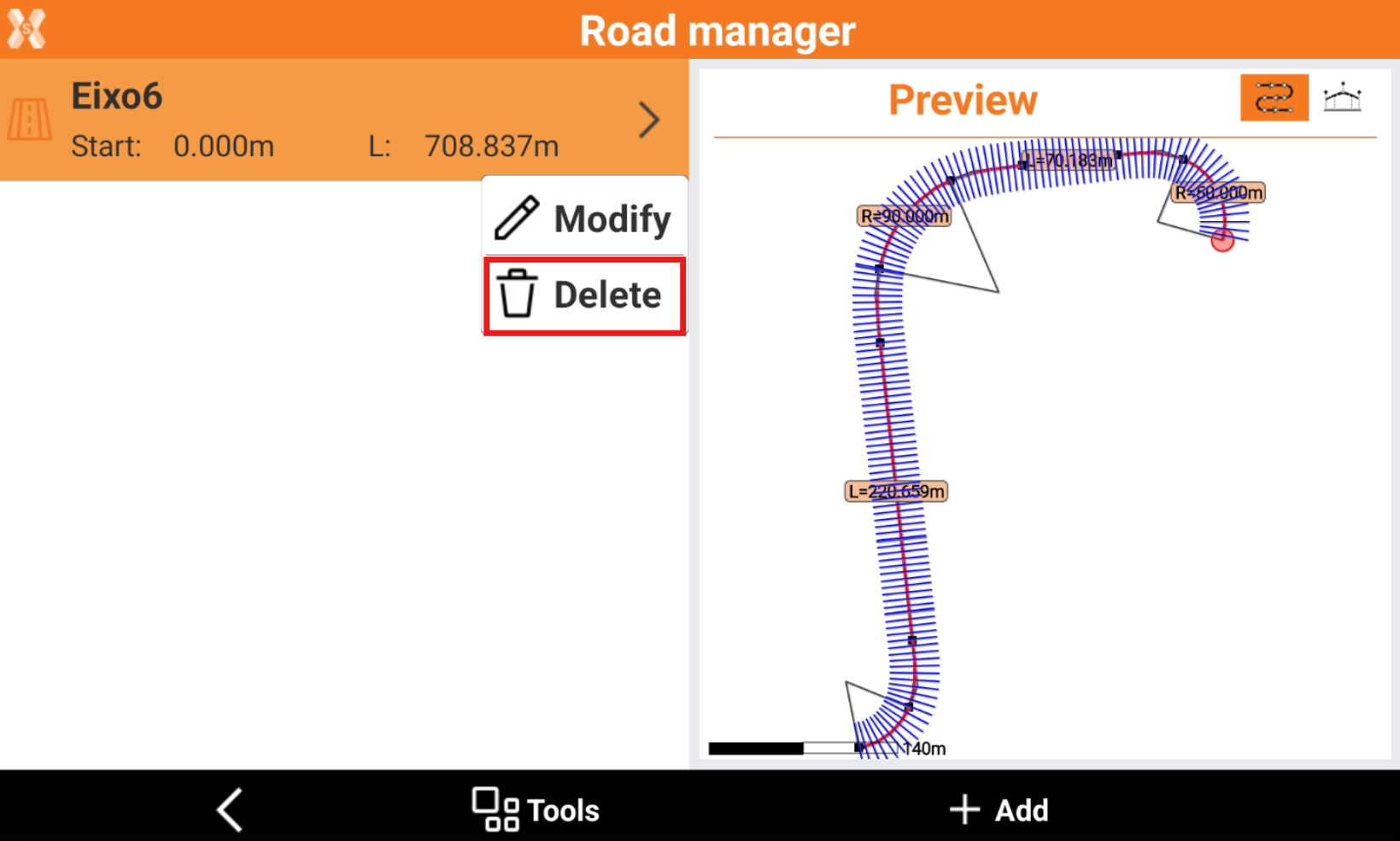

Delete a road

• To delete a road select the road in the Road manager.

• Click Delete.
