Road stakeout report

+ ROAD | + ROAD

• All points measured in the road functions are recorded as stakeout points.

• The points can be exported in the Stakeout report.

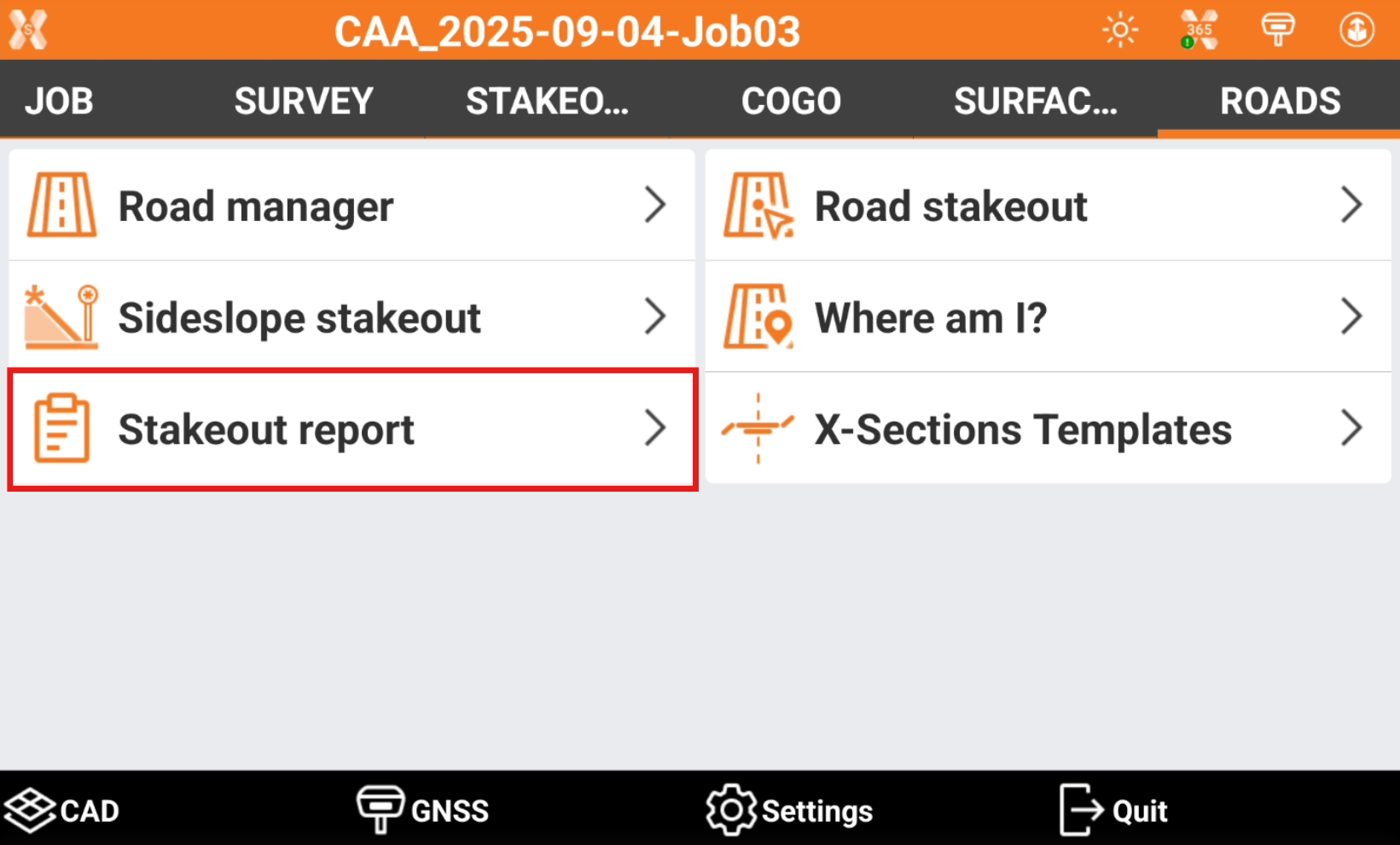

• Click Roads.

• Click Stakeout report.



• Select the road.

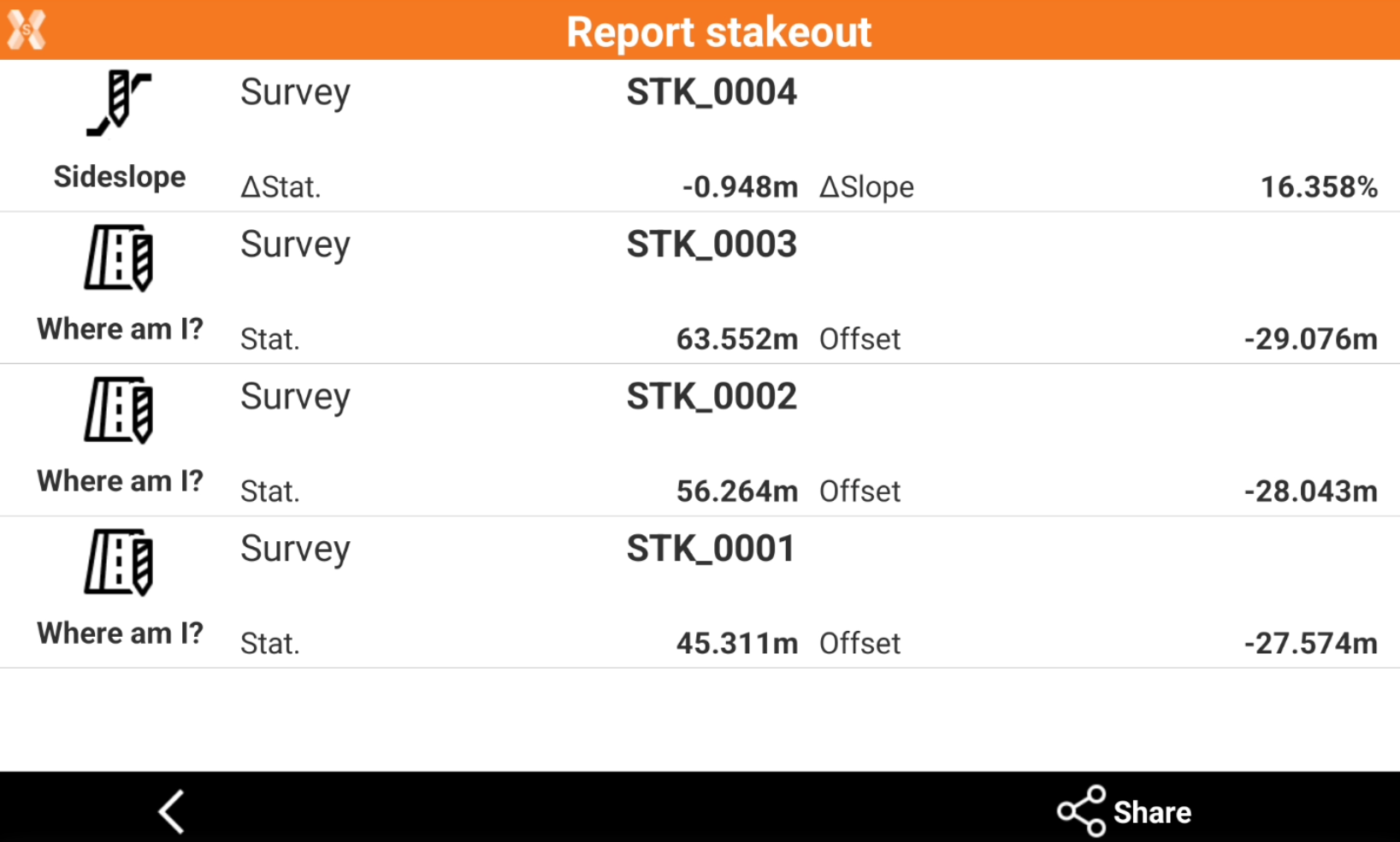

• The page lists the measured points and the main information.



• Click Share to export the report.

• Select the report version:

  • Extended: allows to export all project information. See Report.

  • Basic: export stakeout information. Allows to select if export the differences from design data or the differences to design data.

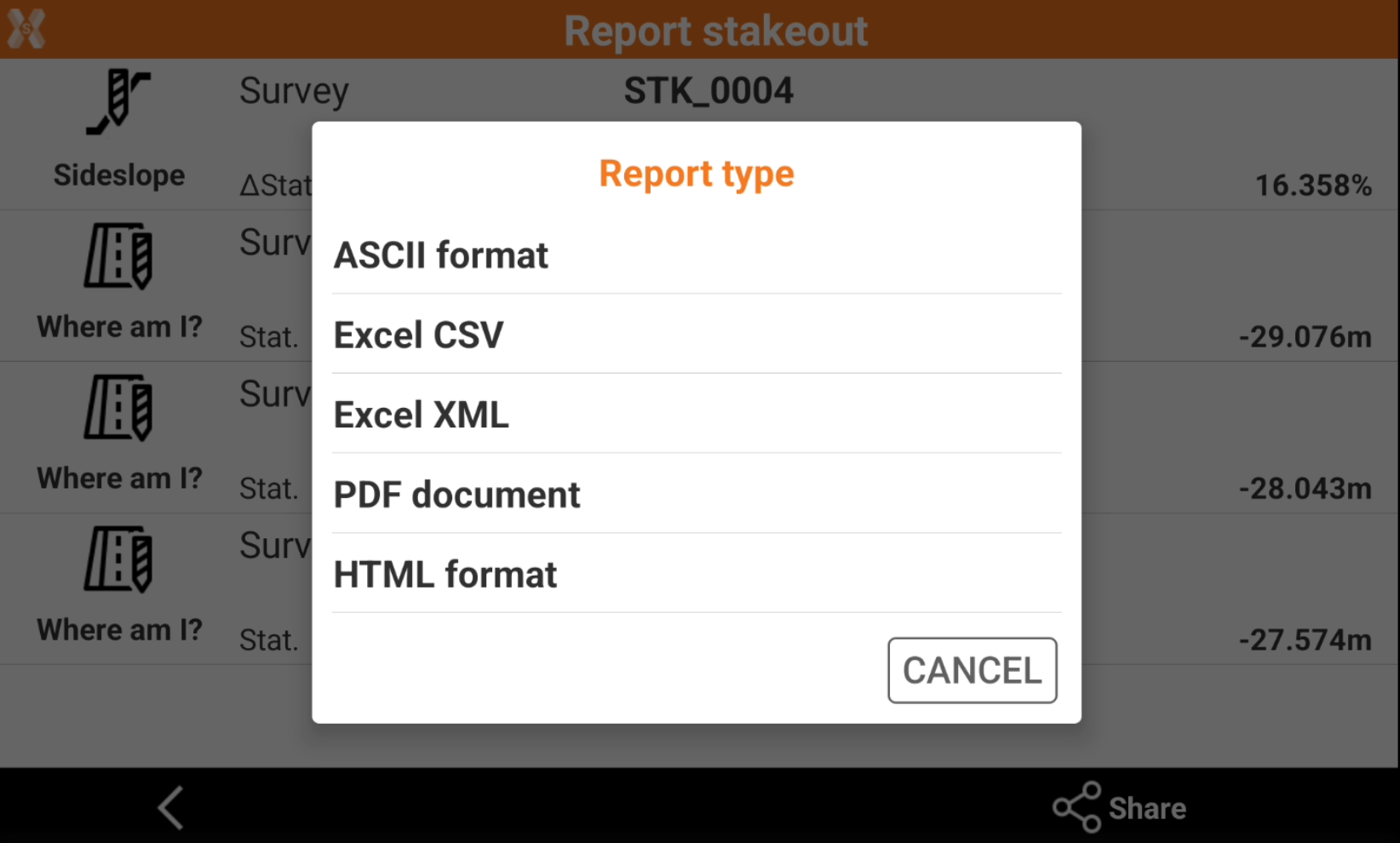

• Select the file version to proceed with the export.
