Set the target type

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • Using the right target is critical to get the correct result when measuring with a total station

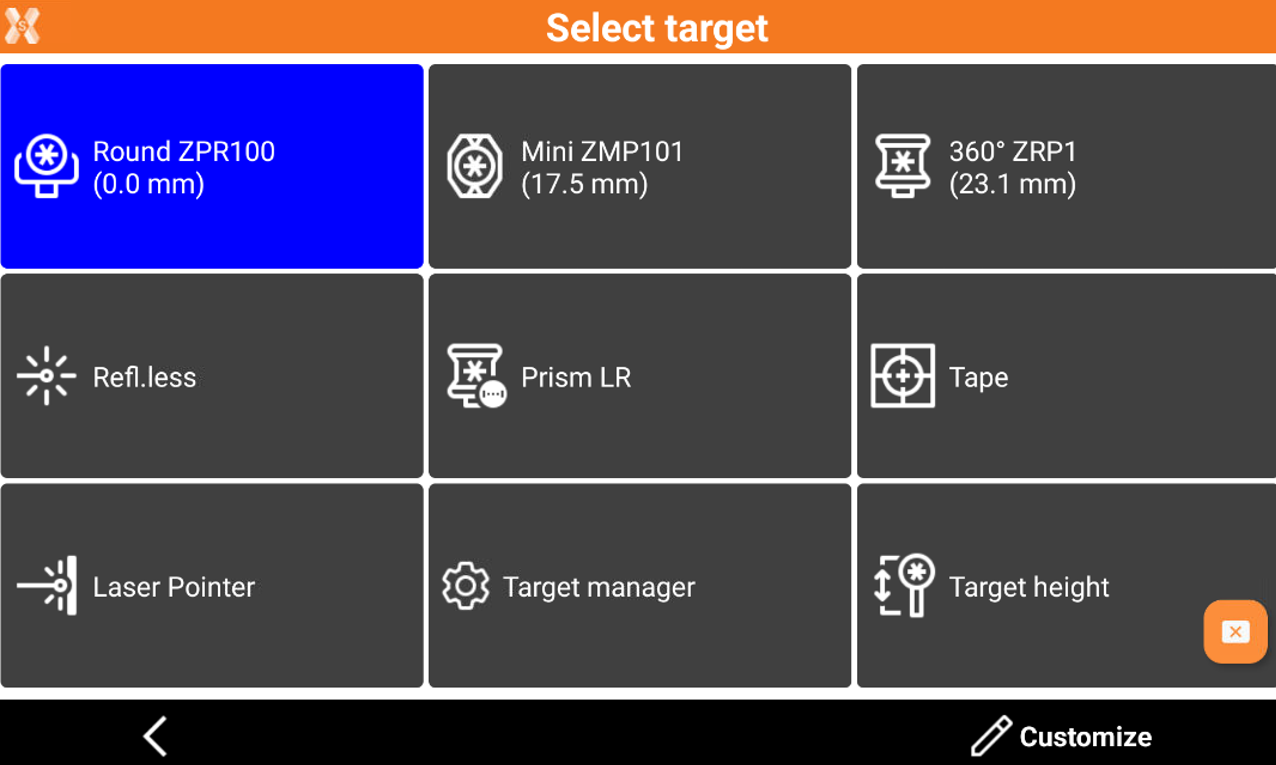

  • While in survey or stakeout applications, click on the prism icon to open the Select target page.


  • This page allows to change the target and change the EDM settings.


  • The six fields in the upper part contain six prism types. Click on a target to change the current target type.

  • It is possible to customize the buttons with the favorite targets available in the target manager.

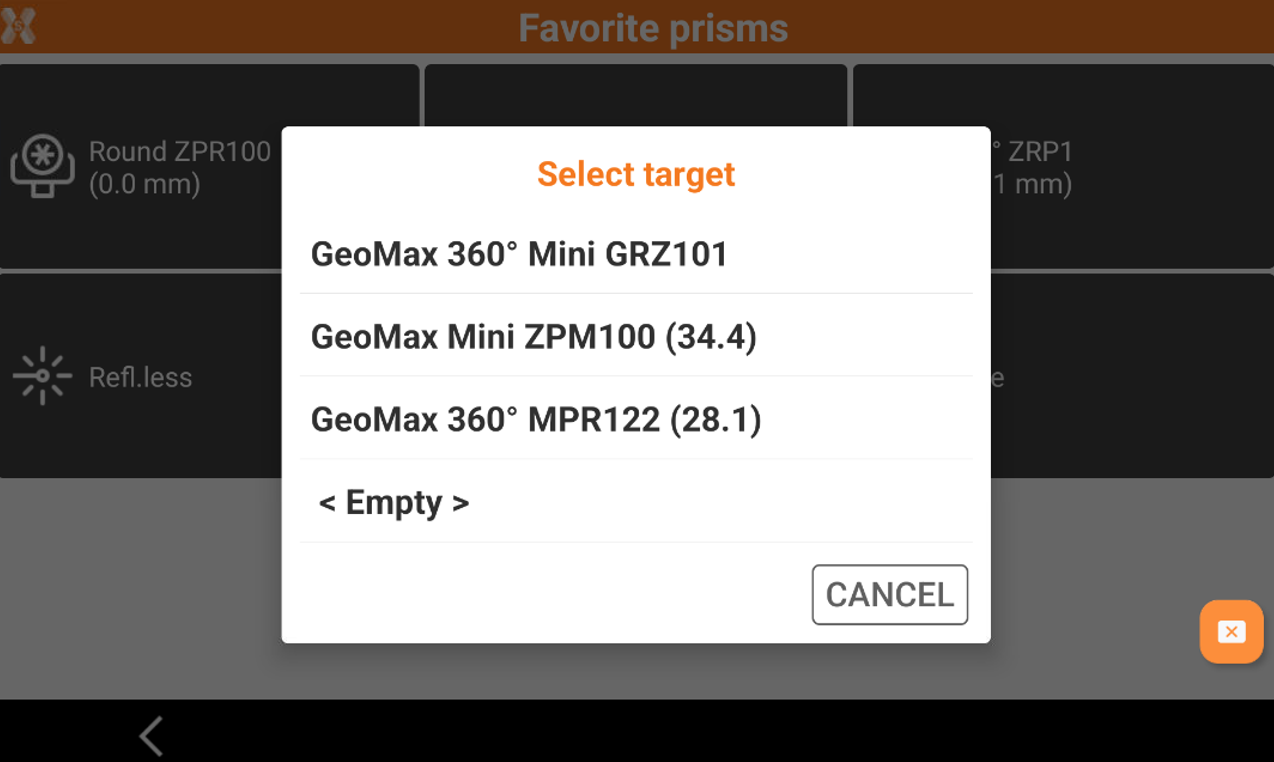

  • To customize the fields click Customize, then click on one of the available buttons to select the target.
