Stakeout report

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • All stakeout data related to stakeout of points or elements are recorded in the job.

  • This command allows reading and exporting the data.

  • Available output formats:

    • ASCII

    • CSV for Excel

    • XML for Excel

    • PDF

    • HTML

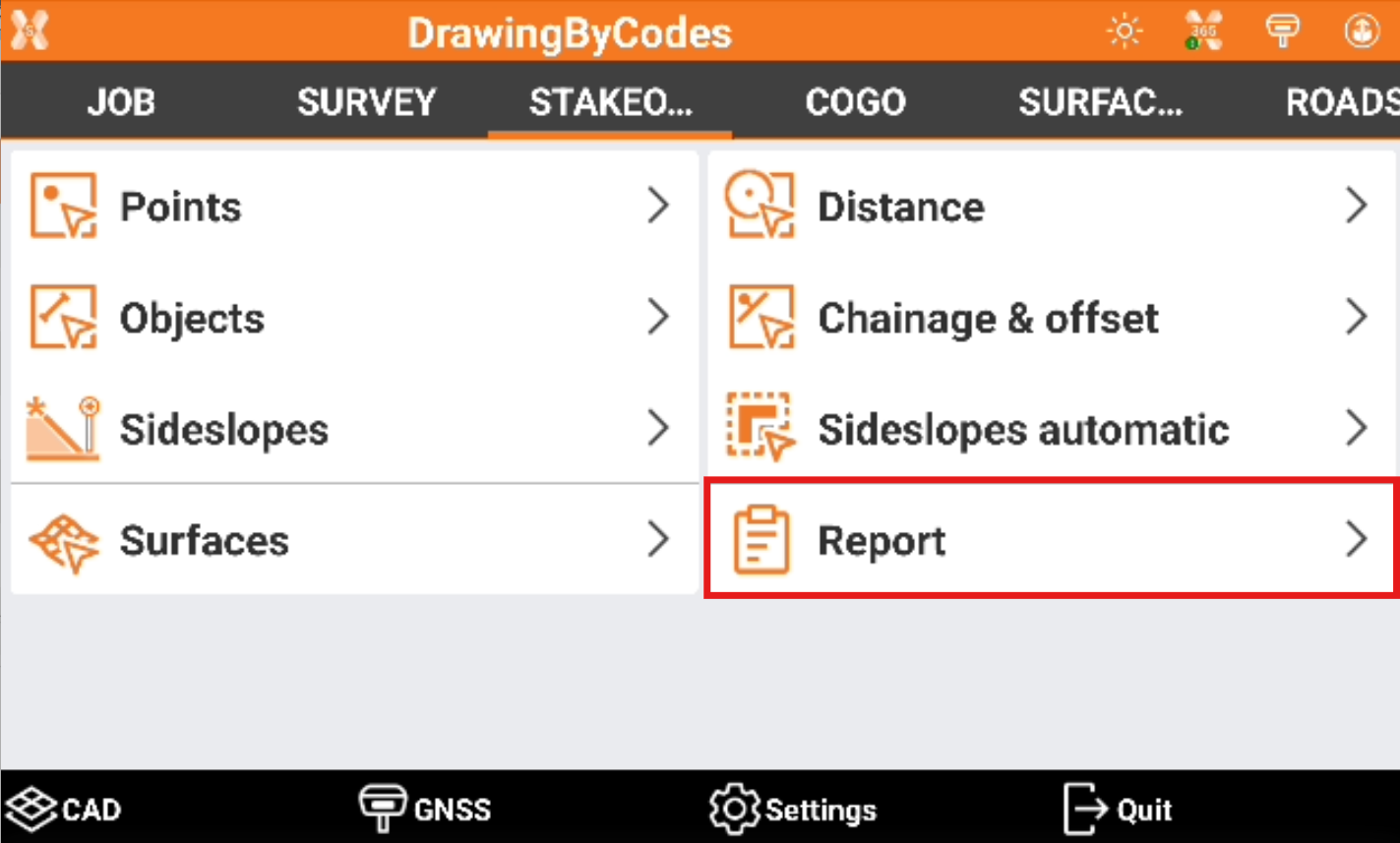

  • Click Stakeout.

  • Click Report.

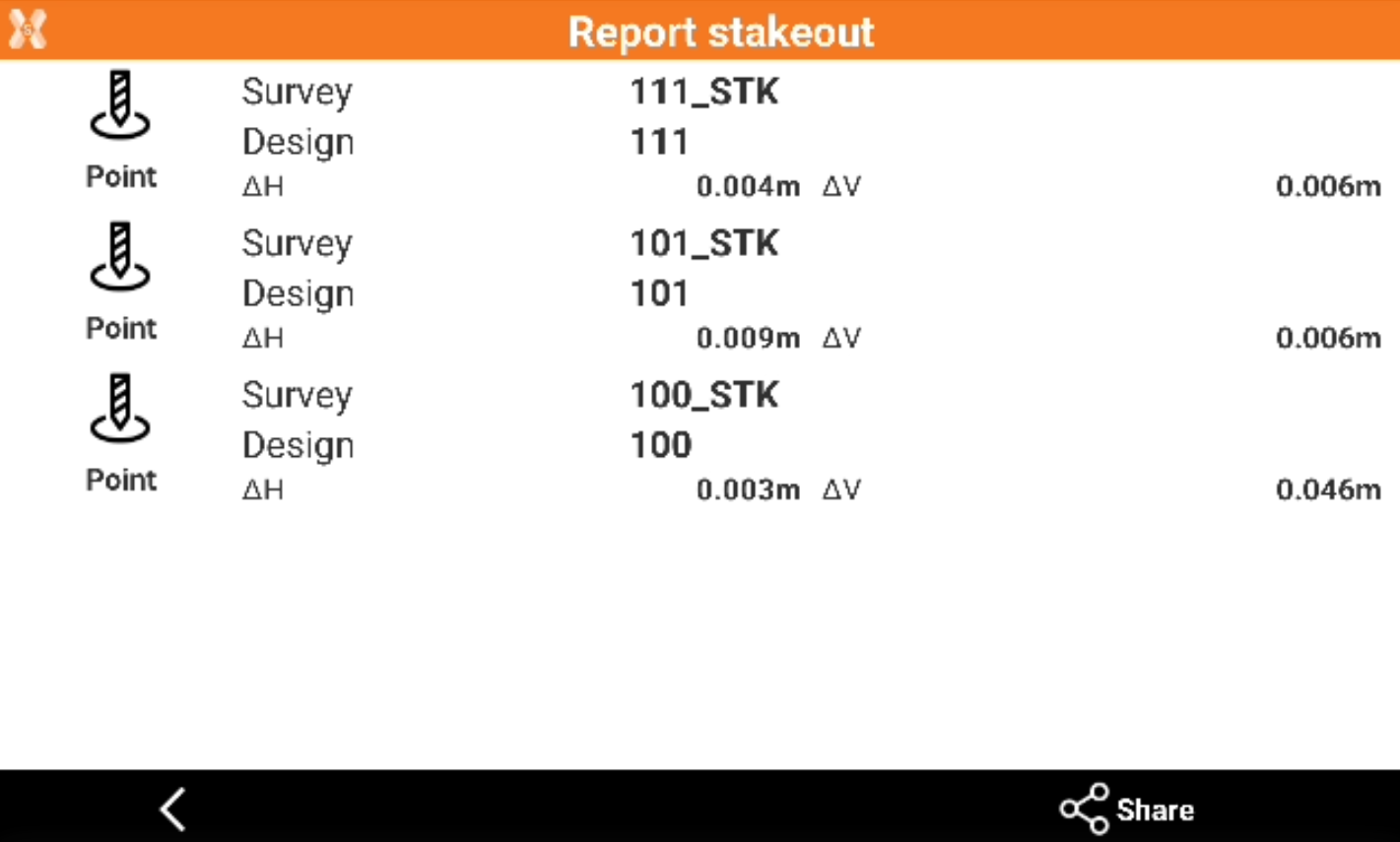

  • A table presents the list of all stakeout points with differences, in distances and elevations, between the design coordinate and the stakeout coordinate.

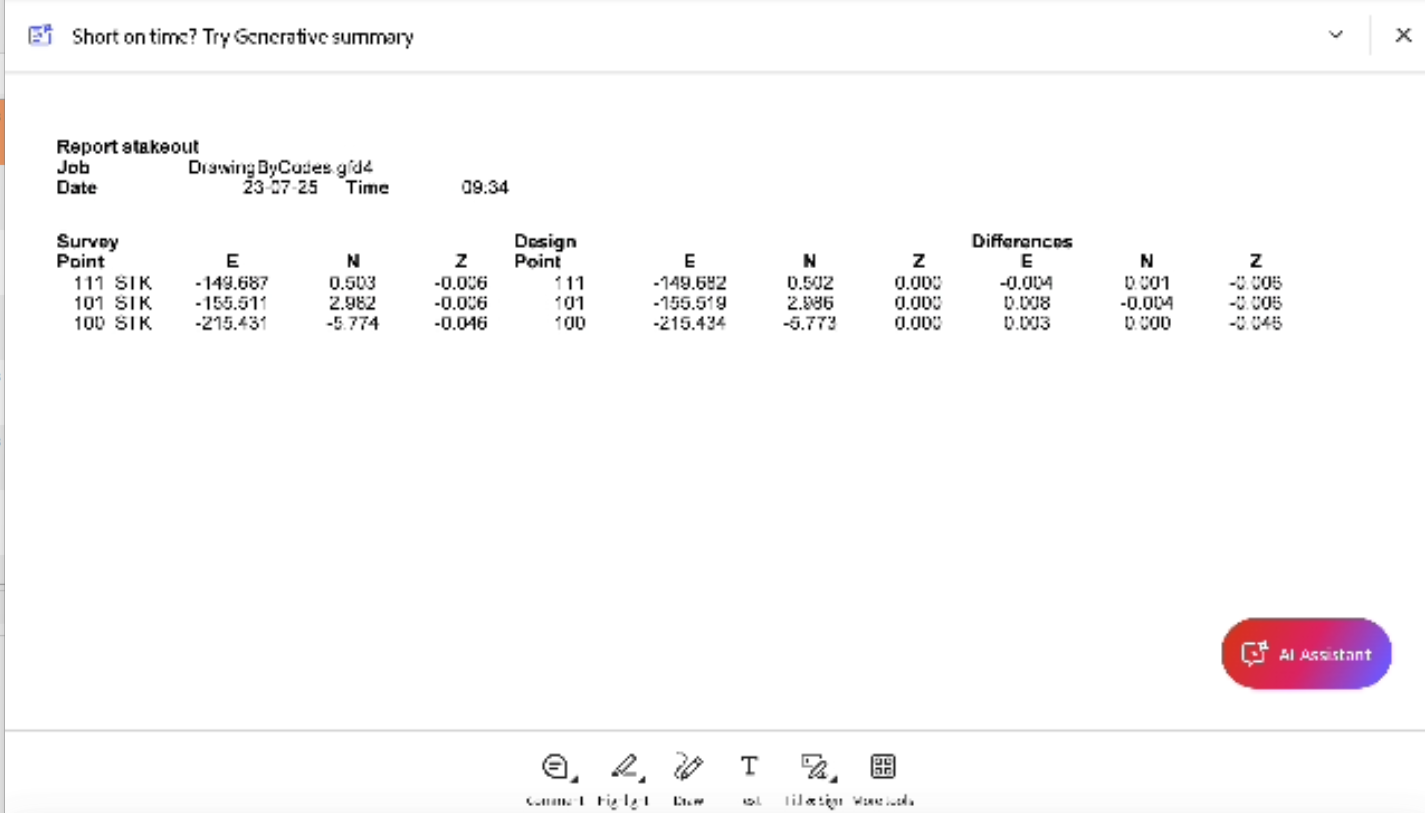

  • Click Share to create an ASCII, CSV, XML, PDF or HTML document, with all stakeout data of every point.

  • Select the report mode:

    • Extended report: includes all project information as coordinate system, measurements and other data that can be customized. See Report.

    • Basic report: creates a report only with stakeout information showing the differences from or to design data.
