Static survey of points

|

• Record static data of the position of the receiver for post-processing to determinate precise coordinates.

• Click Survey.

• Click Static survey.

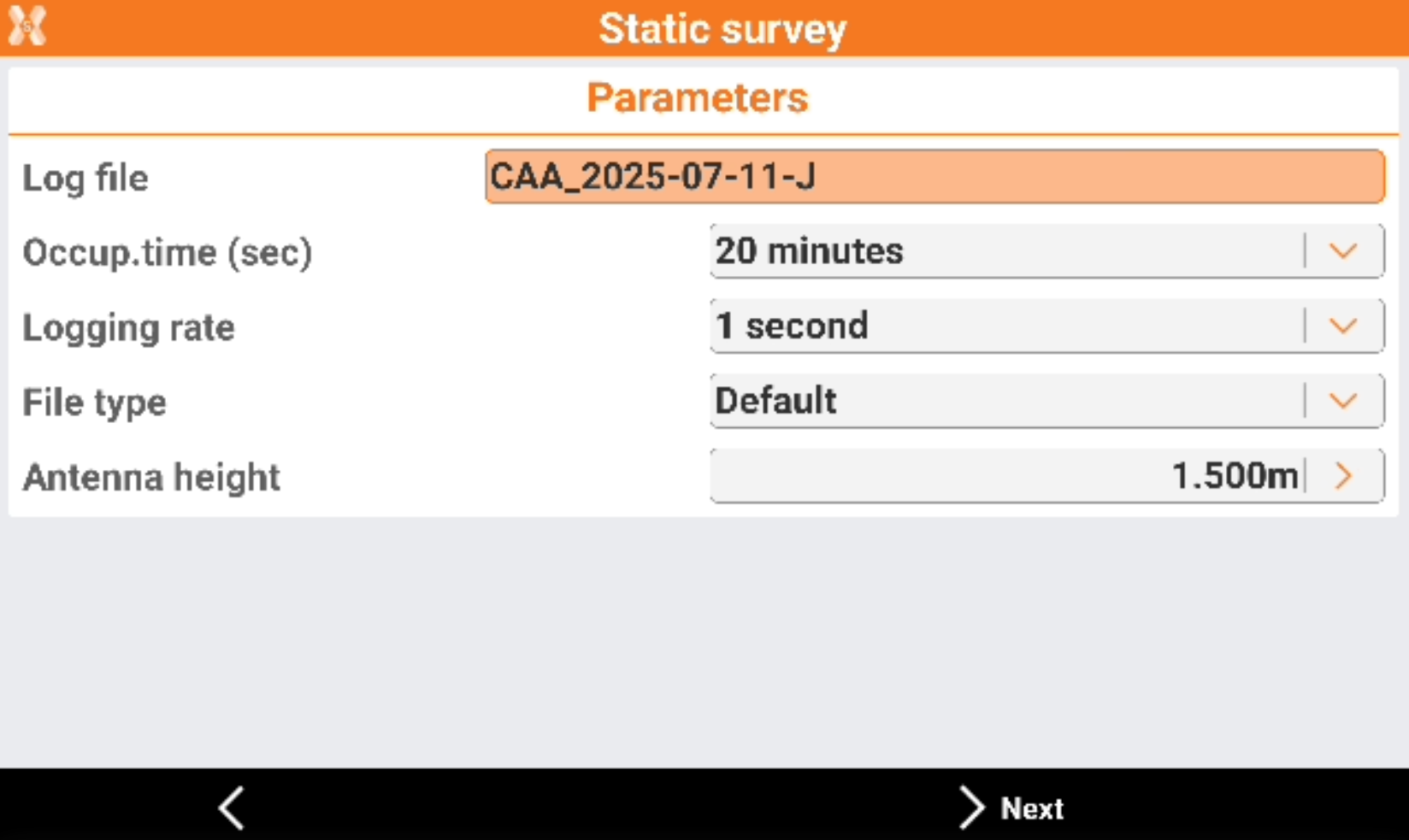

• Define the parameters necessary to execute recording of data of the session by the receiver.



  • Log file: name to assign to the log file that contains data of the occupation.

  • Logging rate: frequency with which to record data for post-processing.

  • Occup.time: occupation time of the point. Set a default time or choose the Custom option. In this case, the stop of the point occupation has to be made manually.

  • Memory type: available on some receiver models. Receiver internal memory or SD card.

  • File type: sets the file’s type to store.

  • Antenna height: sets the height of antenna to store.

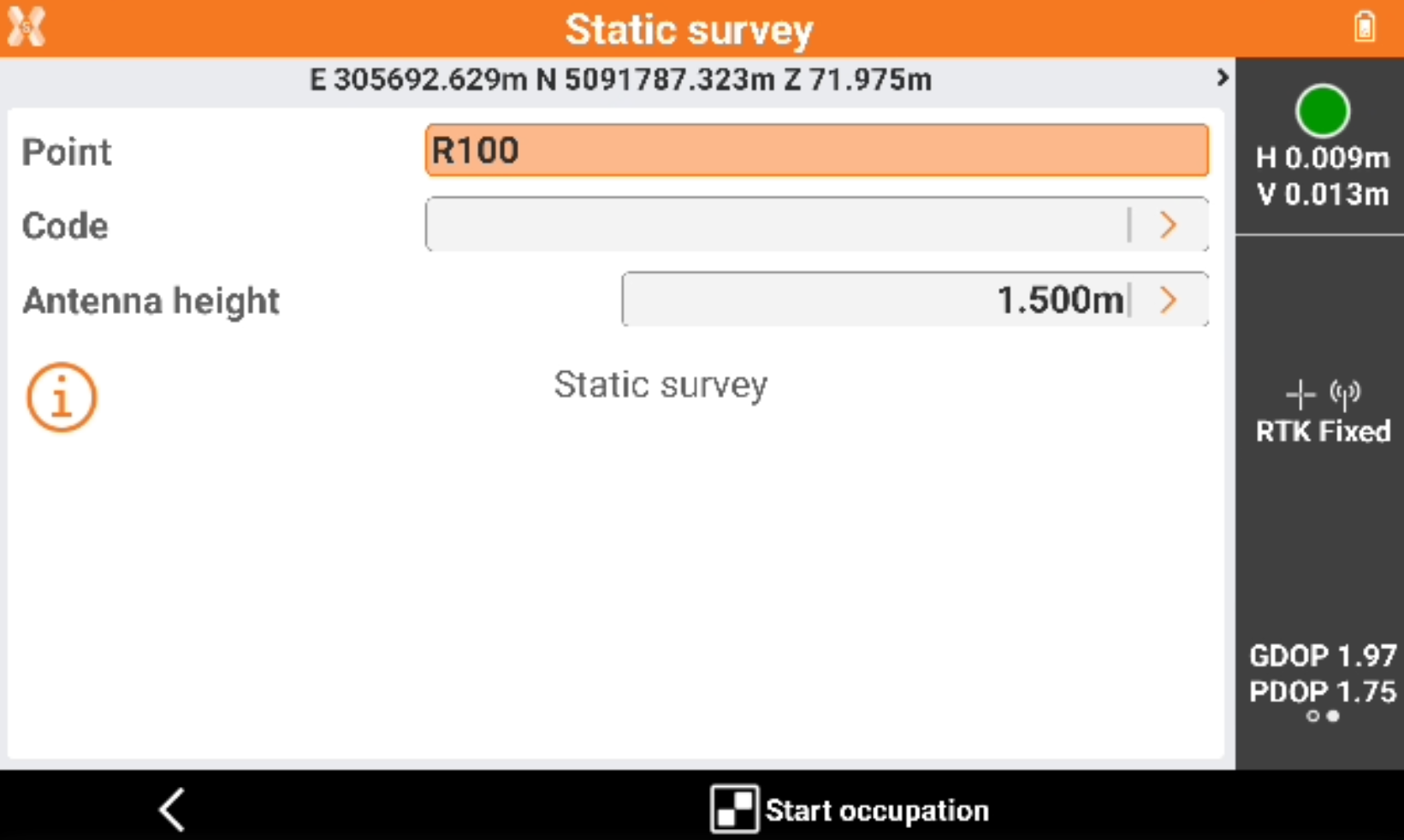

• Tap Next to proceed and go to the window of static measuring of points. The window functions in the same way of the simple surveying window.



• Click Start occupation to start the recording.

• The static measuring of the positions starts. Receiver begins data recording inside the controller or in its internal memory.

• If the time of occupation has been defined, a counter of the remaining time is displayed. Otherwise a counter shows the time since the beginning of the occupation.

• Tap to stop measuring.

• At the end of the occupation or after a stop, the command asks a confirmation of the data of the point.
