Survey with cable locators

X-PAD Ultimate Survey 1.png + LOCATORS

  • The methodology of GPS survey with locators is the same as the standard GNSS survey.

  • An active locator profile must be defined that is used to acquire the depth values, see Creating a profile for cable detector.


  • Click Survey.

  • Click Survey points.

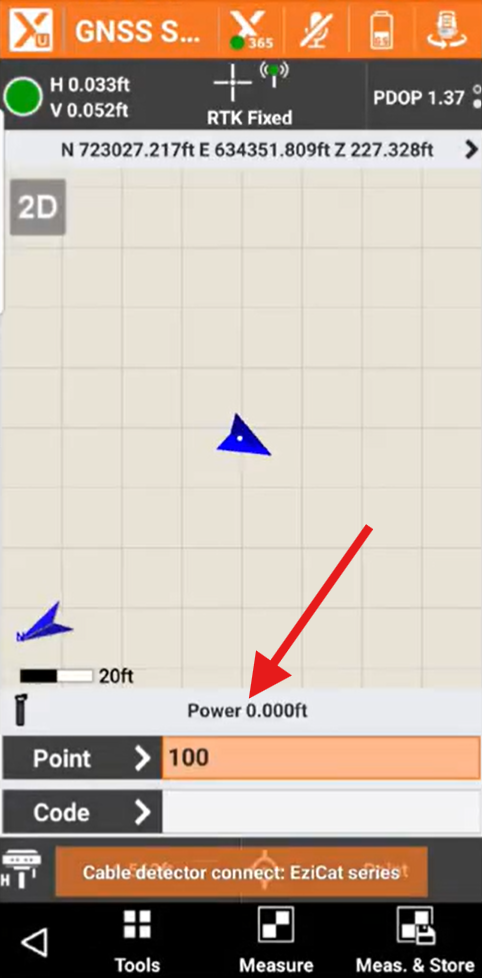

  • X-PAD connects to GNSS receiver and locator. If the locator profile is active in the GPS survey window, a bar with the locator working mode is visible.


  • Press the LOG key of the locator to send the measured value of depth to the software on the controller.

  • The software captures the depth and stores a new point using the current GPS position.

Webinar

Locators how to use them & X PAD locators module

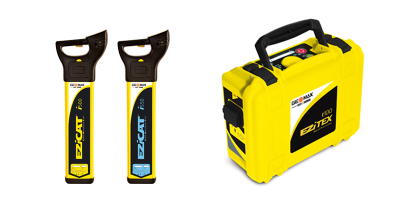

(2024-2-11) How to work with GeoMax cable locators and the X-PAD locator optional module.
