Text

|

• Text command allows to insert a text in CAD.

• Click Draw.

• Click Text.

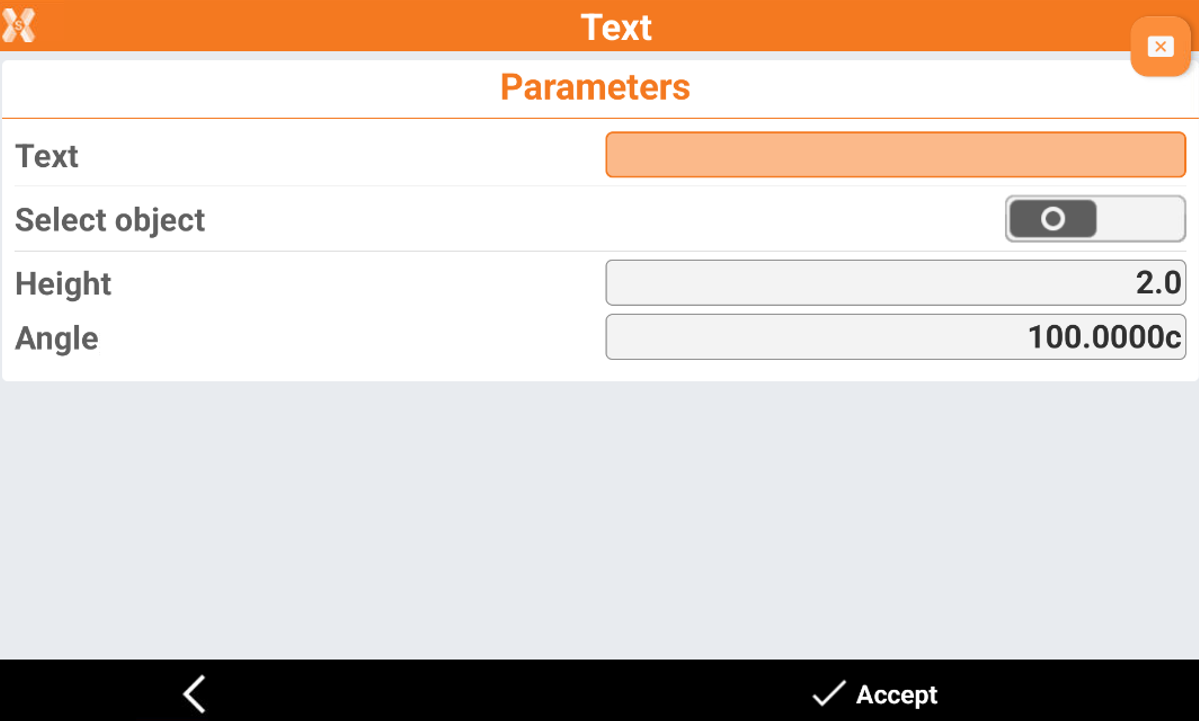

• The command opens a new window.



  • Text: the text to enter.

  • Select object: allows to select an object in CAD where to enter the text; the entered text will be aligned to the object. Deselect this field to enter the text in a specific CAD position.

  • Height: the height of the text.

  • Angle: if select object is deactivated, allows to enter the text direction.

• Click Accept to enter the text in CAD.
