TPS Basic application

| |

• If the current profile is related to a total station, a window to perform simple measurements without saving data can be opened from main menu at every moment.

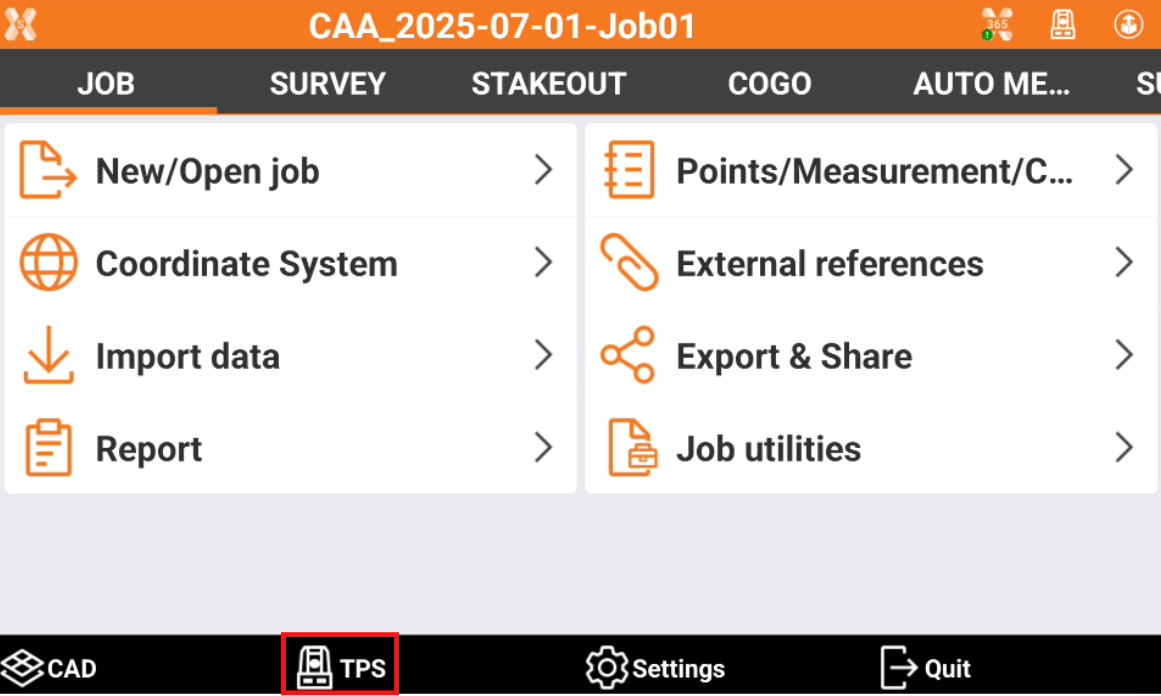

• To open the TPS Basic application from the main menu click TPS.

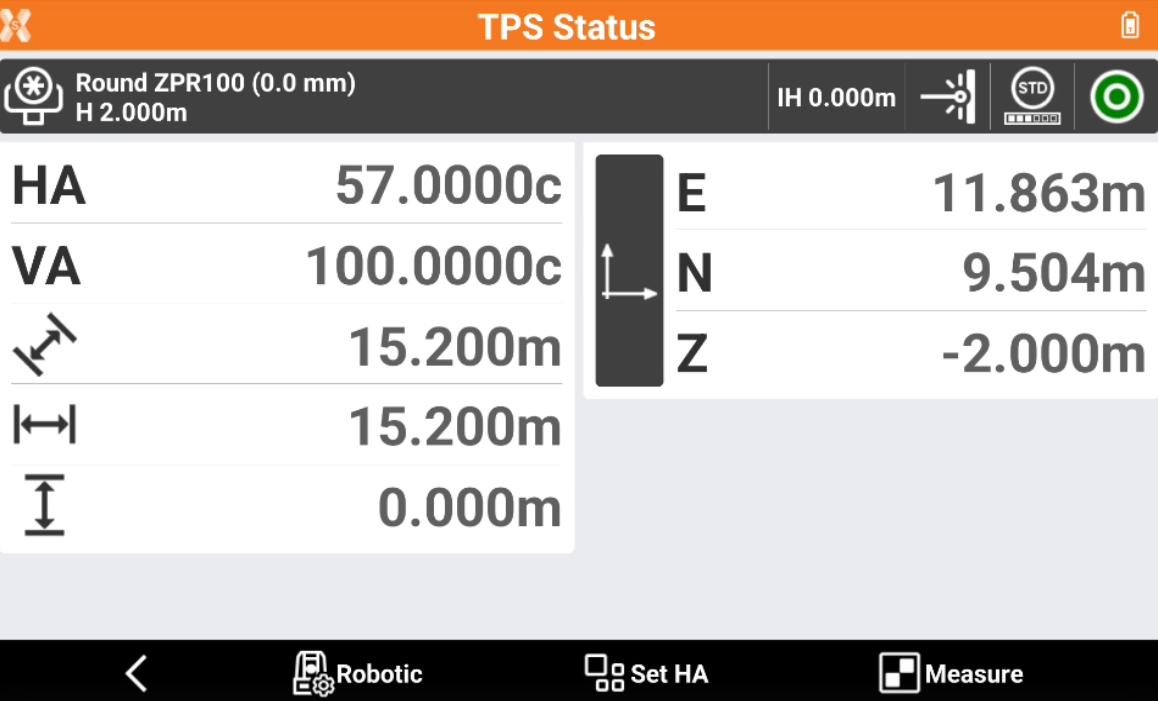

• This opens the TPS Status page.



• The bottom toolbar has the following functions:

  • Robotic/TPS : access to the control panel of the robotic total station or access to the control panel of the mechanic total station.

  • Set HA : setting of an horizontal angle for the station.

  • Measure : starting measurements. At the end of the measurements, the distances measured are reported in the corresponding fields.

• In the upper part of the window, a panel allows to access to other functions to control the total station.

  • : the current type of target. Tap to access a window that allows to change the type of target and the target height.

  • : the instrument height. Click to change height.

  • : enables/disables the red laser pointer.

  • : changes the EDM measurement mode (standard, fast, tracking).

  • : opens the e-bubble.

• After a measurement is performed the software shows different results:

  • HA: horizontal angle.

  • VA: vertical angle.

  • : sloped distance.

  • : horizontal distance.

  • : vertical distance.

  • ENZ: point coordinate in East, North and Elevation. Click on the bar to change to ΔE, ΔN, ΔZ.
