Visualize a point in CAD

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • From the topographic point list is possible to visualize its graphical position in the CAD with a single click.

  • Click Job.

  • Click Points/Measurements/Codes.

  • Open the Points tab.

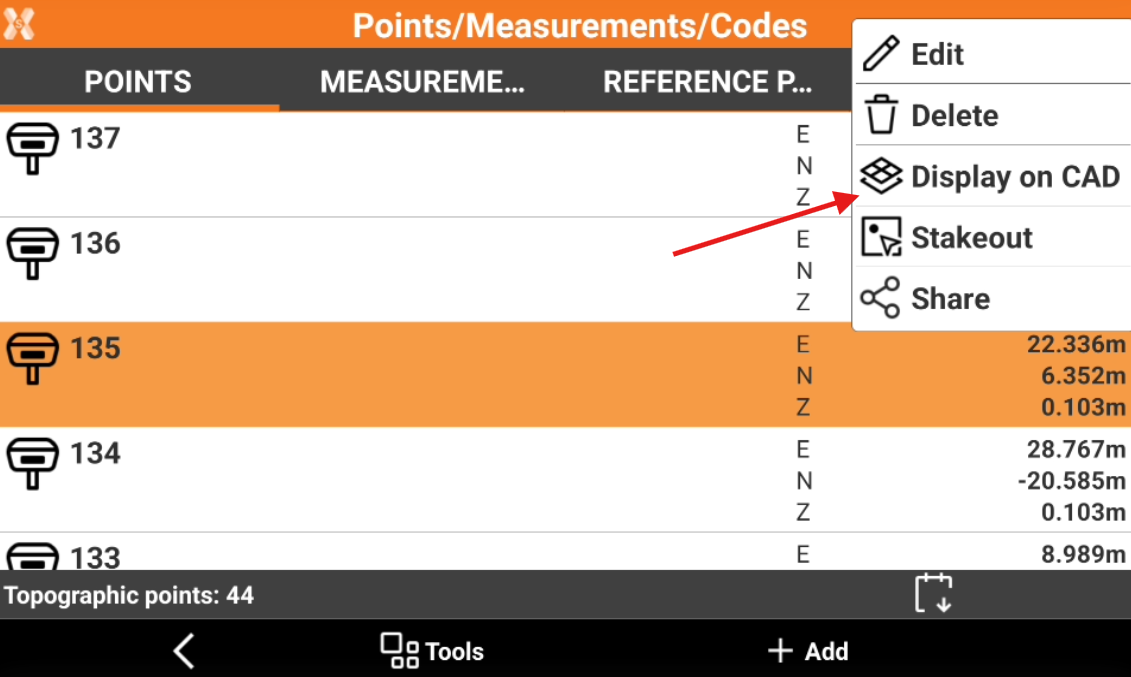

  • Select a point from the list and click Display on CAD.

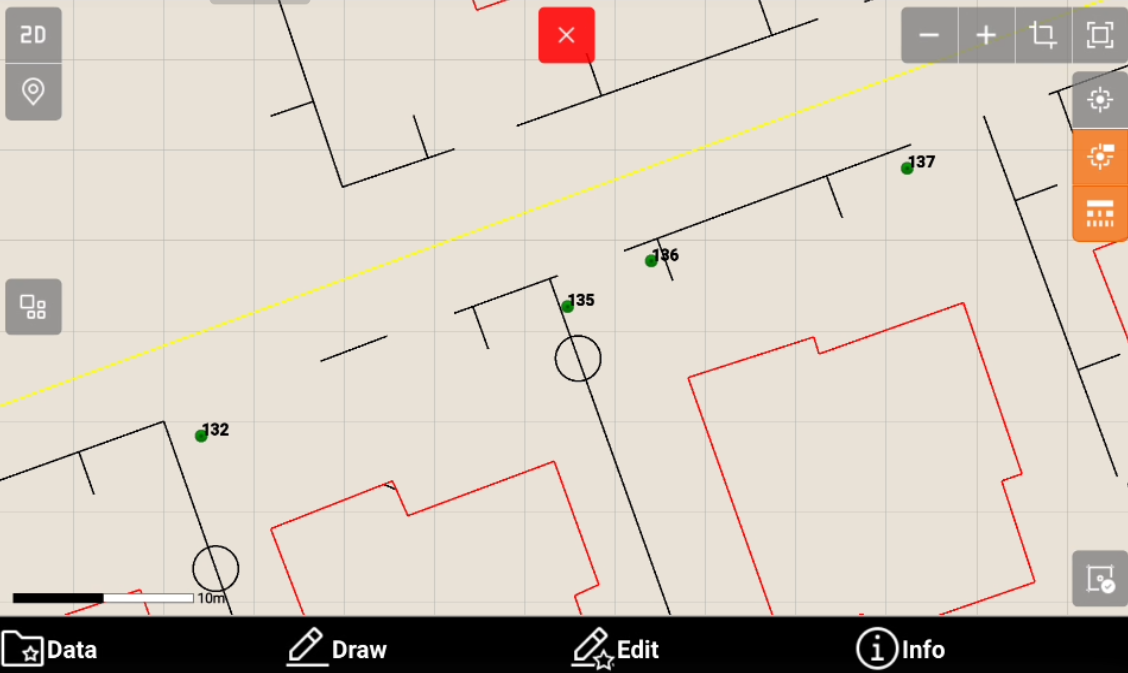

  • The CAD is opened and the point is visualized in the center of the graphic window.
