Working with a robotic total station

+ROBOTIC | + ROBOTIC | + ROBOTIC

• A robotic total station allows to work with one single operator with a total station, thanks to prism searching and tracking.

• The software has dedicated commands to search the prism.

• When working in a software application with a robotic total station, the software shows the Robotic control panel.

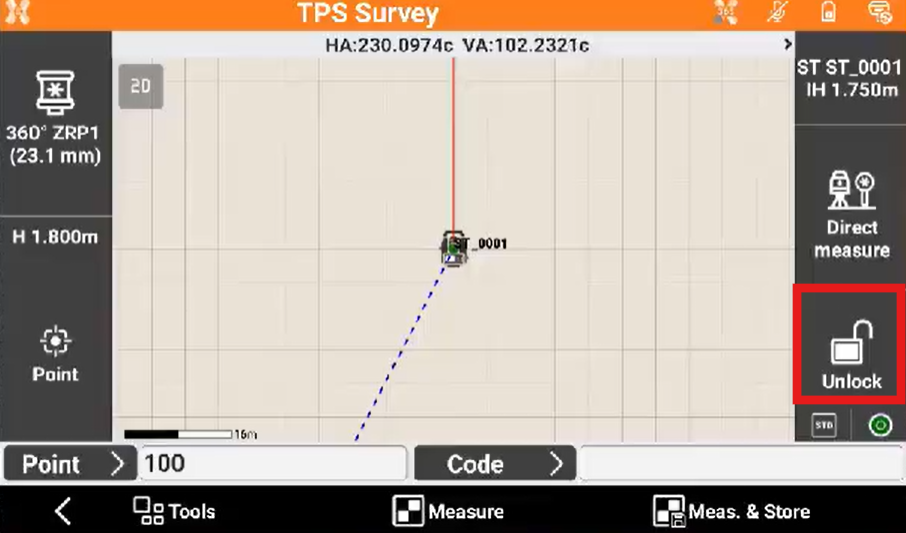

• If the prism is not locked, the software shows the status Unlock.

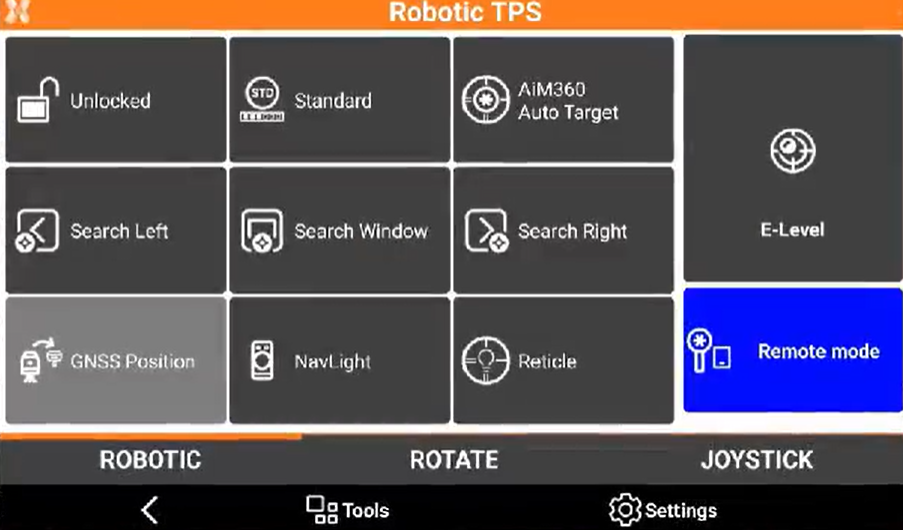

• Click the icon to open the Robotic control panel.



• Click Unlock to perform a prism search, or select one of the other search function:

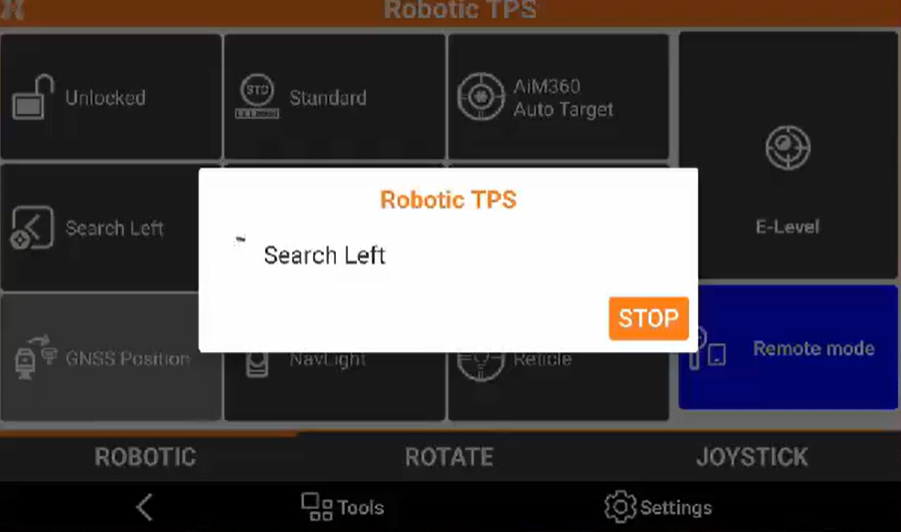

  • Search Left: to search a prism on the left.

  • Search Right: to search a prism on the right.

  • Search Window: to search a prism within the search window. Requires to define a search window.

  • GNSS Position: to search a prism using the GNSS position, for example in an X-POLE configuration.

• The instrument rotates and lock the prism.



• When prism is located, the instrument enters in tracking mode following the prism. The icon is now Lock.



• Now it is possible to measure.

When working with a robotic total station from pole side, the Remote mode has to be turned on.
