General preparation

Battery charging

Before using the receiver, the internal battery of Zenith06 should be charged. Connect the typeC data cable to the receiver and plug the adapter into an AC supply.
Do not disconnect from power until the battery LED is solid green, indicating that the battery is fully charged.

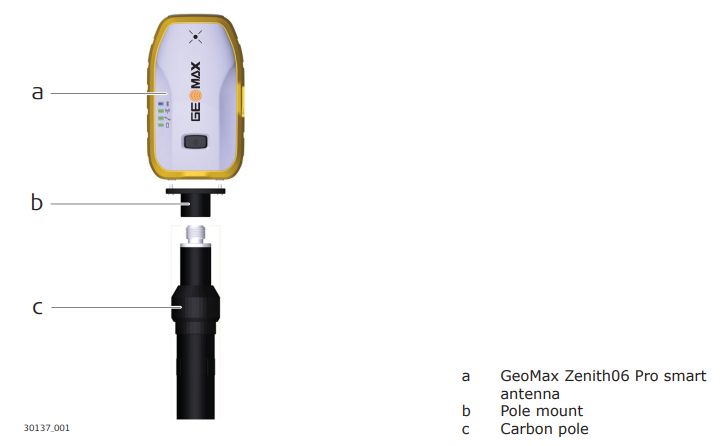

To work with Zenith06 Pro on a pole, the pole mount accessory has to be installed.
To attach the Zenith06 Pro smart antenna on the top of a pole, the pole mount adapter is required.

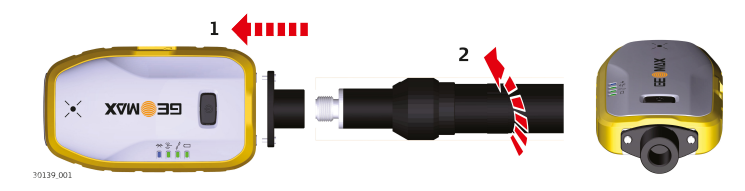

Use a slot screwdriver to fix the pole mount adapter with both screws to the Zenith06 Pro smart antenna. Make sure to fix the pole mount adapter in the correct orientation.
Screw the pole clockwise into the pole mount adapter.
