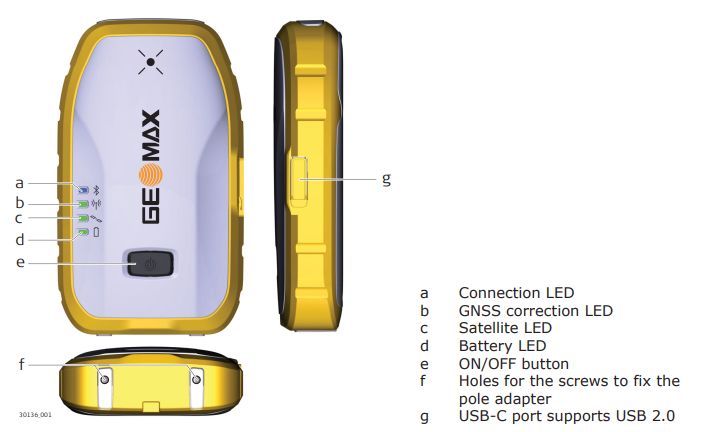

Instrument components

To turn ON and OFF the receiver press the ON/OFF button (e) for few seconds until the leds turn on.

The receiver has leds to indicate its status.

Led indicators:

• Connection LED (a) :

  • Solid blue: bluetooth is connected.

• GNSS correction LED (b) :

  • Solid green: the instrument is receiving correction data.

• Satellite LED (c) :

  • Solid green: the position is available.

• Battery LED (d) :

  • Green: normal operation.

  • Solid red: the power is < 10%.

  • Solid red: the battery is being charged.

  • Solid green: the battery is fully charged.
