Working with the bluetooth

• Zoom75/95 instruments can communicate with external devices by a Bluetooth connection. The instrument Bluetooth is a slave only. The Bluetooth of the external device will be the master, and therefore will control the connection and any data transfer.

• On the instrument, ensure that the communication parameters are set to Internal Bluetooth or Bluetooth Handle. Refer to ...

• Some devices ask for the identification number of the Bluetooth. The default number for a Zoom75/95 Bluetooth is 0000. This can be changed in the Toolkit inside the Communication page (see Settings).

Depending on the method to use for the connection, the BT name changes:

• If connection is done to internal bluetooth the BT name is Z95_xxxx

• If connection is done to long range BT handle the BT name is ZRT_xxx

The long range BT handle

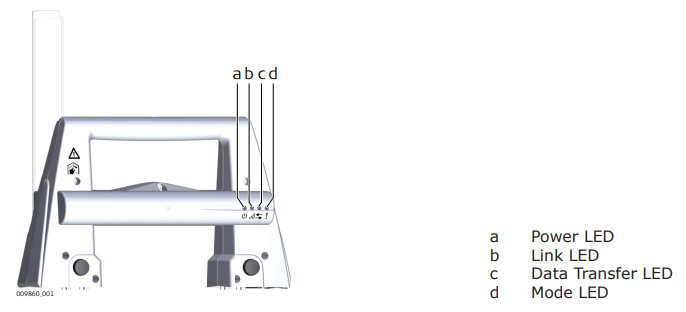

• The RadioHandle has Light Emitting Diode indicators. They indicate the basic RadioHandle status.



  • Power LED:

    • Off: power is off.

    • Green: power is on.

  • Link LED:

    • Off: no radio link to field controller.

    • Red: radio link to field controller.

  • Data Transfer LED:

    • Off: no data transfer to/from field controller.

    • Green or green flashing: data transfer to/from field controller.

  • Mode LED:

    • Off: data mode.

    • Red: configuration mode.
