Working with X-PAD software on field controller

• X-PAD Ultimate software is the field software for operating the Zoom75/95 remotely.

For more information on how to use X-PAD software refer to the dedicated help portal.

Create a Zoom75/95 profile on X-PAD Ultimate

• On X-PAD Ultimate, to create a profile for the Zoom75/95, click Settings.

• Click GNSS & Total stations.

• Click Add to create a new profile.

• Select Total station (TPS).

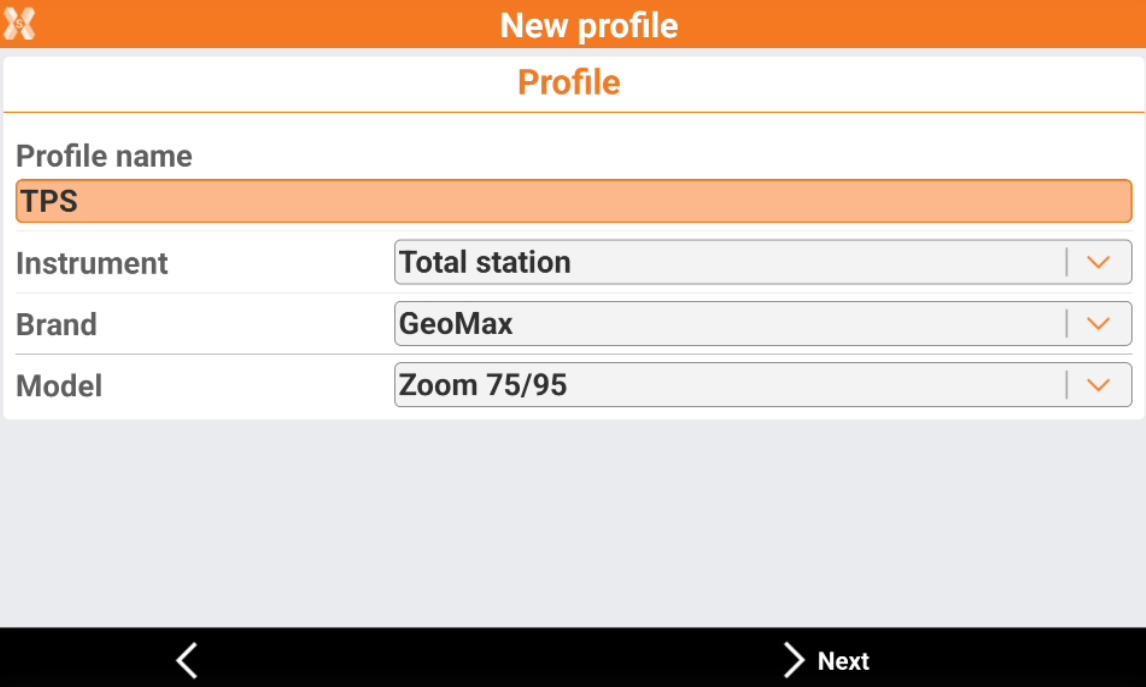

Profile page

• The Profile page allows to enter the information on the profile type and instrument connected.



  • Profile name: name to assign to the profile

  • Brand: brand of the total station. Select GeoMax.

  • Model: model of the total station. Select Zoom75/95.

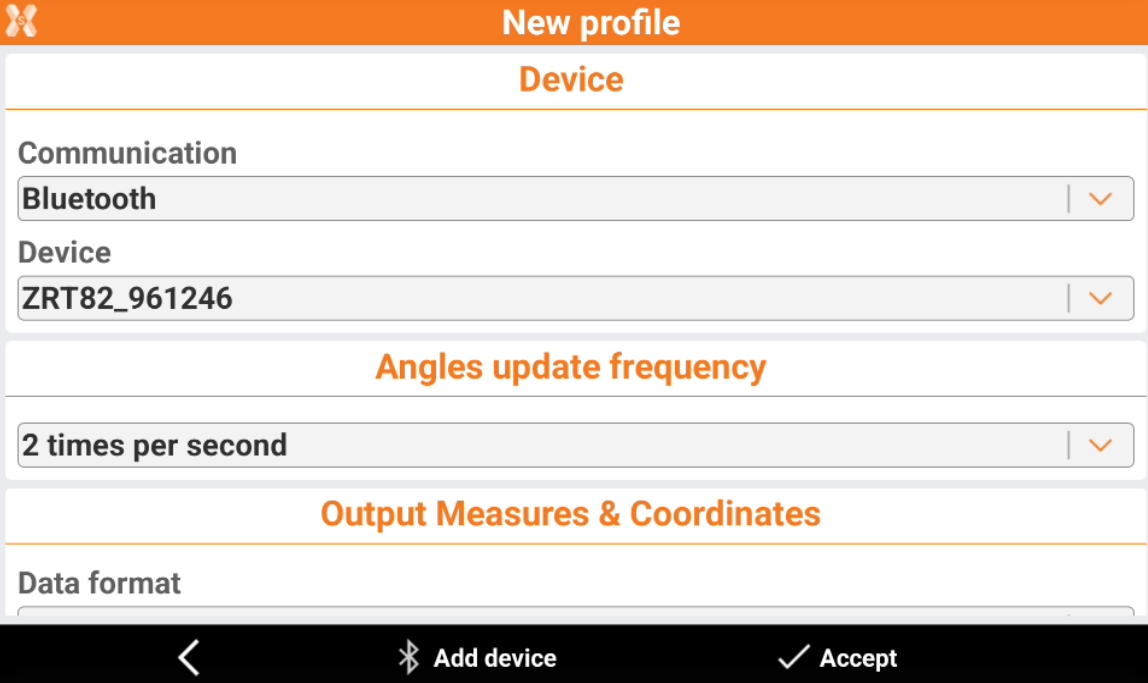

Device page

• The Device page allows to define how the total station is connected to the software and search the instrument using the bluetooth.



  • Communication: the communication method to the total station

  • Device: name of the Bluetooth to connect.

• To start a search in case the instrument is not in the list, click Add device.

When connecting to Zoom75/95, select ZRT82_xxxxxx device to connect to long range Bluetooth handle or Zoom95_xxxxxx to connect to internal Bluetooth.

Angle update frequency page

• Angles update frequency: frequency with which the value of the angles is updated.

On Zoom75/95 it is recommended to select 5 times per second to increase the responsiveness to all commands

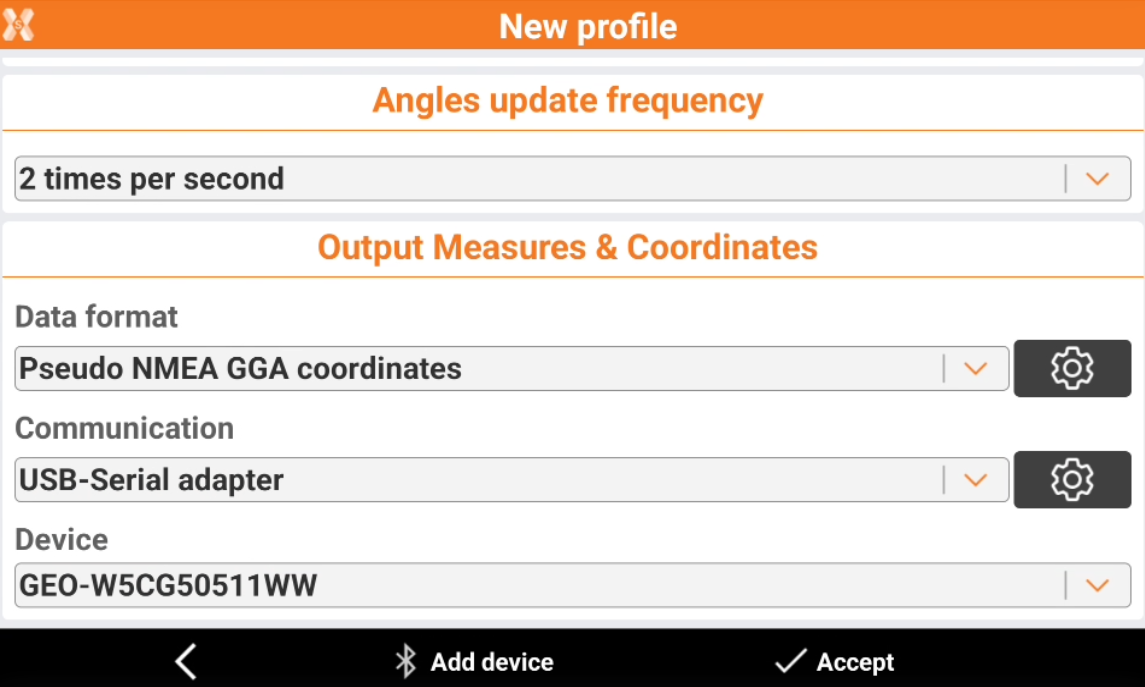

Output measures & coordinates page

• These options allows to use the total stations together with other devices, for example ground penetrating radars or echosounders.

• See Data streaming from robotic total station for a step-by-step guide on how make the connection.

• These parameters allows to stream out the data measured from the total station from the controller to another device, using Bluetooth or a USB-serial adapter.



  • Format: send out measurements and/or the coordinates in real time in the selected format.

  • Communication: the communication method

  • Device: in case bluetooth is the current communication, select here the device where to stream the data. Click Add device to search for bluetooth devices.
