Data streaming from robotic total station

This guide explains how to configure the software to stream out different data (GSI, NMEA GGA, coordinates, etc…) using the serial cable or bluetooth from a robotic total station.
In this configuration the coordinate measured by total station is continuously streamed out and can be used by 3th party applications (for example machine control systems).
The data is streamed out from the field controller, connected by bluetooth to the total station.

Data streaming by Bluetooth

In this paragraph we will explain on how to stream data from a robotic total station to a Windows computer on a COM port using Bluetooth connection.
First step is to configure the total station profile to stream the data on Bluetooth.
Open Settings.
Click GNSS & Total stations and create or edit the robotic total station profile.

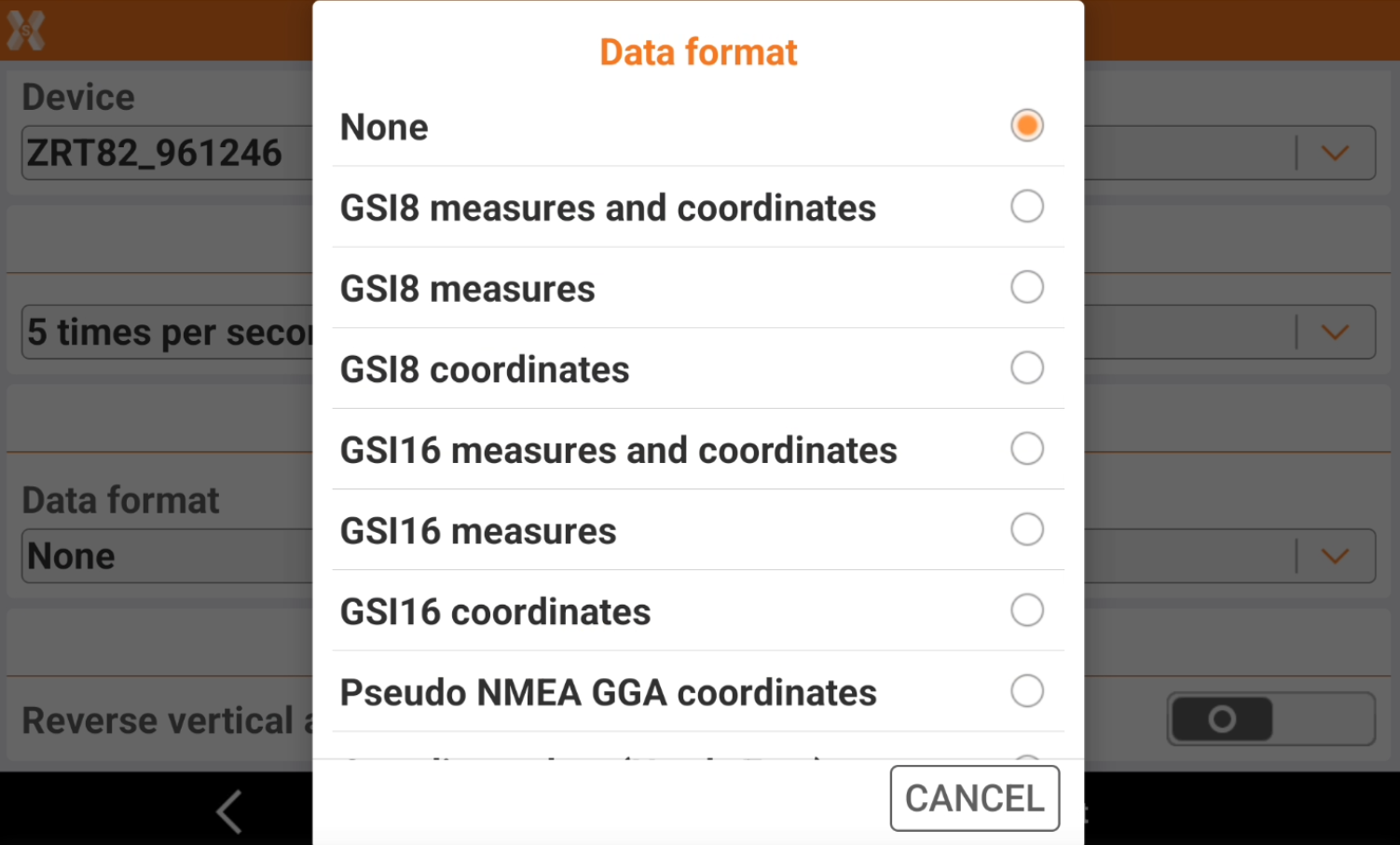

In Output Measures & Coordinates select the data format to output.
In Communication select the communication method. Select Bluetooth.
If selected data format is Pseudo NMEA GGA, click to change the number of decimals and the identifier for the fix solution.

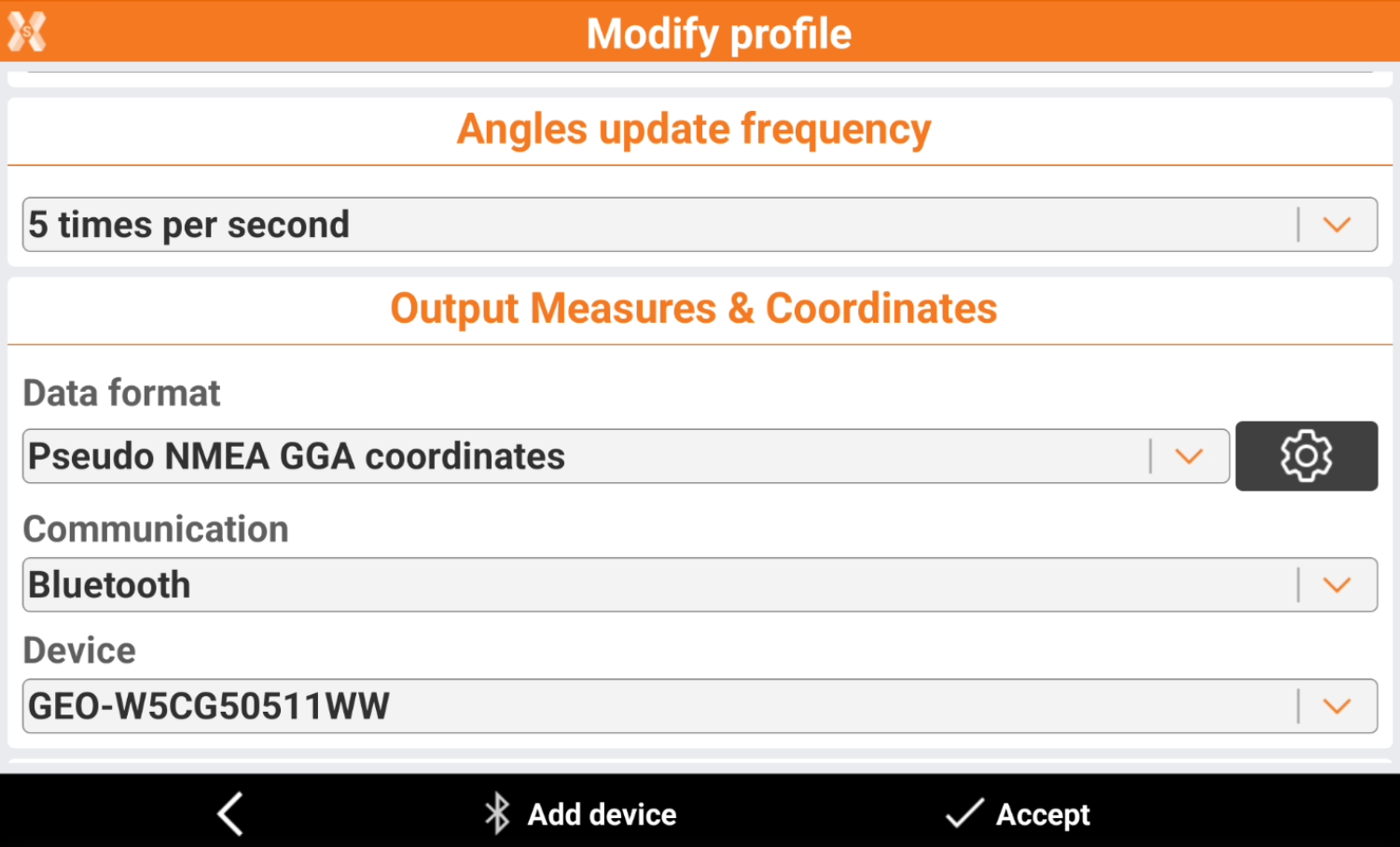

In Device select the device, connected by Bluetooth, where to stream the data. In our case it is a Windows computer. If the device is not in the list click Add device to search and pair the device.
Click Accept to complete the configuration on X-PAD.
Since the computer will be connected to the tablet to get the streaming, the next step is to open a COM port on the Bluetooth connection.

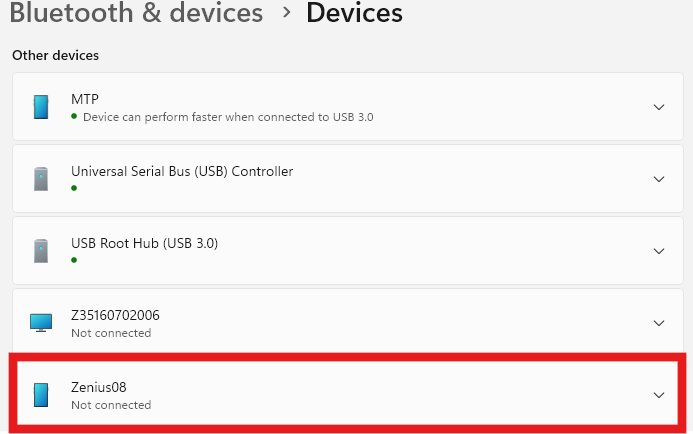

In Windows search and pair the field controller by Bluetooth.

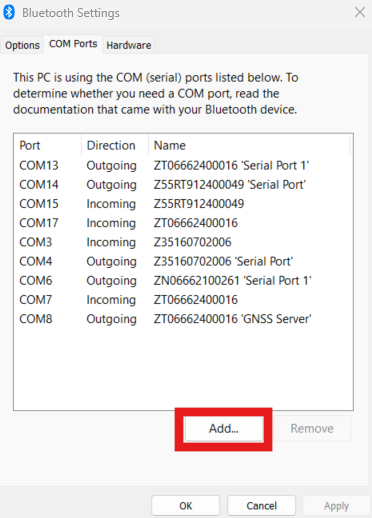

In Windows click More Bluetooth settings and click Add.

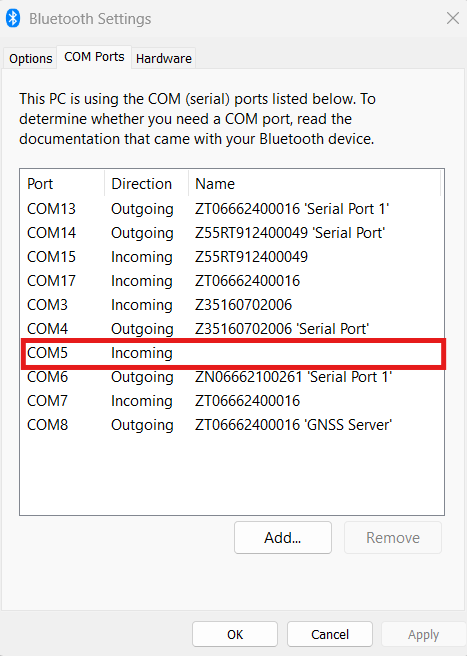

Select to create a new Incoming port. Click OK. Note the COM port created.
Open a job in X-PAD and open TPS Basic application or Survey Points application.

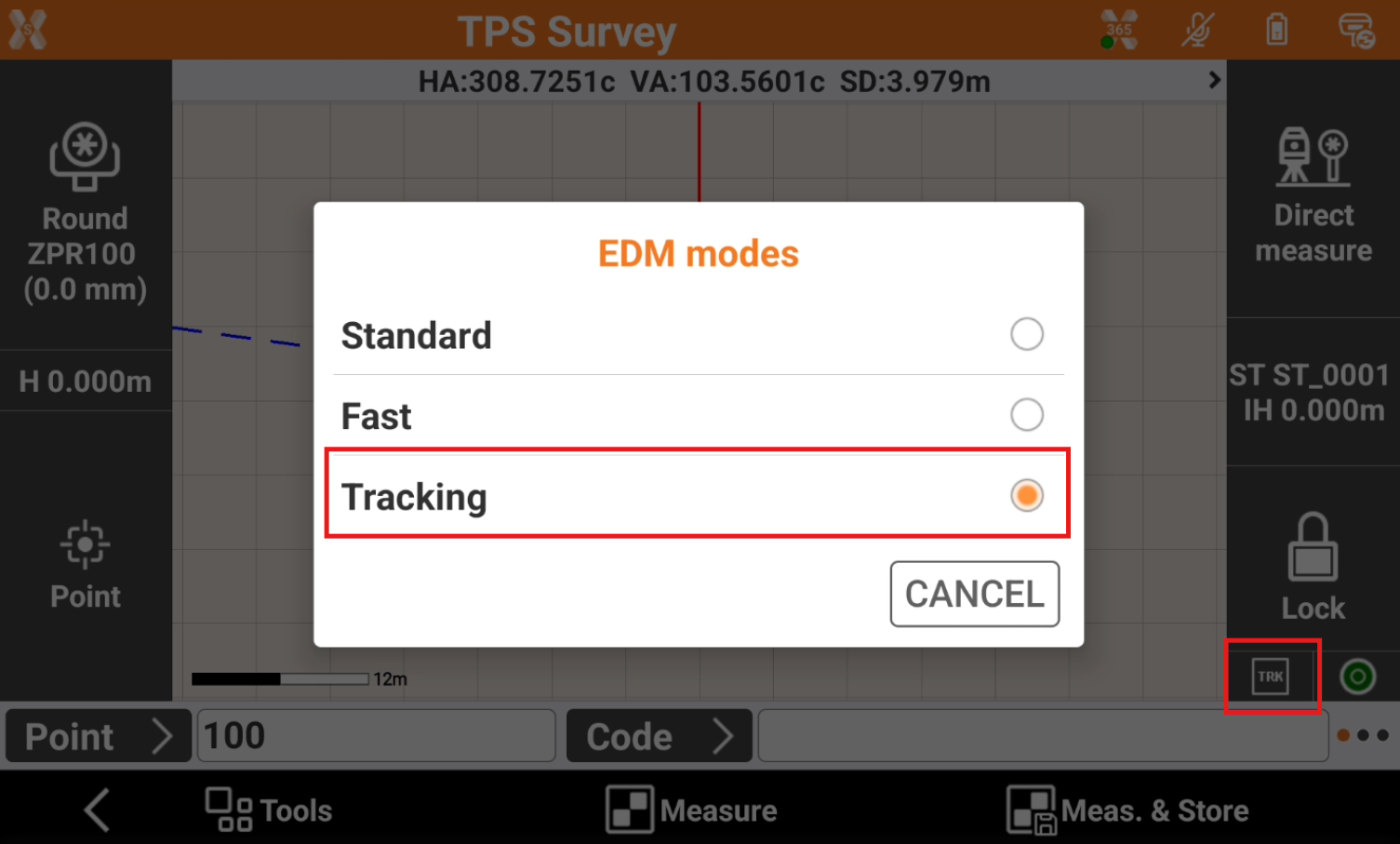

Select the EDM Mode as Tracking.
Press Measure to start to measure the target in tracking mode. It is necessary to measure the point in tracking mode, in order for the total station to have the point coordinate.

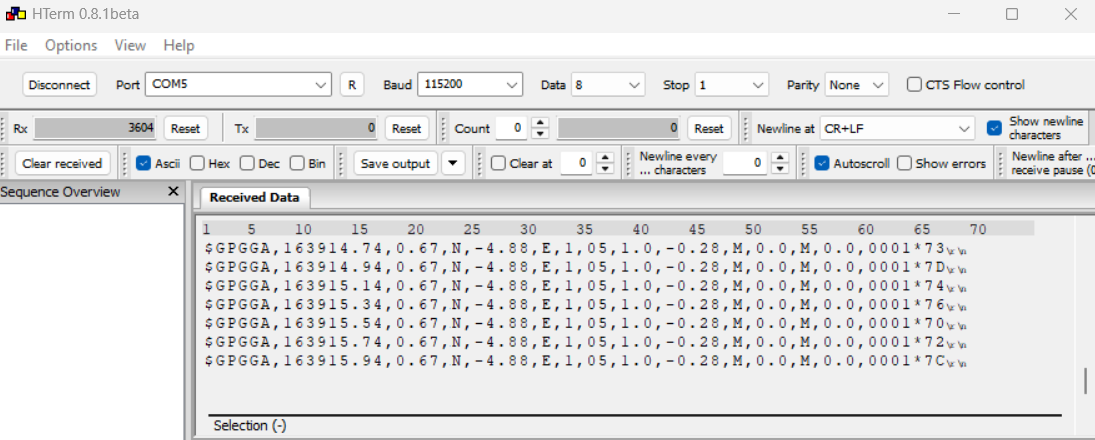

Open the 3th party application and connect to the previously created Bluetooth incoming COM port to start to receive the data.

Data streaming by cable

Data streaming by Bluetooth

In this paragraph we will explain on how to stream data from a robotic total station to a Windows computer on a COM port using a serial cable.
First step is to configure the total station profile to stream the data on serial cable.
Open Settings.
Click GNSS & Total stations and create or edit the robotic total station profile.
In Output Measures & Coordinates select the data format to output.
If selected data format is Pseudo NMEA GGA, click to change the number of decimals and the identifier for the fix solution.

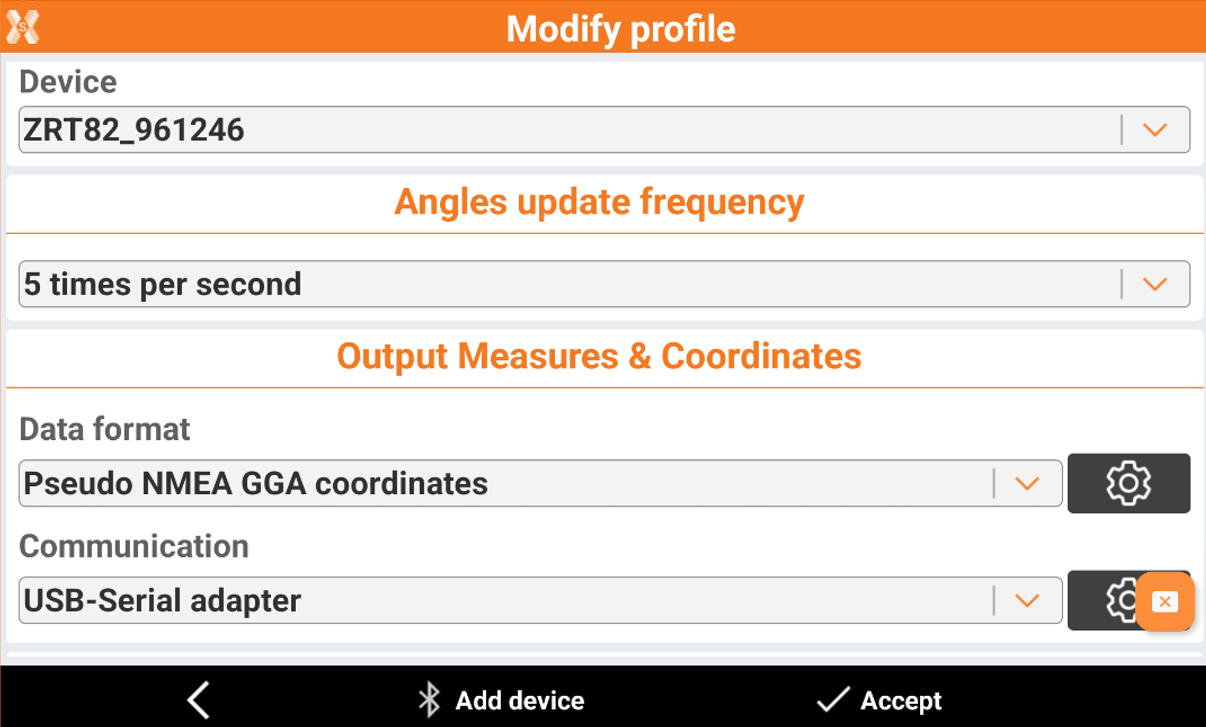

In Communication select the communication method. Select USB-Serial adapter.

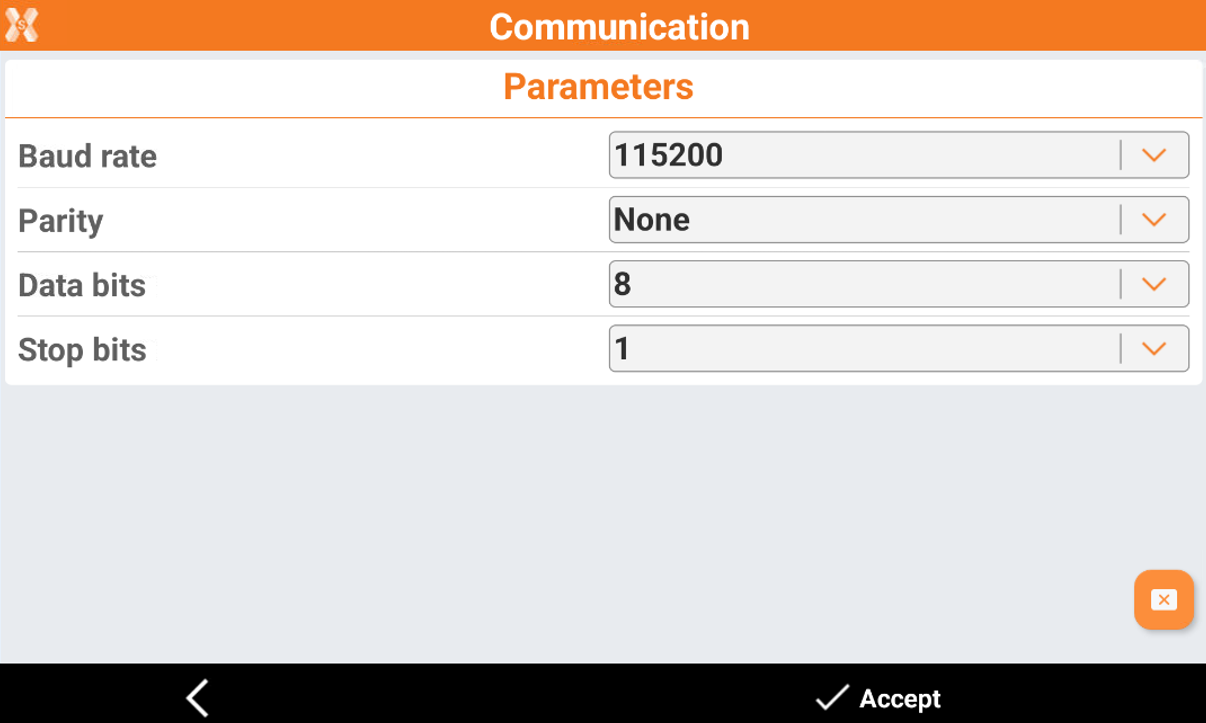

Click to change the serial connection parameters.
Click Accept to complete the configuration on X-PAD.
Since the computer will be connected to the tablet to get the streaming using serial cable, open Device Manager and check the COM port to use. Check that the baud rate is the same baud rate selected in X-PAD.
Open a job in X-PAD and open TPS Basic application or Survey Points application.
Select the EDM Mode as Tracking.
Press Measure to start to measure the target in tracking mode. It is necessary to measure the point in tracking mode, in order for the total station to have the point coordinate.
Open the 3th party application and connect to the COM port to start to receive the data.
