The creation of a group of sections is required to allow the program to store the sections and profiles.
You can create a subproject of Alignments & cross sections in the following ways:
-
Click Alignments & x-sections.
-
Click New Sections group.
-

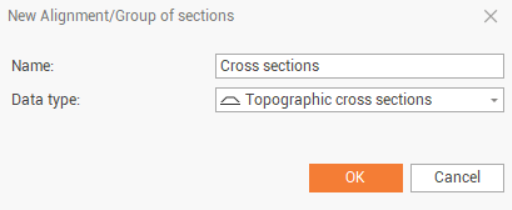

This command opens a new window.
-
Enter the sections group name.
-
Select the type of cross sections:
-
Alignment: see Alignments .
-
Topographic cross sections: topographic cross sections are vertical cross sections along a direction and cut completely the model in vertical. Allows to create Topographic and Long profile sections.
-
Generic cross sections: cross sections that can cut the model on a vertical, horizontal or sloped plane. Allows to create Horizontal, Vertical and By 3 points sections.
-
-
Click OK.
-
The subproject that you create will become the active Alignments & cross sections.
-
The subproject created will become the active subproject of category Alignments & cross sections.
