Defining the prism search area

+ROBOTIC | + ROBOTIC | + ROBOTIC

• The software allows to define an area where search for the prism.

• Open Robotic TPS page.

• Click Settings to open the Advanced settings page.

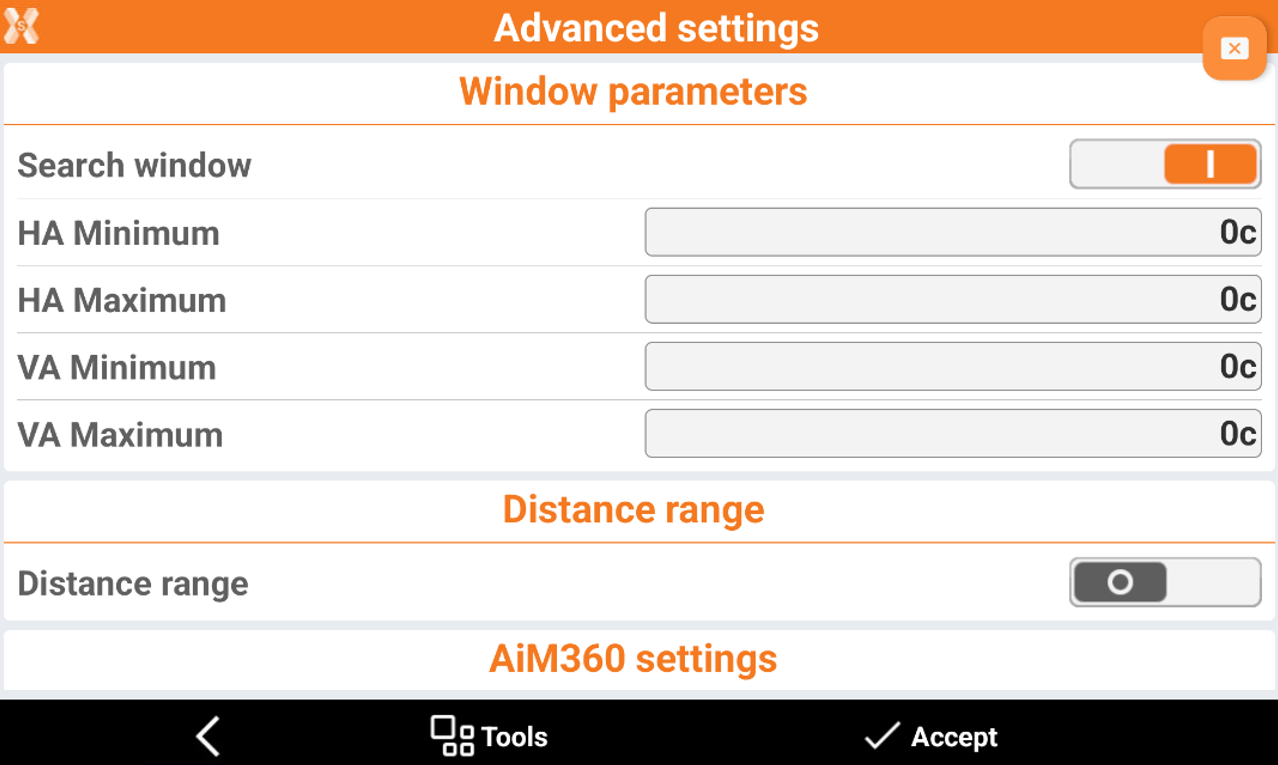

• It is possible to define the search window manually or using the instrument

Search window manual definition

• It is possible to define the search window manually entering the angles.

  • Search window: activates to allow the prism search only inside the defined window.

  • HA Minimum: horizontal angle defining the left limit of the search zone .

  • HA Maximum: horizontal angle defining the right limit of search zone.

  • VA Minimum: vertical angle defining the lower limit of search zone.

  • VA Maximum: vertical angle defining the upper limit of search zone.

• Define the distance limits:

  • Distance range: activate to limit the search inside distance limits.

  • Dist. Minimum: minimum distance of the search.

  • Dist. Maximum: maximum distance of the search.

Search window definition with instrument

• Click Tools to open the window search tools:

  • Define window: aim to the lower left of the search window and then to the upper right. Then the search window angles are automatically defined.

  • Show window: check the defined search window.

  • New center: specify a new center for the search window.
