GPS Status tools

| |

• From the GNSS Status window, it is possible to edit parameters of the receiver operation.

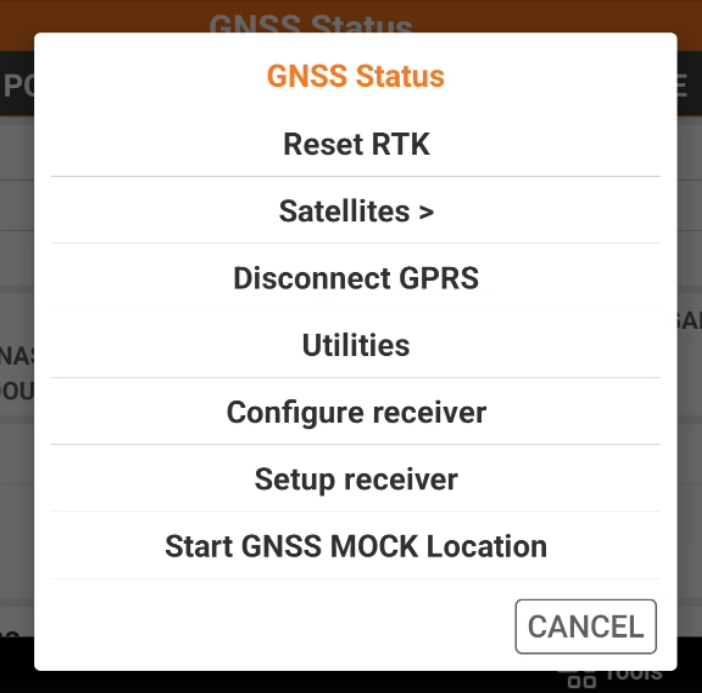

• Click Tools to open the list of available tools.



Reset RTK

• The command is used to force the receiver to re-initialize the calculation of the position. RTK received corrections are reset.

• Click Tools.

• Click Reset RTK.

To quickly reset of the RTK corrections and force the receiver to re-initialize the position, double tap for a longer while on the GNSS status.

Change satellites tracking parameters

• The command is used to activate and deactivate the use of satellites constellations and change the satellite cut-off.

• Click Tools.

• Click Satellites.

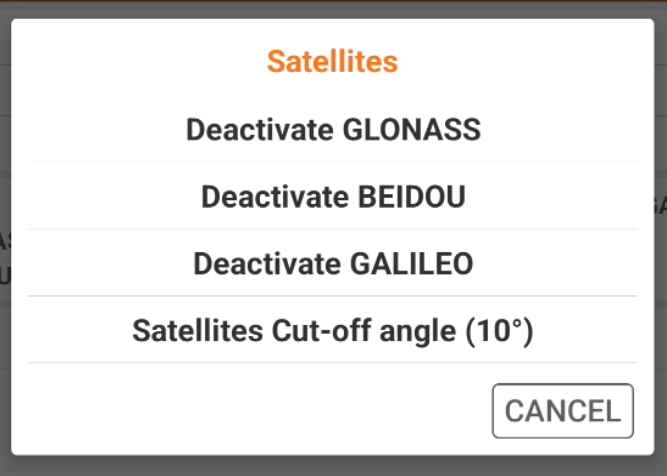

• Select the options to enable/disable the constellations and change the satellite cut-off angle.



Connecting and disconnecting GPRS

• The command is used to connect or disconnect the GPRS when the receiver is configured as network rover.

• Click Tools.

• Click Connect GPRS to connect the receiver in internet.

• Click Disconnect GPRS to disconnect the receiver from internet.

To quickly connect and disconnect, tap for a longer while on the GNSS status.

Start NMEA streaming

• The command is used to start to stream the NMEA messages from the receiver to be used by other devices, for example as echosounders or georadar, and by external software.

• Click Tools.

• Click Utilities and select NMEA output.

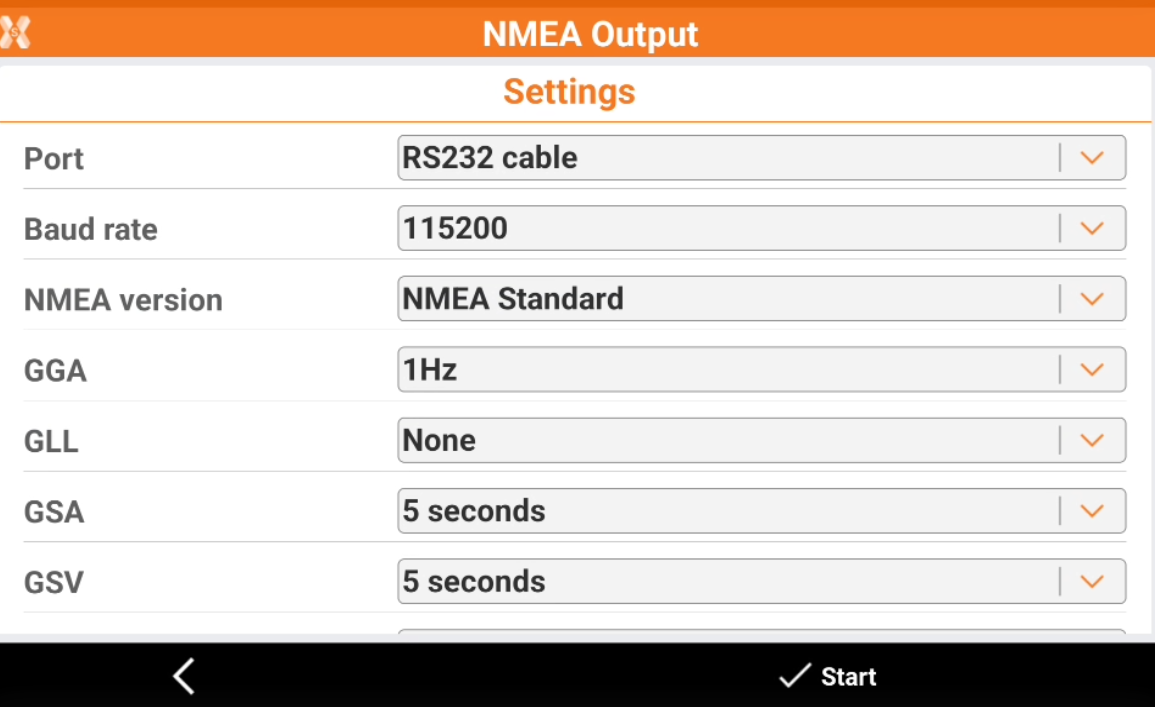

• The software opens a new window.



  • Port: the connection to be used to stream the NMEA messages (RS232 cable, bluetooth, USB cable).

  • Baud rate: the connection baud rate.

  • NMEA version: the version of NMEA to use.

  • NMEA messages: select for each standard NMEA message the output rate. Select None to not stream the selected message.

• Click Start to start to stream the NMEA messages.

Reconfiguring the receiver

• The command is used to reconfigure the GNSS receiver using the current instrument profile.

• Click Tools.

• Click Configure receiver.

Setup receiver

• The command is used to modify the current instrument profile (see Instrument settings ).

• Click Tools.

• Click Setup.

• The software opens the windows to modify the current instrument profile.

Managing files

• Displays all files with raw data present in the receiver memory. Select or deselect files to be copied to the controller memory.

This command is available for some GNSS models.

• Click Tools.

• Click File Manager.

Changing radio channel

• If the receiver is configured with the UHF, it is possible from here to change the radio channel.

• Click Tools.

• Click Change radio channel.

• Modify the number of the channel used by the receiver radio.

Stopping raw data log

• If the receiver is currently logging raw data it is possible from here to stop the raw data logging.

• Click Tools.

• Click Stop raw data logging.

• The software stops recording of raw data by receiver.

Start GNSS MOCK Location

• This command starts the GNSS Mock location.
