Import a Trimble DC file

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • To load a file in Trimble DC format select Import data.

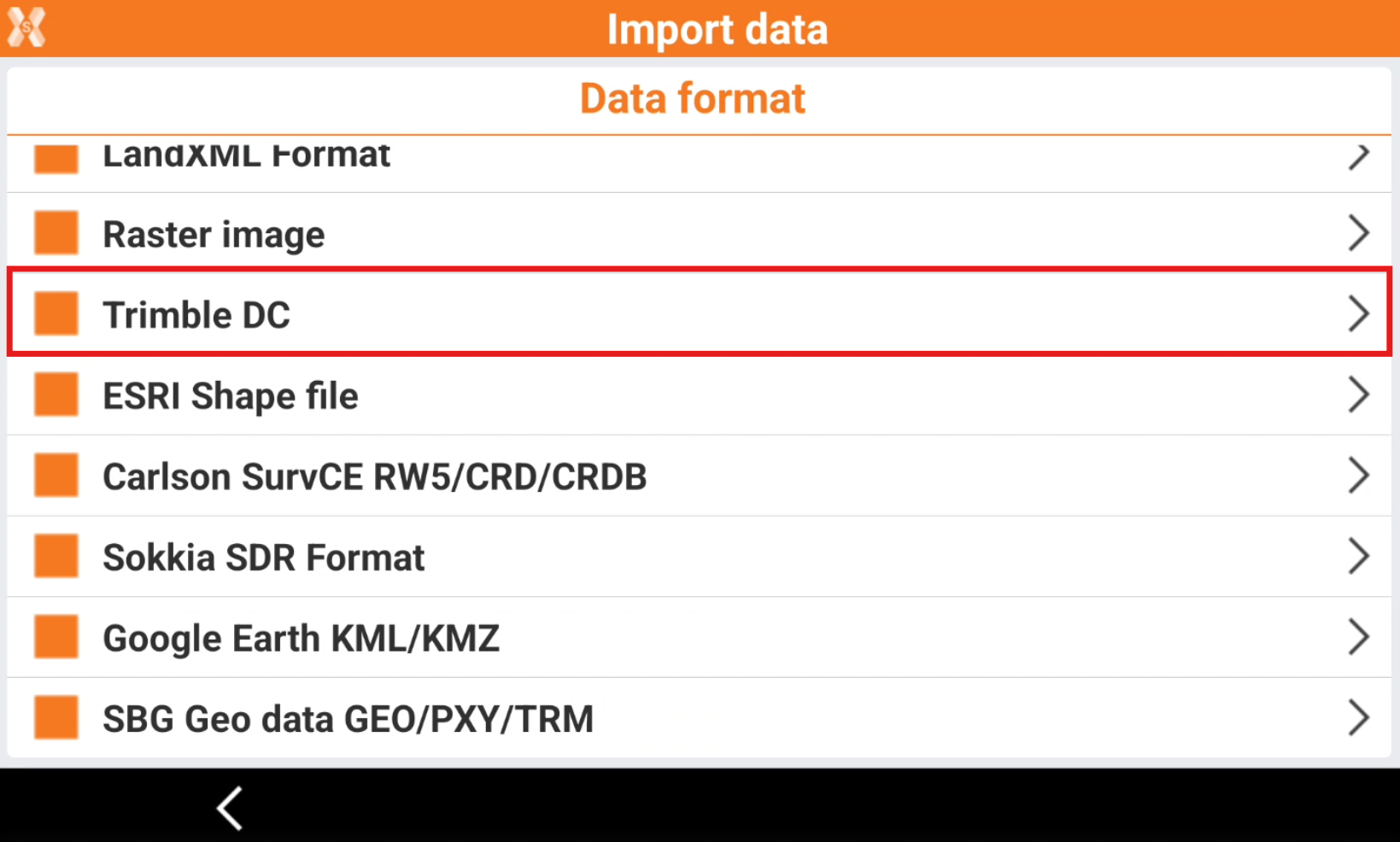

  • Click Trimble DC.


  • Select the file.

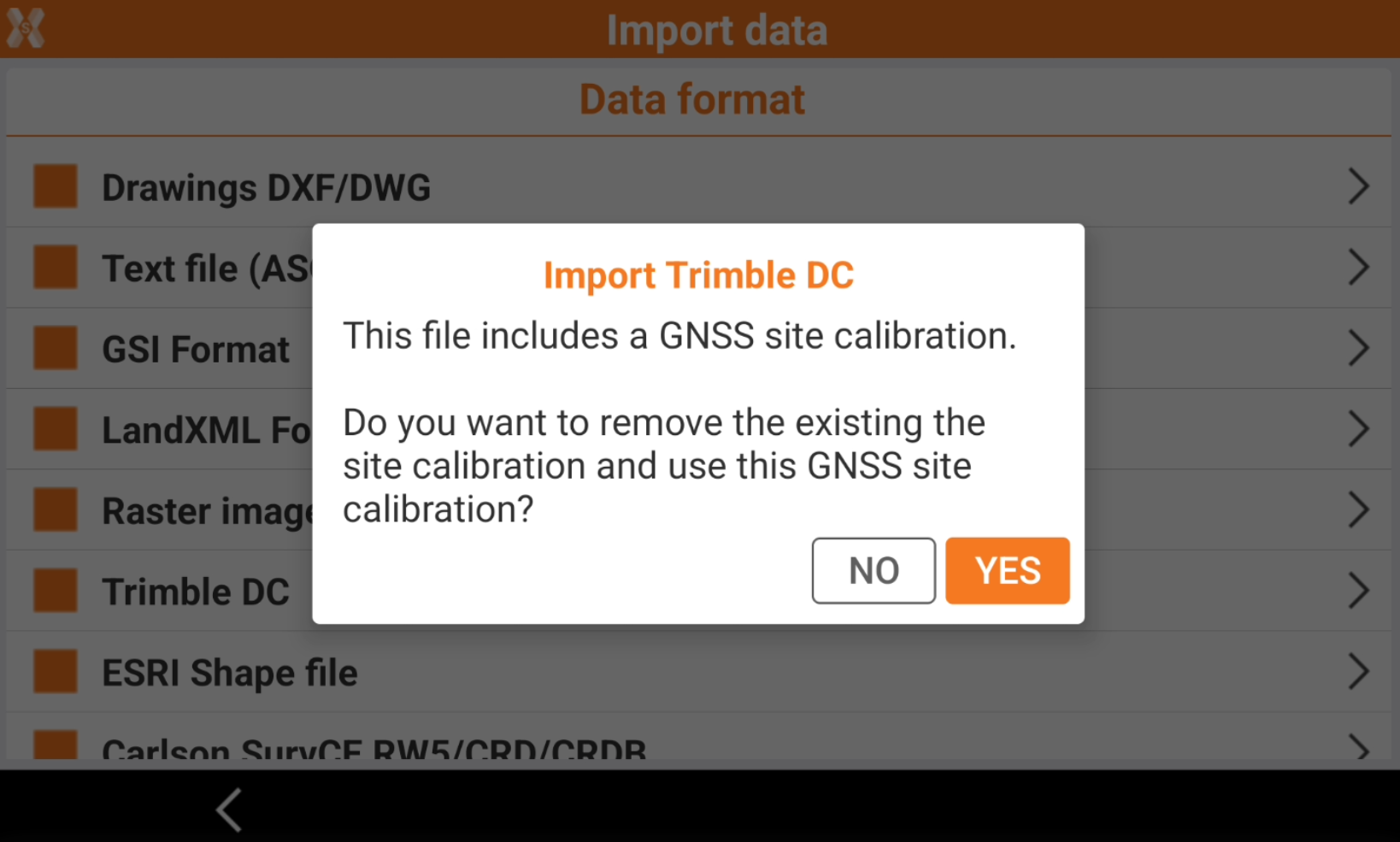

  • If the file includes a GNSS site calibration, confirm if to import or not the calibration. The calibration is available in Local system – site calibration.

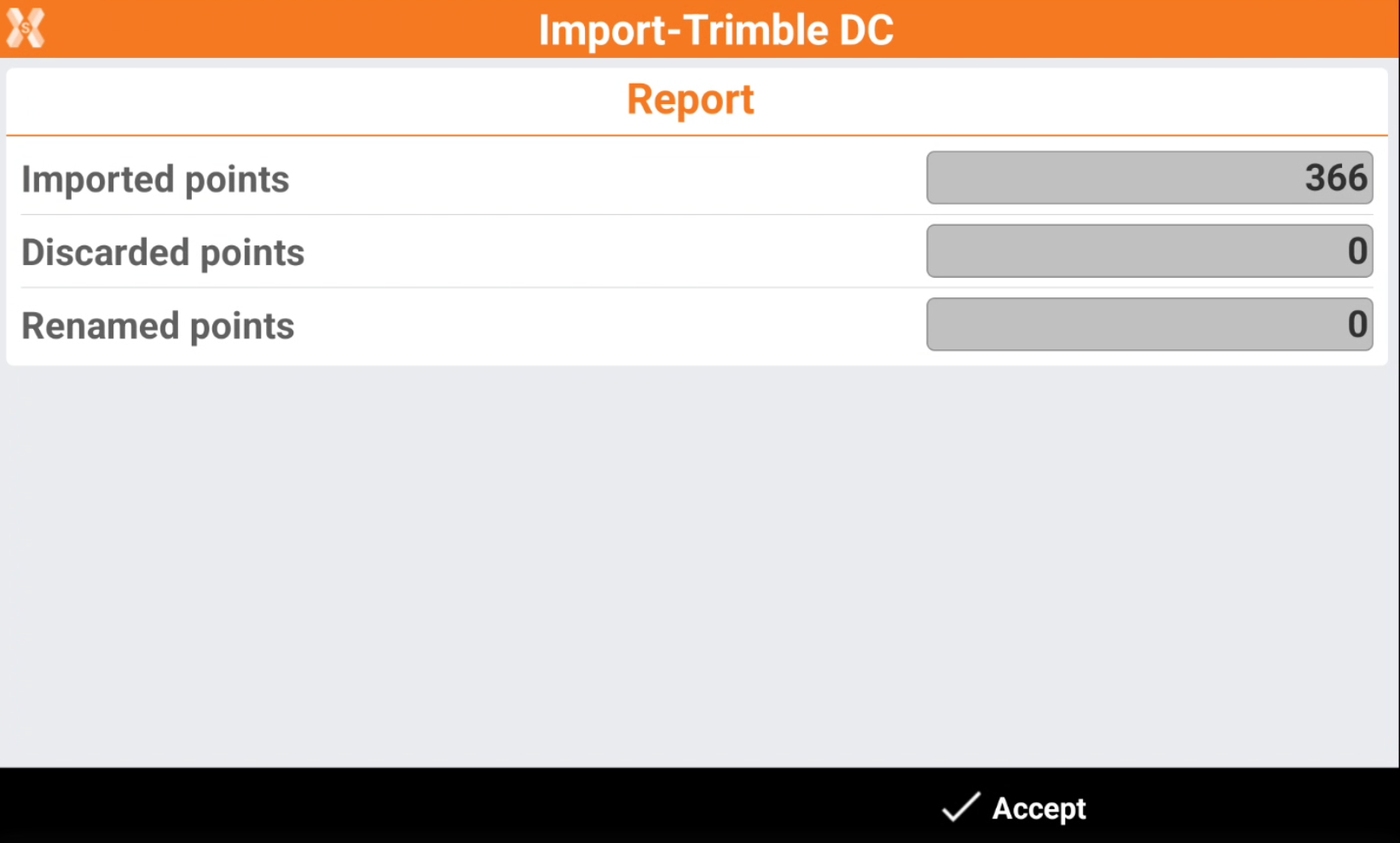

  • The software shows a report of the imported entities.


  • Click Accept.
