Linetypes manager

| |

• The software allows to change, import and edit linetypes assigned to the layers.

• From the Layer manager enter in the edit mode to open the Linetypes manager.

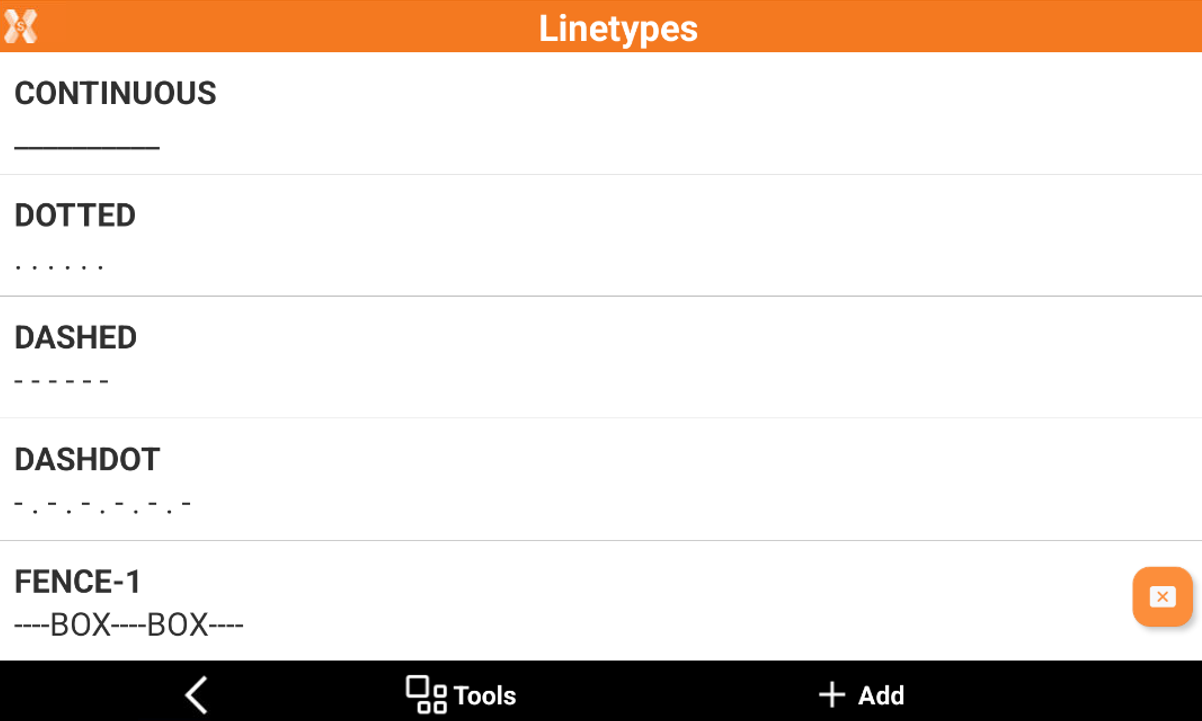

• This page shows the list of available linetypes.

Select a linetype

• To select a specific linetype for the current layer, click on the linetype to use.

• The linetype shows a preview of the line.

Import and export linetypes

• Linetypes can be imported and exported using the standard format LIN.

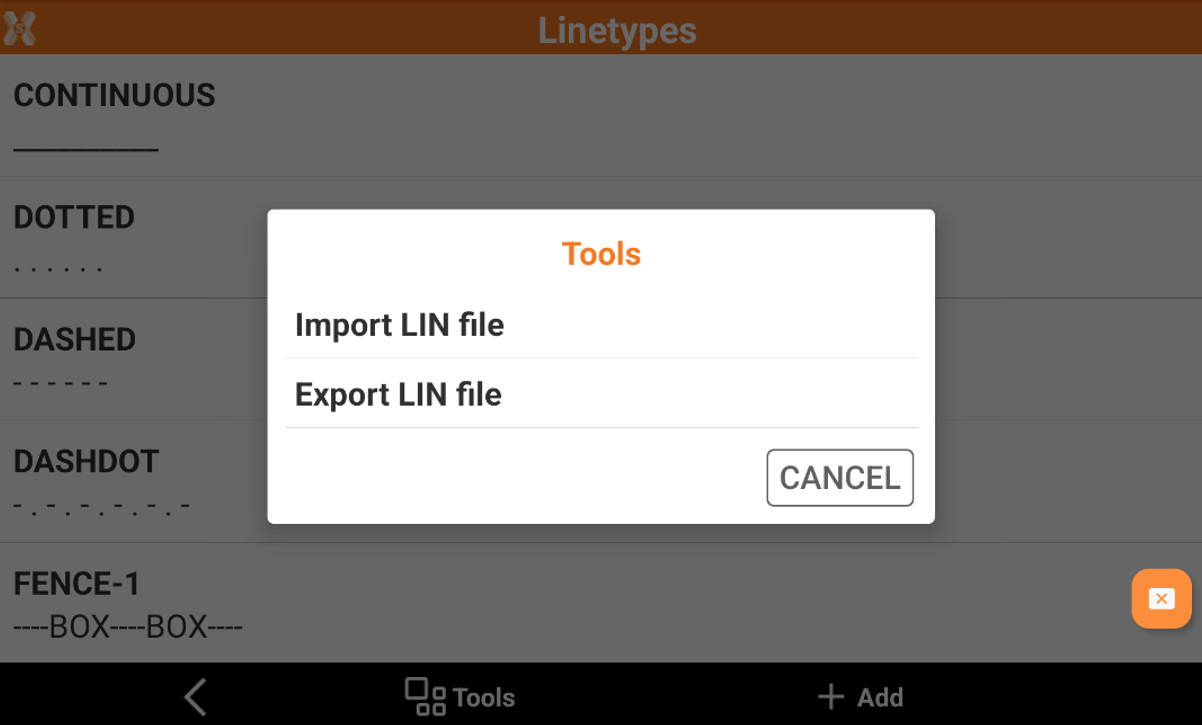

• Click Tools to import or export the linetypes in the LIN format.



Create a new linetype

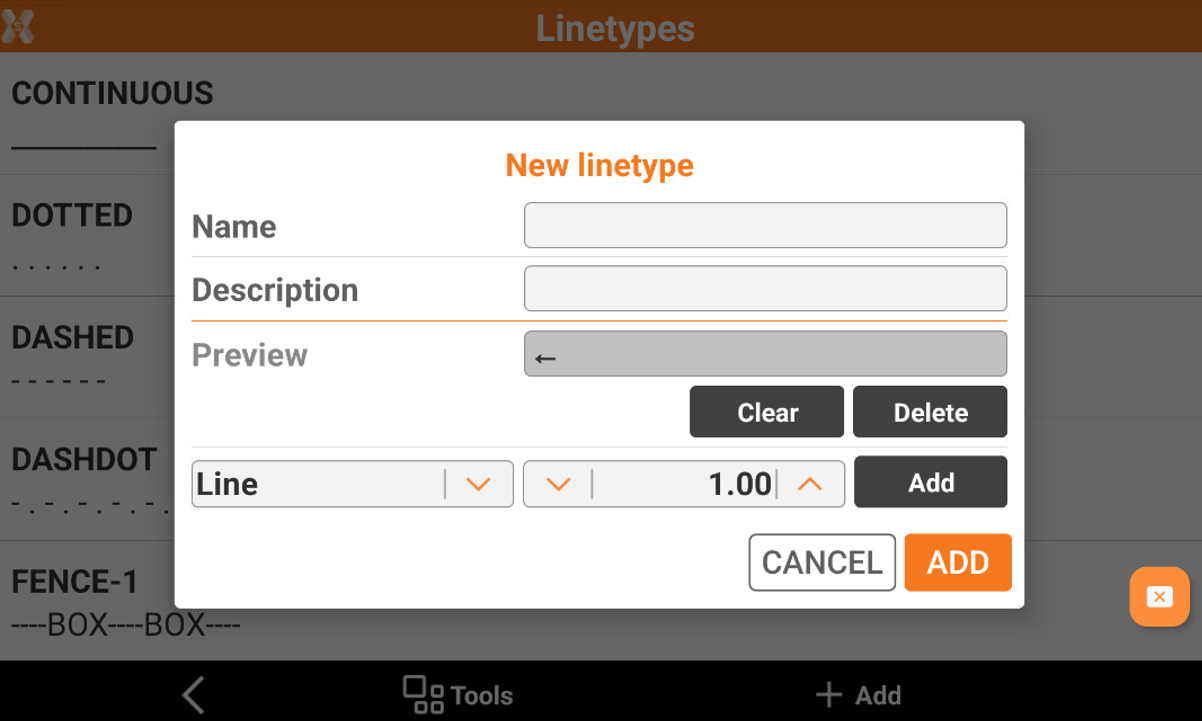

• To create a new linetype click Add. This opens a new window.



  • Name: the name of the new linetype.

  • Description: the description of the new linetype.

  • Preview: shows the linetype preview.

  • Add: to add a line part. It is possible to select how many parts to add.

    • Line: to add a line element.

    • Space: to add a space.

    • Point: to add a point.

    • Symbol: to add a symbol.

  • Clear: to delete all elements in the line.

  • Delete: to delete the last element added to the line.

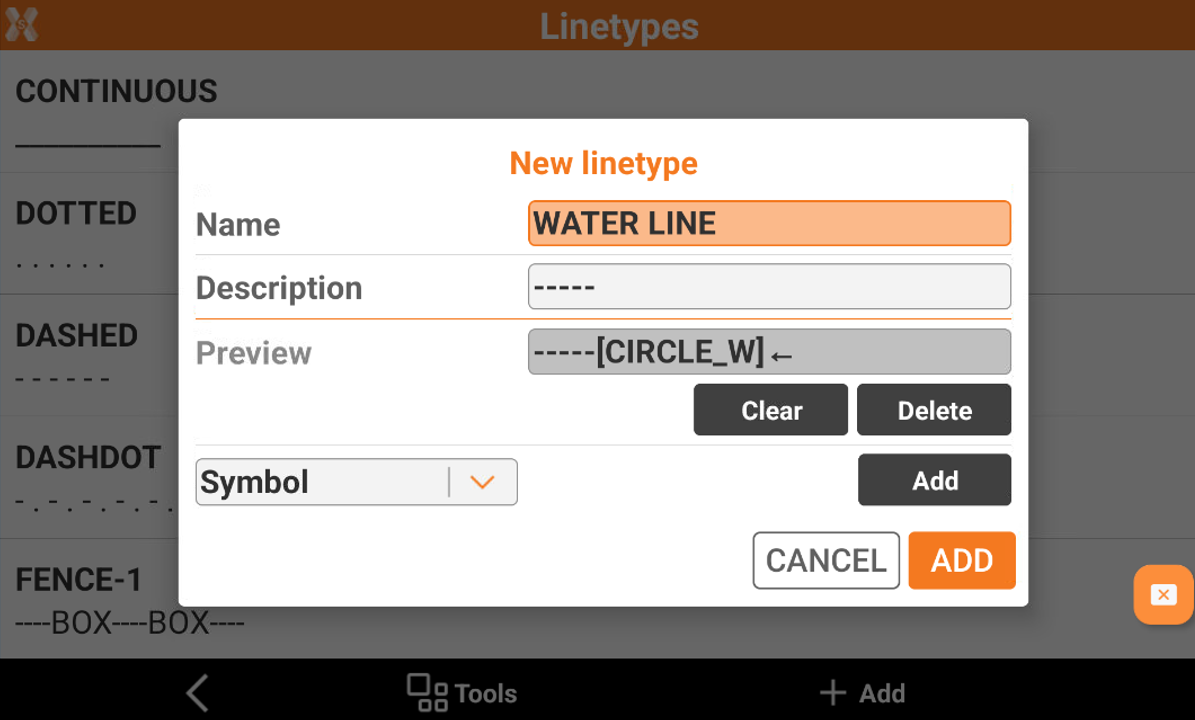

• For example if we want to create a line with 5 parts of line and a symbol we can enter this line.

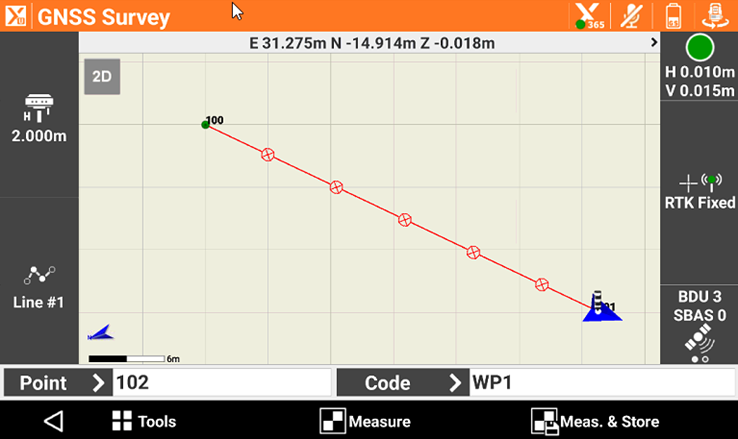

• Using the layer where this linetype is assigned allows to use this linetype.
