Survey codes

| |

• Survey codes allow the precise identification of points and to automate many operations to complete a drawing of the survey.

• For every code, information can be added:

  • Description.

  • Symbol and layer: based on the code, points are represented with a certain symbol and on a certain layer.

  • GIS feature. The GIS feature is composed by a group of properties freely definable by the user. When a code or a GIS feature is associated to a point it is possible to integrate the point with the information corresponding to properties defined by the feature.

• Survey codes can be defined in a parametric way that generate a corresponding parametric long description.

• Different libraries of codes can be defined and used in different jobs. The current library can be exchanged with a different one.

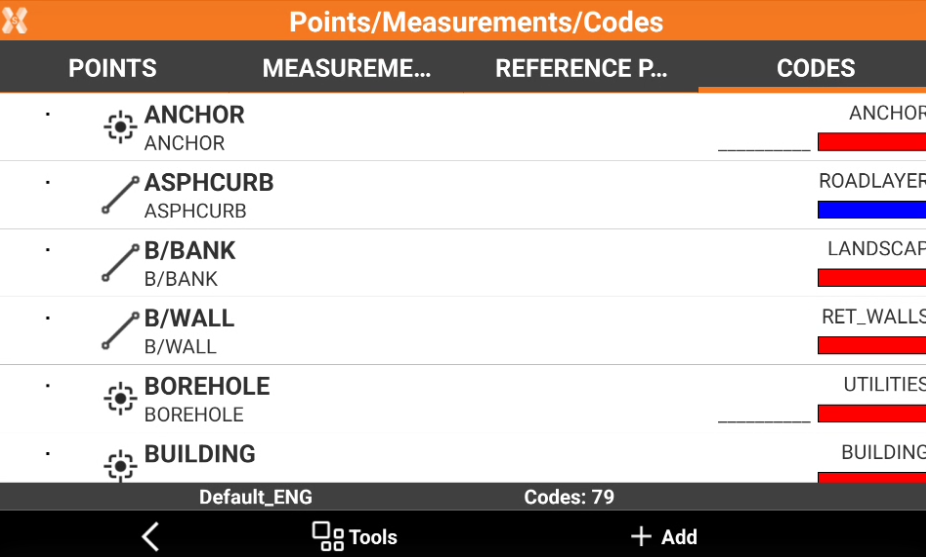

• To open the Codes page click Job.

• Click Points/Measurements/Codes.

• Open the Codes tab.



Code libraries are saved as files in the directory X-PAD\_Data\Codes. Files have *.xml extension.

It is possible to manage the code library using Office Fusion.

• Create a code: how to create a new survey code.

• Edit a code: how to edit the properties of a code.

• Delete codes: how to delete codes.

• Create a new codes library: how to create a new codes library.

• Import a codes library: how to import a codes library in different formats.

• Select a code library as default for a site: how to define a code library as default library for all the jobs in a site and how to define it for collaborative sites.

• Save a codes library as default: how to save a codes library as default codes library for new jobs.

• Export current library: how to export the current codes library.

• Symbols manager: how to use the symbol manager to import and assign symbols to the codes.

• Layers manager: how to use the layer manager to manage the CAD layers and assign them to the codes.

• Linetypes manager: how to use the linetypes manager to manage the linetypes and assign them to the codes.
