Layers manager

| |

• In the Layer manager it is possible to view, edit or create new layers.

• Click Job.

• Click Points/Measurements/Codes.

• Open the Codes tab.

• Click Add to open the page to add a new code, or select and Edit an existing code.

Layers can also be managed from CAD Project Manager.

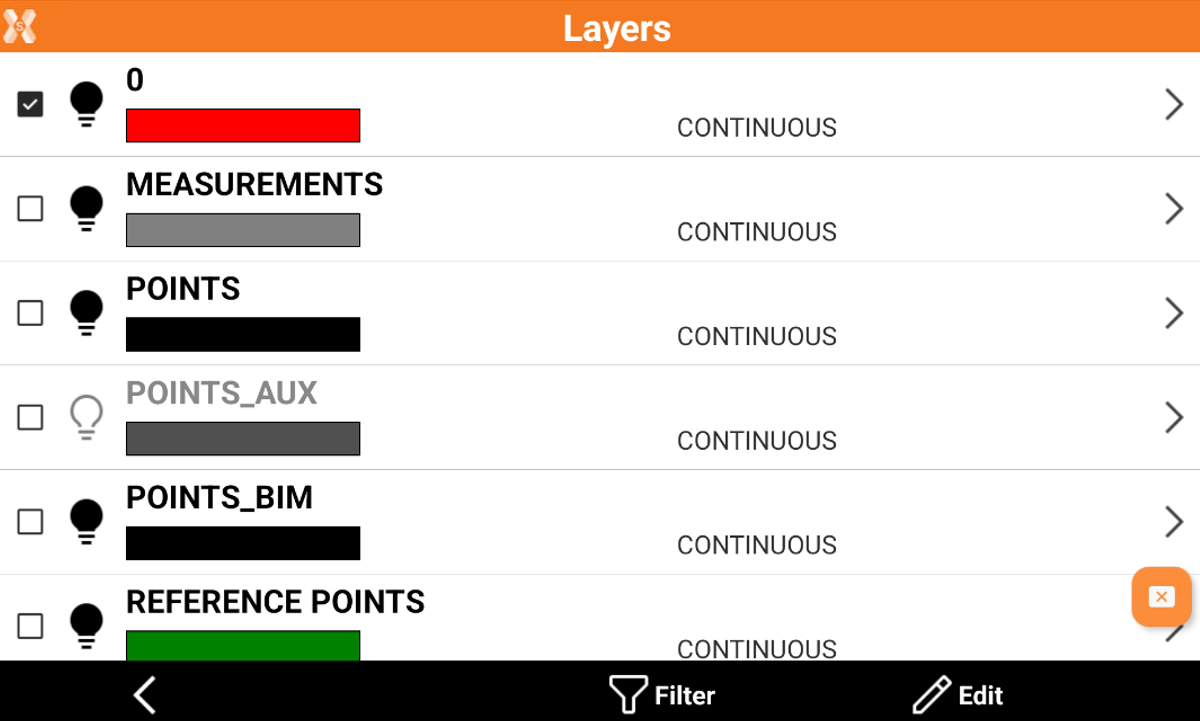

• Open the Layer & color page and click Layer to open the Layer manager.



• This page lists the used layers in the project.

If a code is in a specific layer, the layer will not be visualized in this page until an entity on that layer is created.

Set the current layer

• Click to select a layer as active layer.

• The current layer is marked with .

Filter the layers

• Click Filter to filter the layers in the list by name.

Edit a layer

• Click Edit to edit a layer.

• In the edit mode it is possible to change the layer color or the assigned linetype.

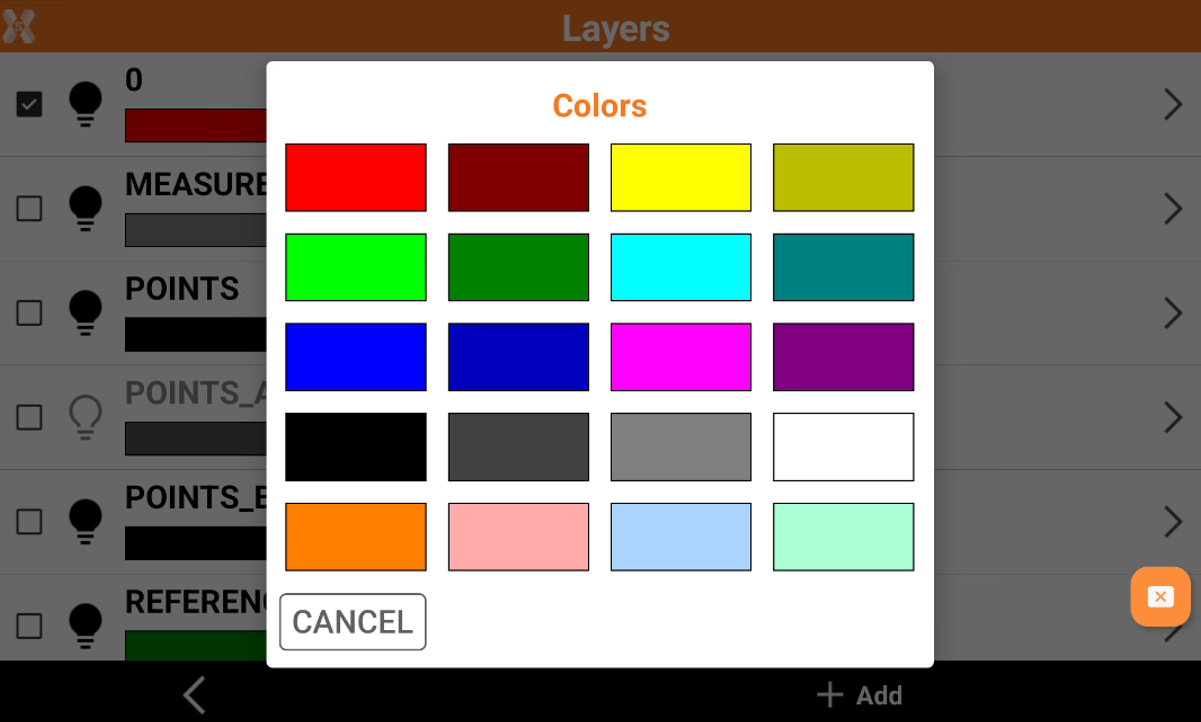

• To change the color click on the color bar near the layer to select a different color.

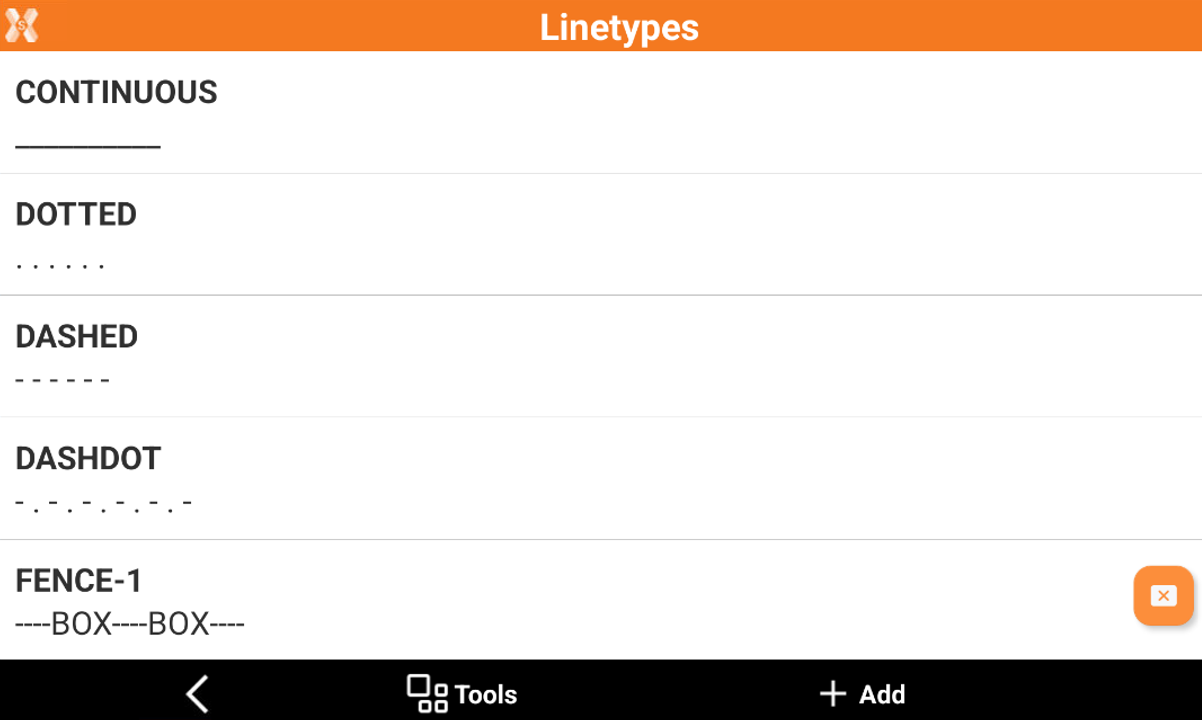

• To change the linetype click on a layer linetype to open the list of available linetypes.



Add a new layer

• To create a new layer click Edit.

• Click Add to create a new layer. After a new layer has been created it can be selected as current layer.
