Measure of a TPS point

| |

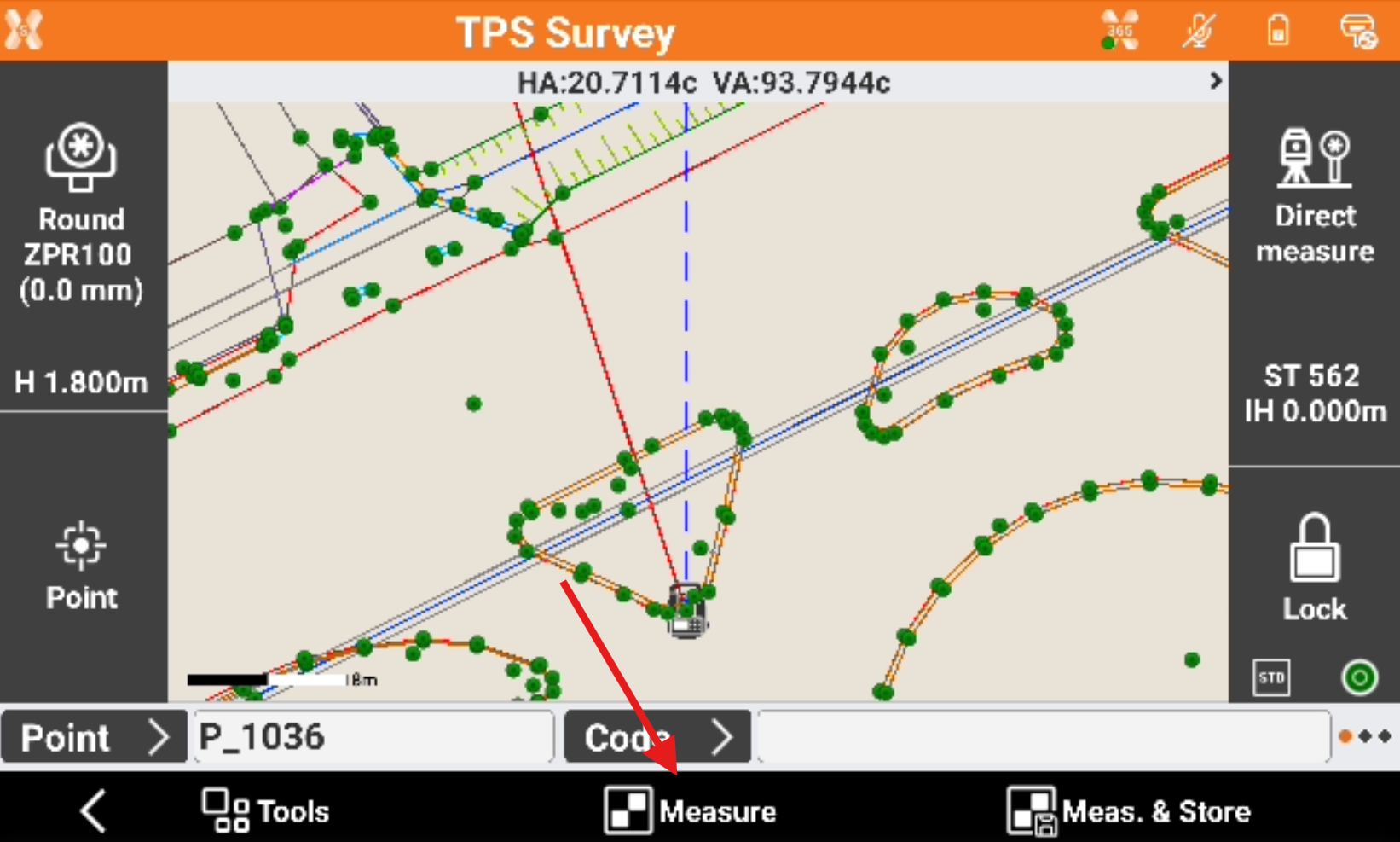

• To measure a TPS point and review the result click Measure.



• Measure the target.

• Decide if the point will be recorded. The angle measured to an unaccessible point can be edited.

• Click Store to record the measured data.

• If GIS feature are required for a point code, a window for entering the attributes opens.

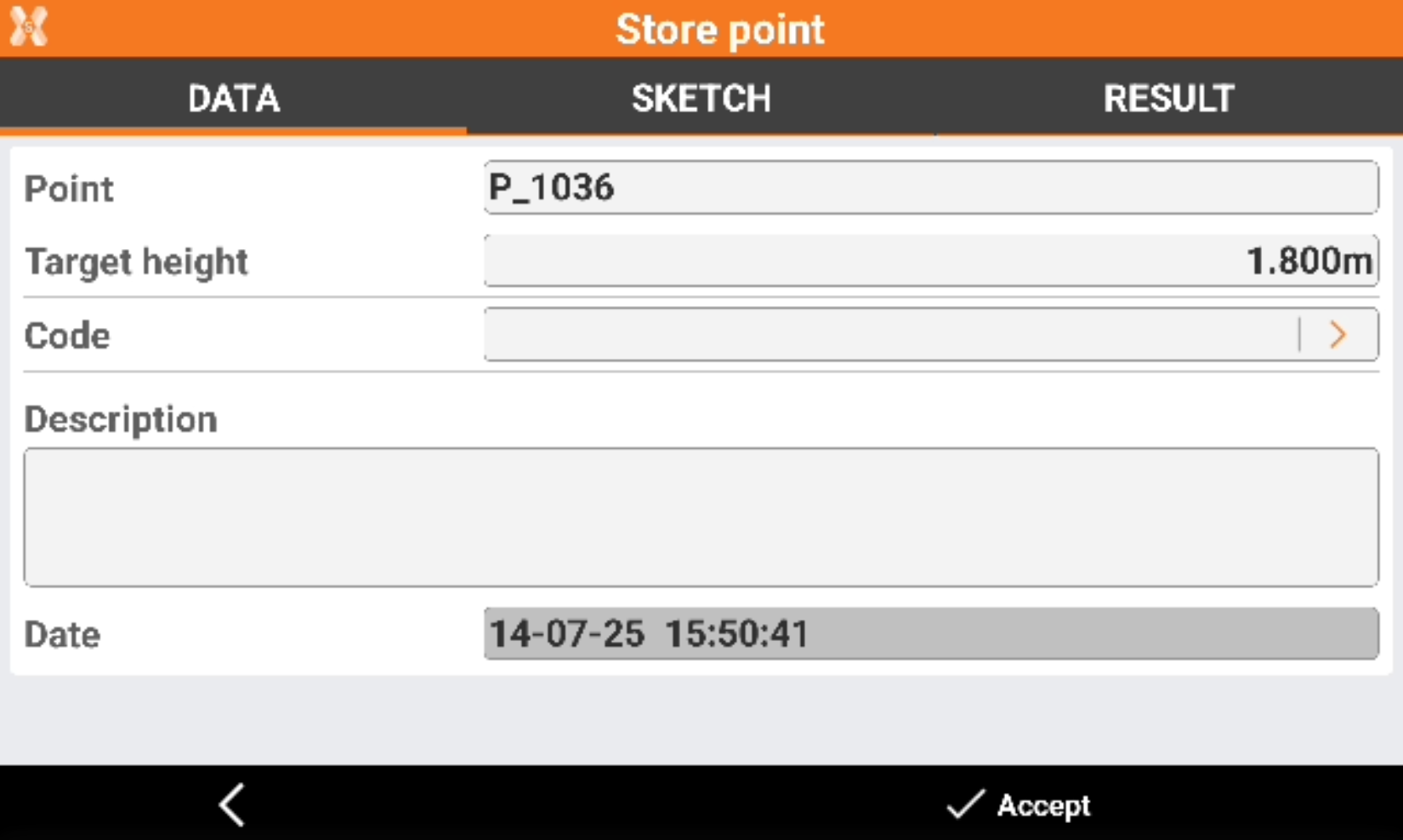

Data page

• The page shows the main point information.



  • Point: name of the point to store.

  • Target height: elevation of the target at the moment of the acquisition of the point.

  • Code: code assigned to the point.

  • Description: extended description associated to the point.

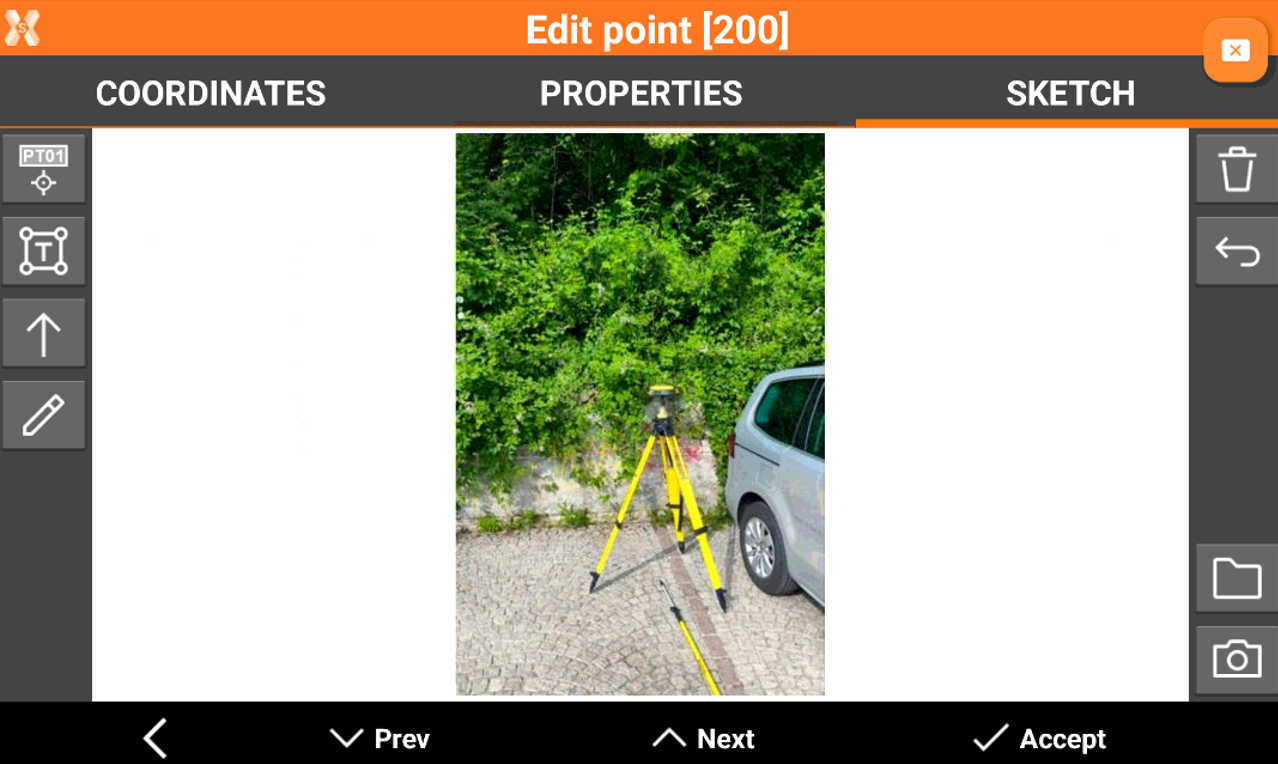

Sketch page

• Sketch page allows to view the photo assigned to a point, load or take a new photo or draw on the image to have a picture of the topographic point.



• : creates a text box with point name, coordinates and codes on the picture. Select and drag to move the text box.



• : creates a text box with free text. Select and drag to move the text box.

• : creates an arrow. Select and drag to move the arrow. Click on to change icon to rotation to rotate the arrow.



• : enables the free drawing mode.

• : deletes sketch and photo.

• : restores original content

• : loads a photo from the controller internal memory. The image must be in the Images folder and has to be in .jpg or .jpeg format.

• : starts the application allowing to shoot a photo and save it.

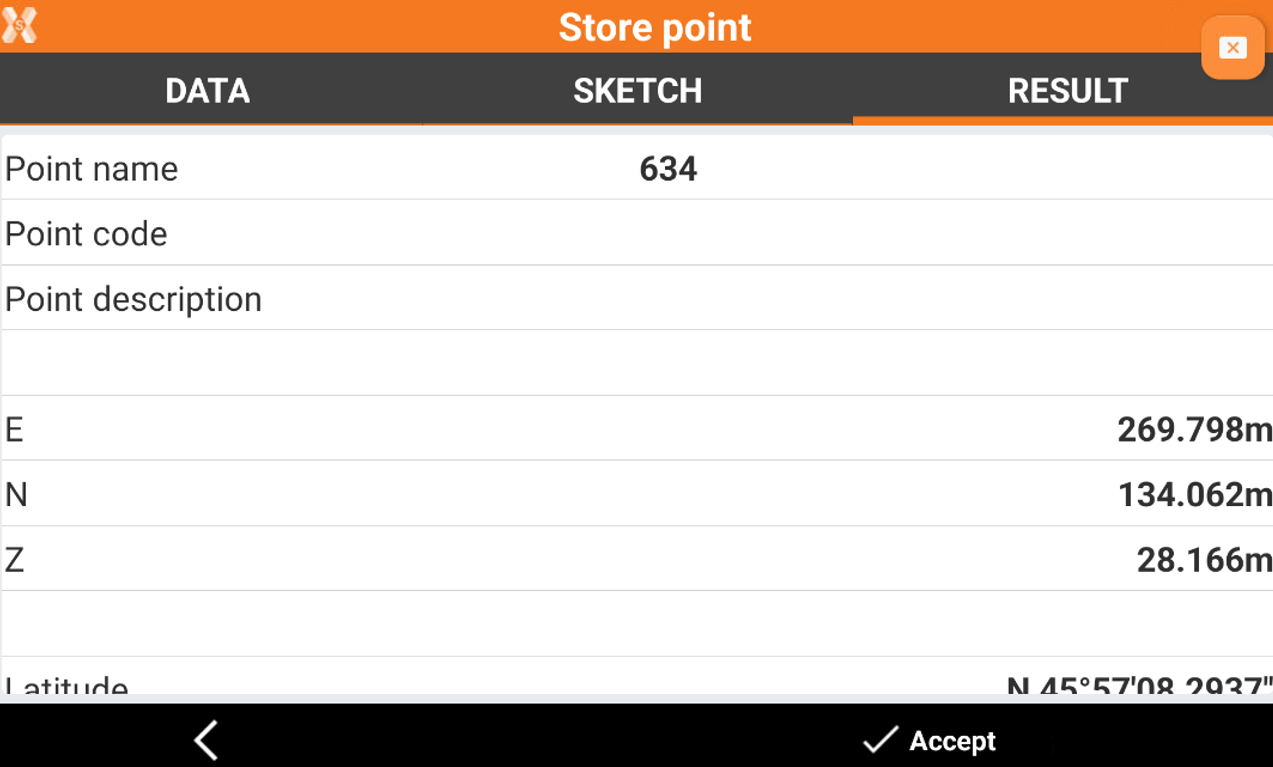

Result page

• The result page shows a resume of measured point.
