Quick instrument selection

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png

  • From the main screen it is possible to quickly change instrument, selecting an already configured instrument profile.

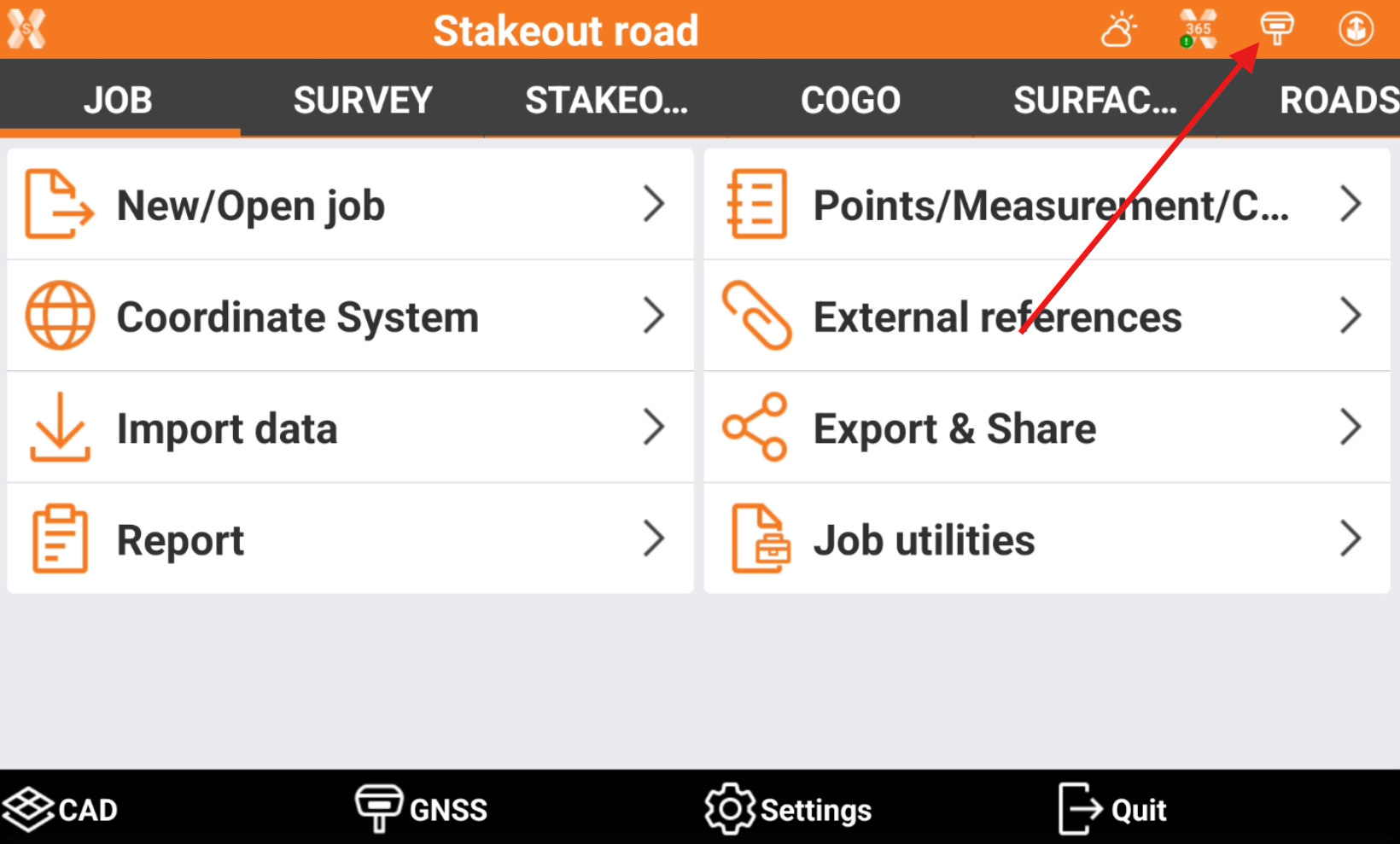

  • Depending on the current instrument, select the icon on top-right of the screen image-20250226-160619.png image-20250226-160739.png image-20250226-160646.png .

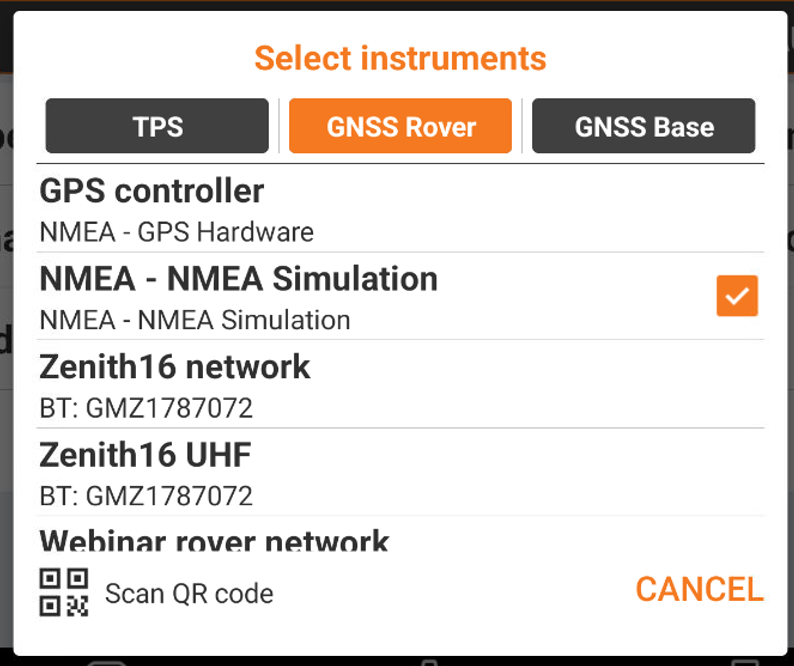

  • This opens a panel where it is possible to select the instrument to connect. This list shows the list of available instrument profiles.


    • TPS: lists the available TPS instrument profiles.

    • GNSS Rover: lists the available GNSS rover instrument profiles.

    • GNSS Base: lists the available GNSS base instrument profiles.

  • Click on a profile to quickly connect to it.

  • Click Scan QR code to scan an instrument QR code to connect to this device.


  • When connection is established you are asked to reconfigure the receiver or total station. Click YES to reconfigure the instrument with parameters in the selected profile, select NO to connect to instrument using the last configured parameters.
