Recording of raw data during survey

|

• In cases where an own base is unavailable or where it is impossible to connect to a network of permanent stations, record all survey session data in a file with proprietary format RINEX format.

• Post-process the data in the office to obtain precise coordinates for the base.

This procedure is used to perform a stop&go survey. When the log is started, the raw data is flagged as kinematic. When a point it is measured, a static session is recorded.

For a traditional static survey refer to Static survey of points.

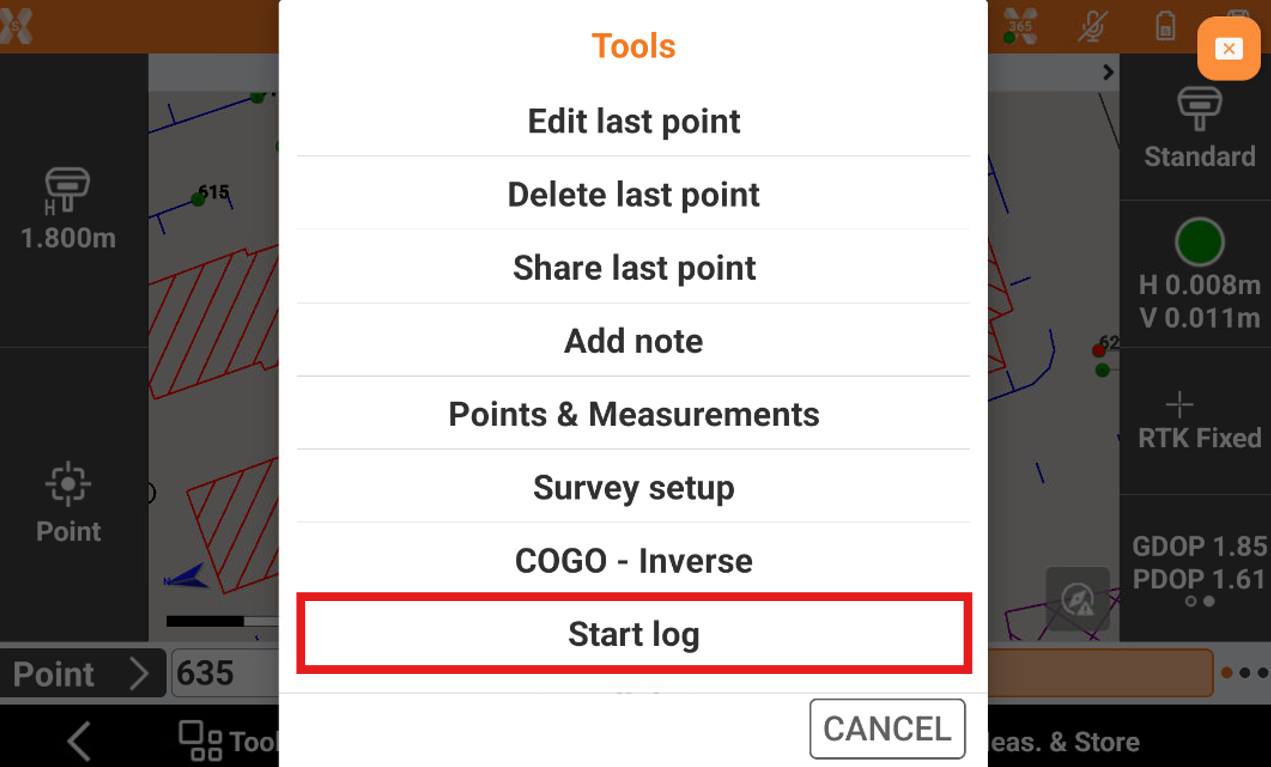

• In the Survey points page click Tools.

• Select Start log.

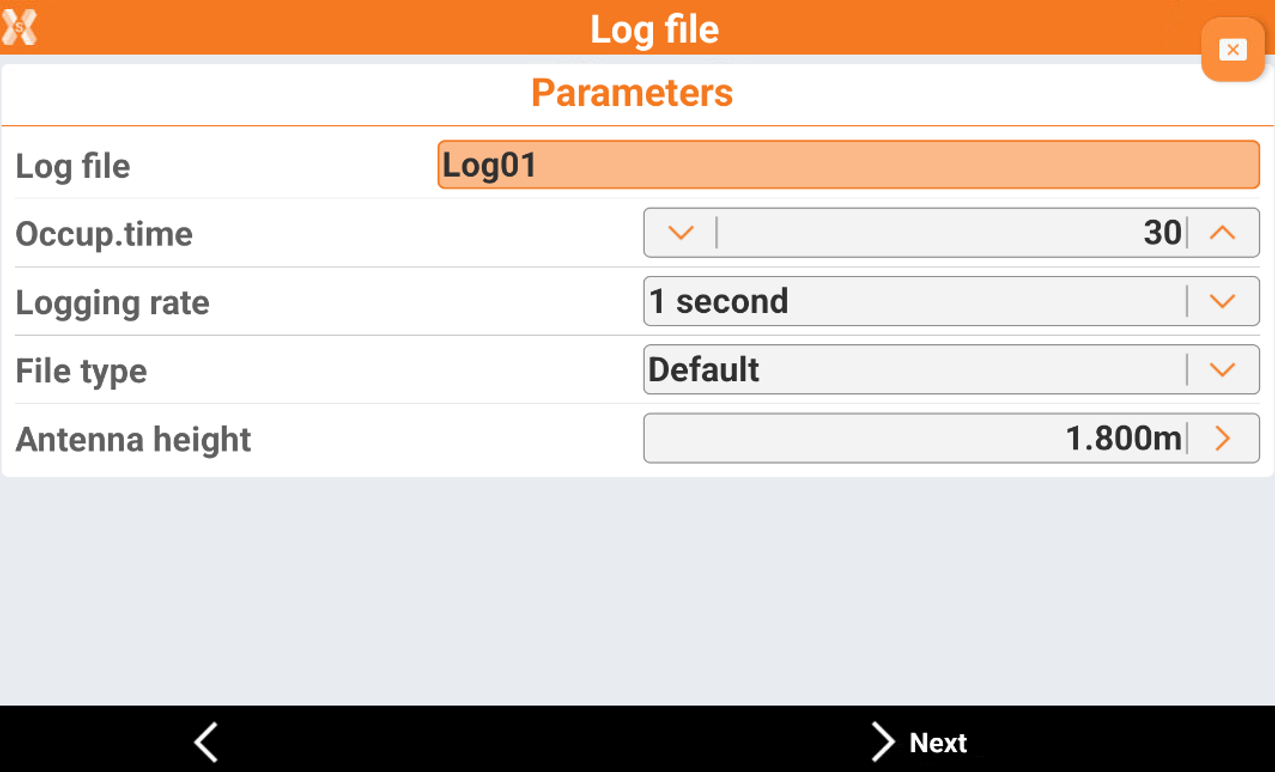

• The page Log file is opened.



  • Log file: name of the file where the raw data are stored.

  • Occup.time: time of acquisition of single point.

  • Logging rate: frequency of the data recording for post-processing.

  • File type: sets the file’s type to store.

  • Antenna height: sets the height of antenna to store.

• Click Next to start to log raw data.

• Kinematic raw data is now recorded, to start a static occupation press Measure to measure a point.

• Recording of raw data is stops automatically when the survey of points procedure ends or it can be interrupted at any moment pressing Tools and selecting Stop log.
