Surface visualization

X-PAD Ultimate Survey 1.png + SURFACE&VOLUME | X-PAD Ultimate Build 1.png+ SURFACE&VOLUME | X-PAD Ultimate GO 2.png + SURFACE&VOLUME

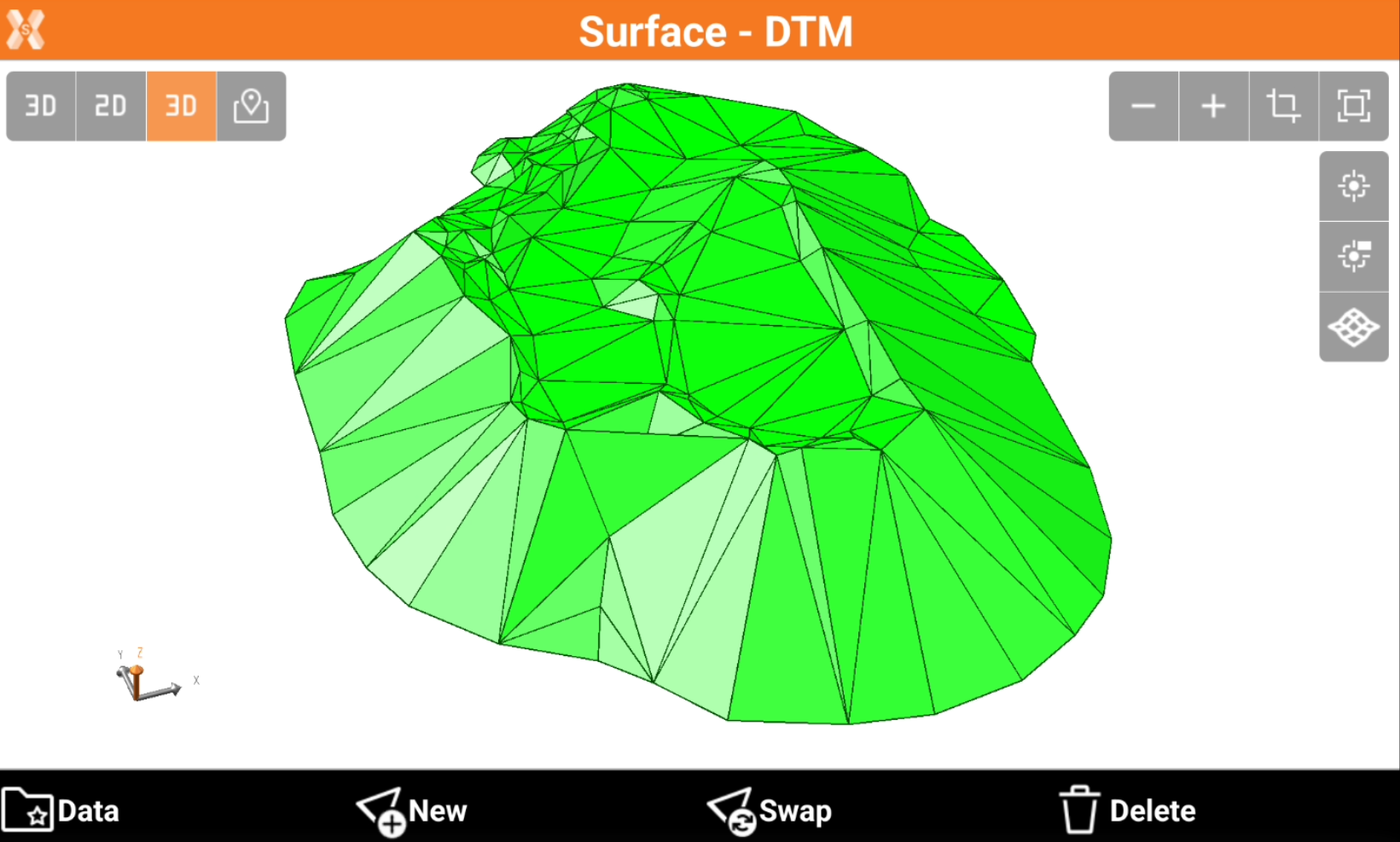

  • The surface can be visualized from the Surface and Volumes page or in CAD.

  • To view the surface from the Surface and Volumes click Surfaces.

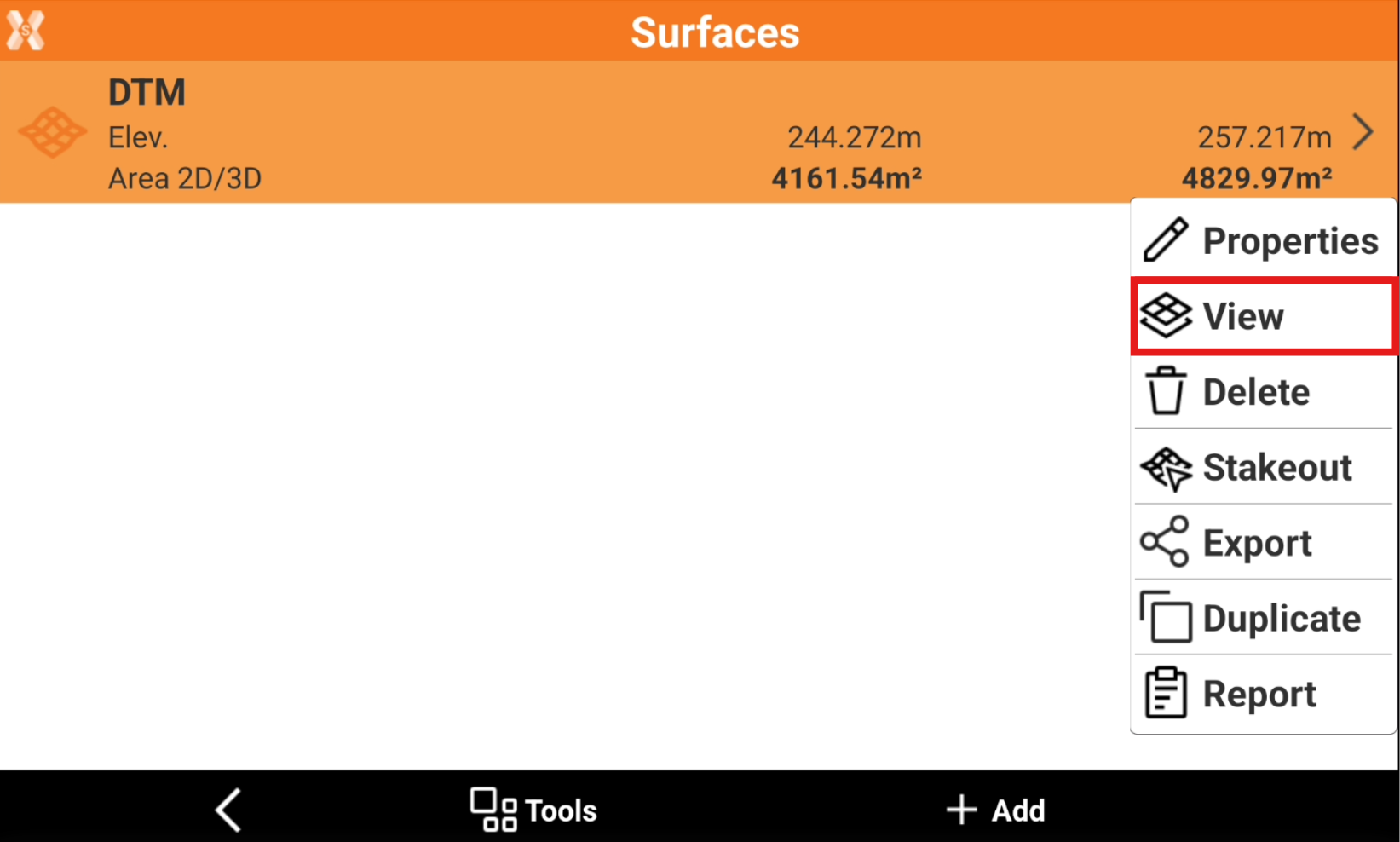

  • Select a surface from the list and click View.


  • You can use the CAD commands to change the surface visualization.

  • It is possible to use CAD commands to change the view from 2D to 3D, add a background map, or show/hide topographic points.

  • Use the CAD commands to adjust the view.
