Total station e-bubble

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • The E-bubble page allows to check the compensator of the total station.

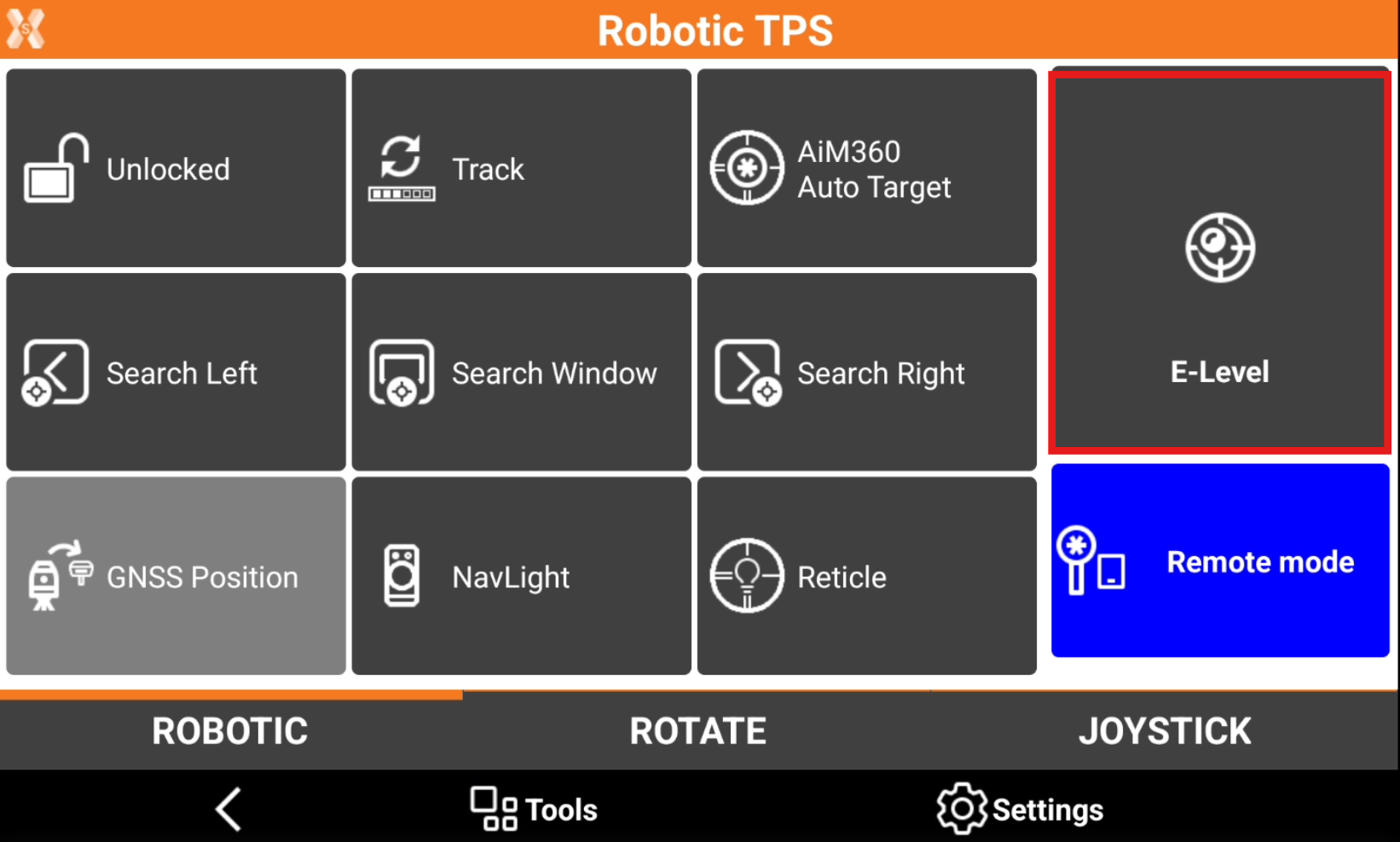

  • It is possible to access the electronic bubble page opening the total station control panel for mechanical or robotic total station and clicking E-Level.

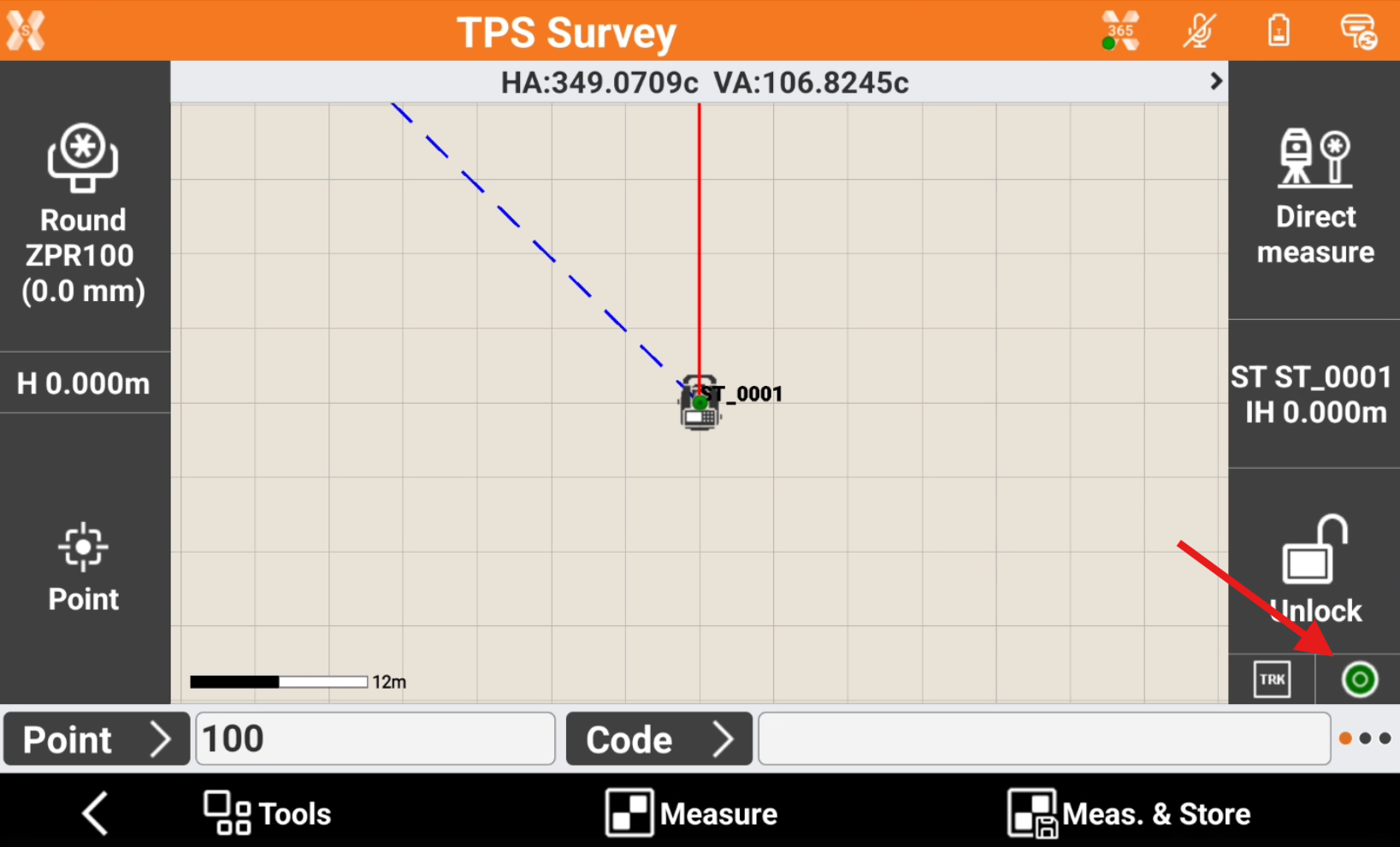

  • Or directly during survey or stakeout clicking on the compensator icon.

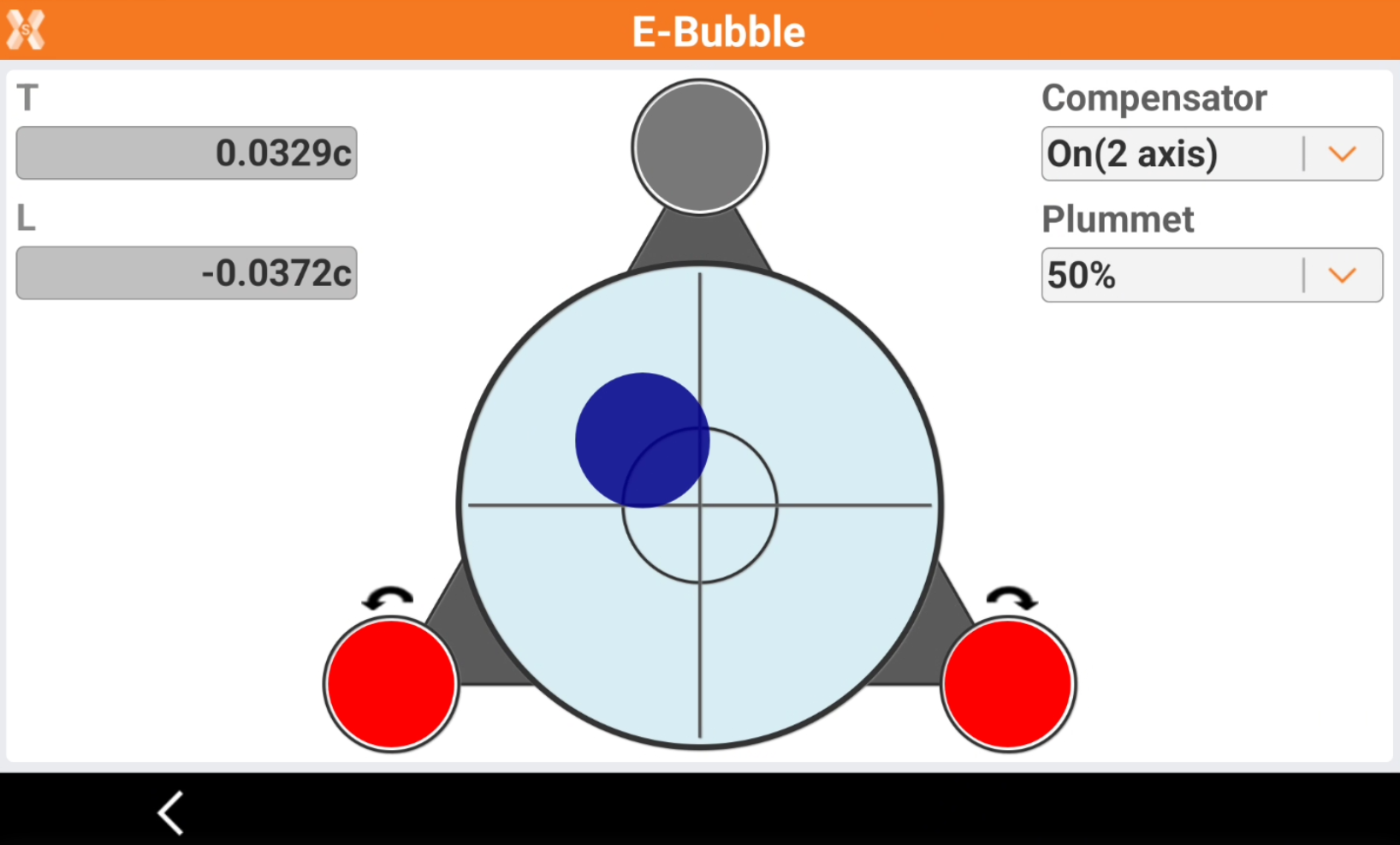

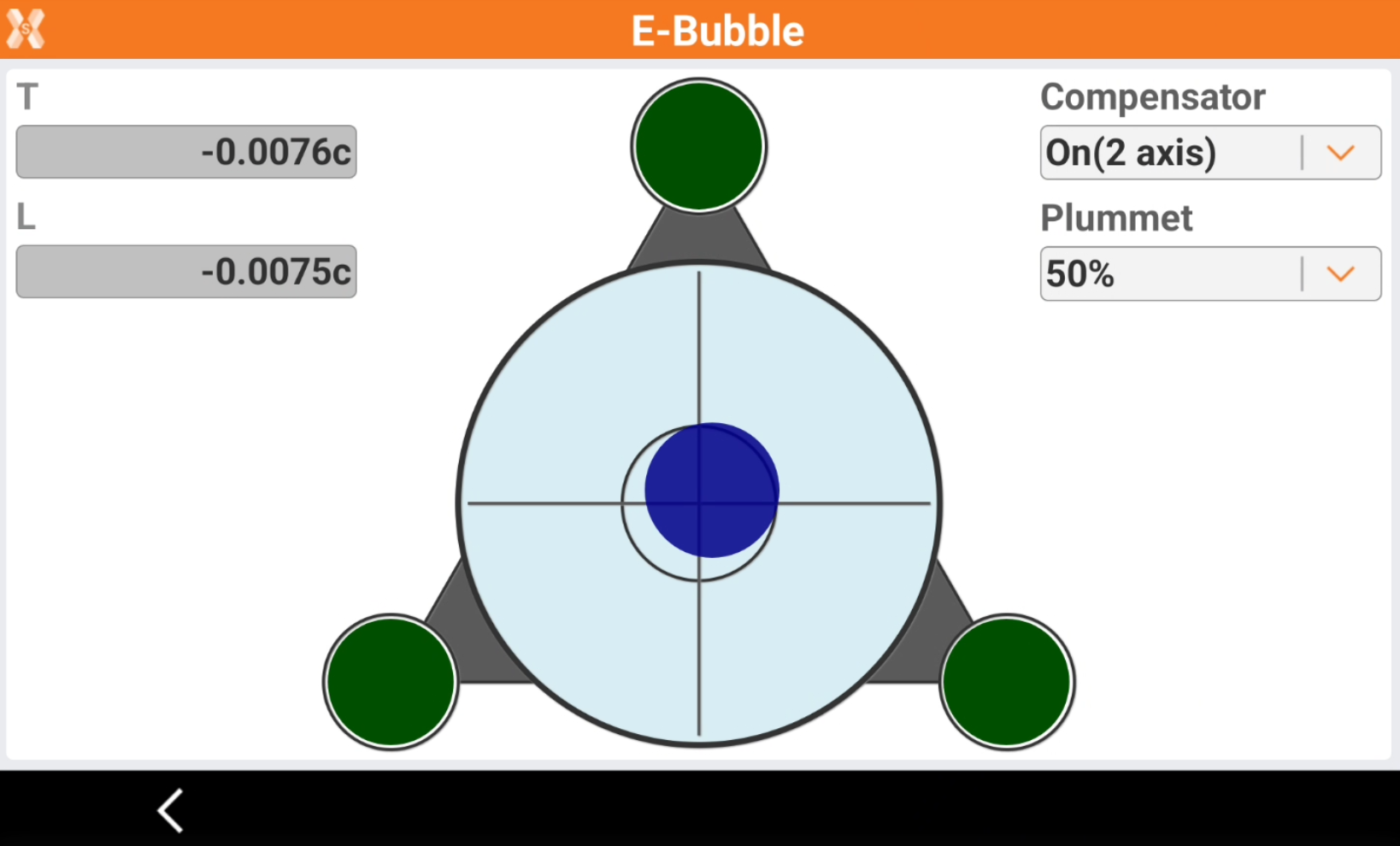

  • The page shows the status of the instrument electronic bubble.


    • T/L: the electronic compensator transversal and lontitudinal values.

    • Compensator: allows to turn on or off the instrument compensator.

    • Plummet: defines the intensity of the laser plummet.

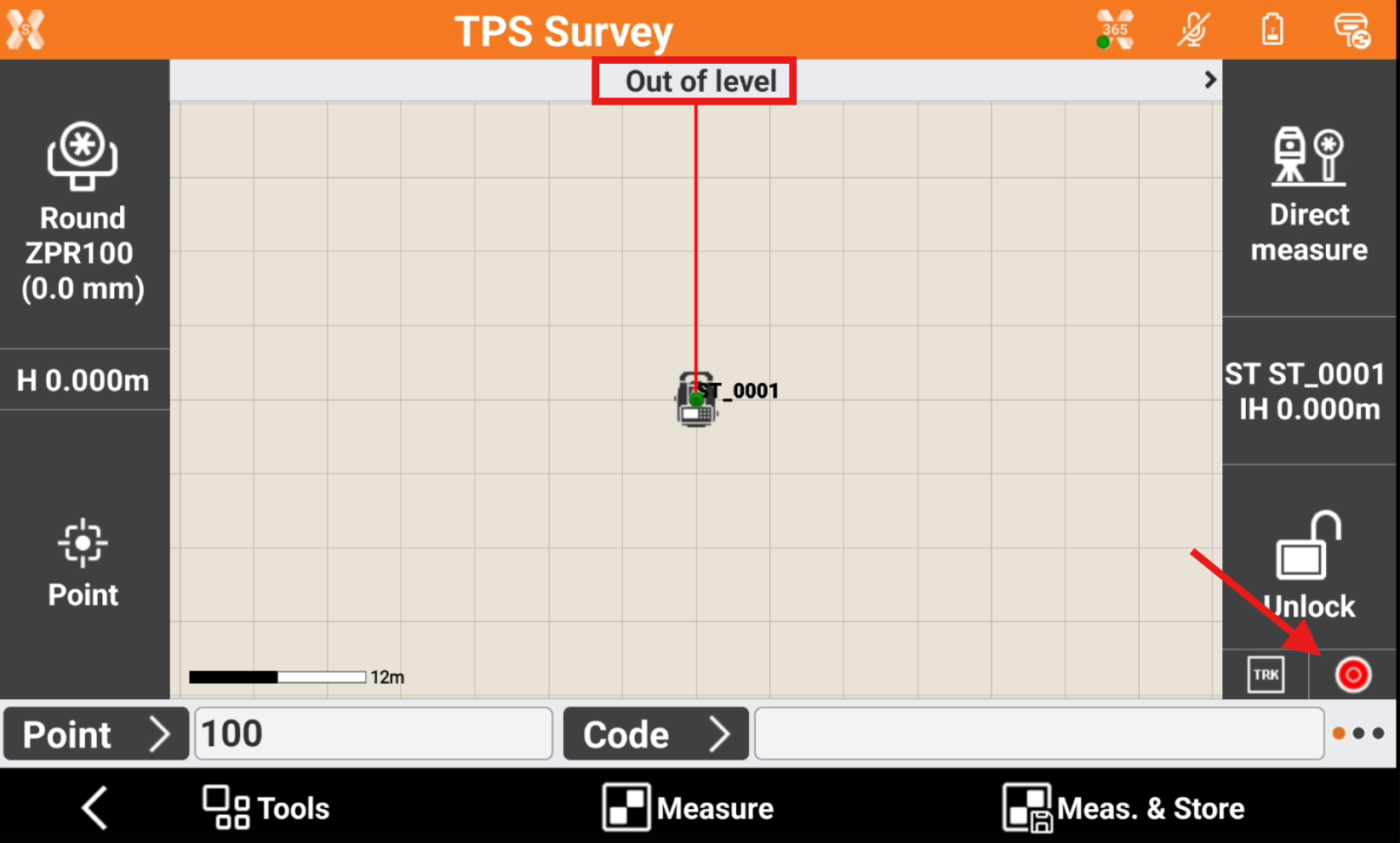

  • If the instrument compensator is on and instrument is not level, the compensator icon is red and the status bar shows Out of level, preventing to take measurements.


  • Open the compensator page and follow the indications to level the instrument.
