TPS Measure mode

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

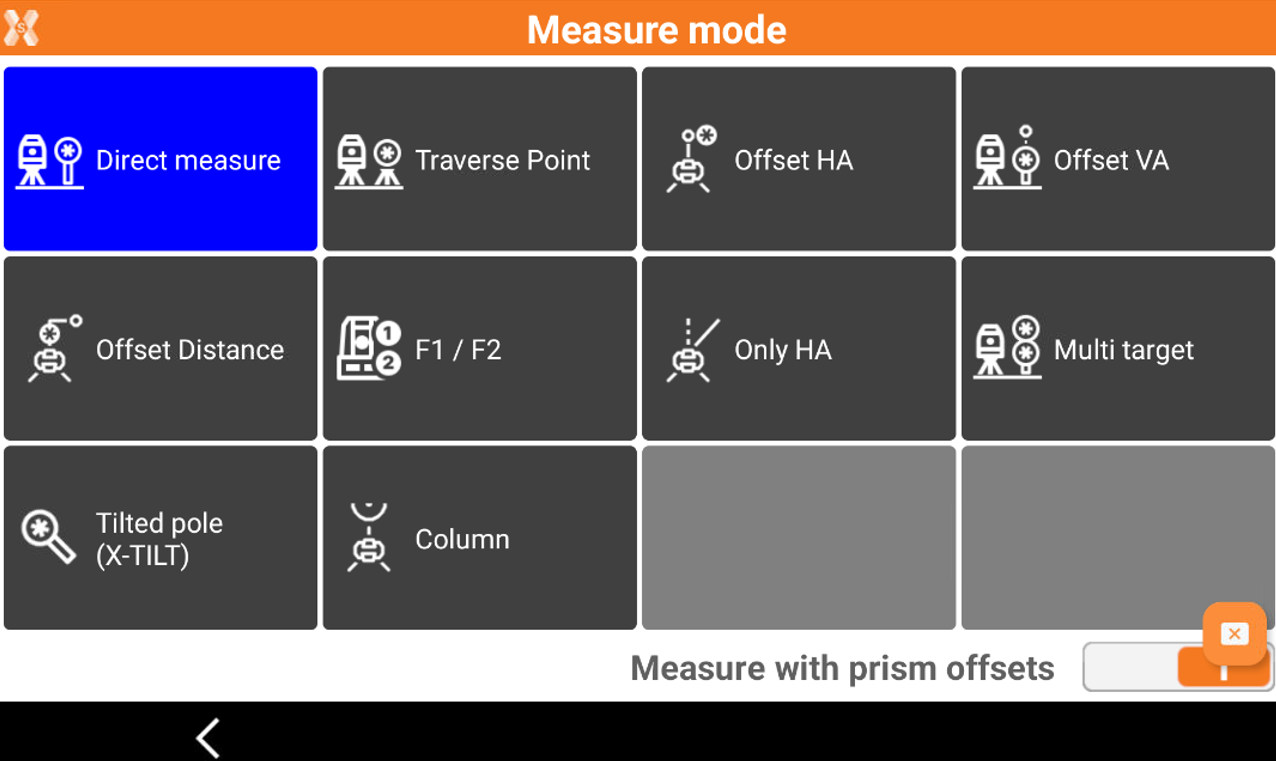

  • The Measure mode allows to edit the type of measurements.

  • To open the Measure mode page click on the corresponding icon.


  • This open the Measure mode page.


    • Direct measure: measure directly to a point.

    • Traverse Point: specifies that the next point measured is a polygonal point. The polygonal points are saved to allow a rapid change of station.

    • Offset HA: performs a measurement to an object for which the prism cannot be placed at the point to measure.

    • Offset VA: performs a measurement to a point not accessible directly by the prism but above or below.

    • Offset Distance: performs a measurement to a point not accessible directly by the prism but at a certain distance along the direction between station and prism.

    • Face1/Face2: performs a measurement to a point in both faces and calculates the average.

    • Only HA: performs only an angle measurement to a point.

    • Multi target: performs a measurement using a multi target pole.

    • Tilted pole (X-TILT): performs a measurement to a point with two tilted pole measurements.

    • Column: measures a cylinder object measuring the sides and the center of the object.

    • Measure with prism offsets: performs a measurement to points applying an offset to prism measurements. The offset can be left, right or longitudinal.
