Vertical offset

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png

  • Calculates the position of one point applying a vertical offset to the measured elevation.

  • Open the GPS Measure mode page.

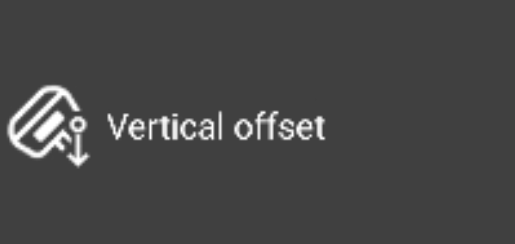

  • Select Vertical offset.

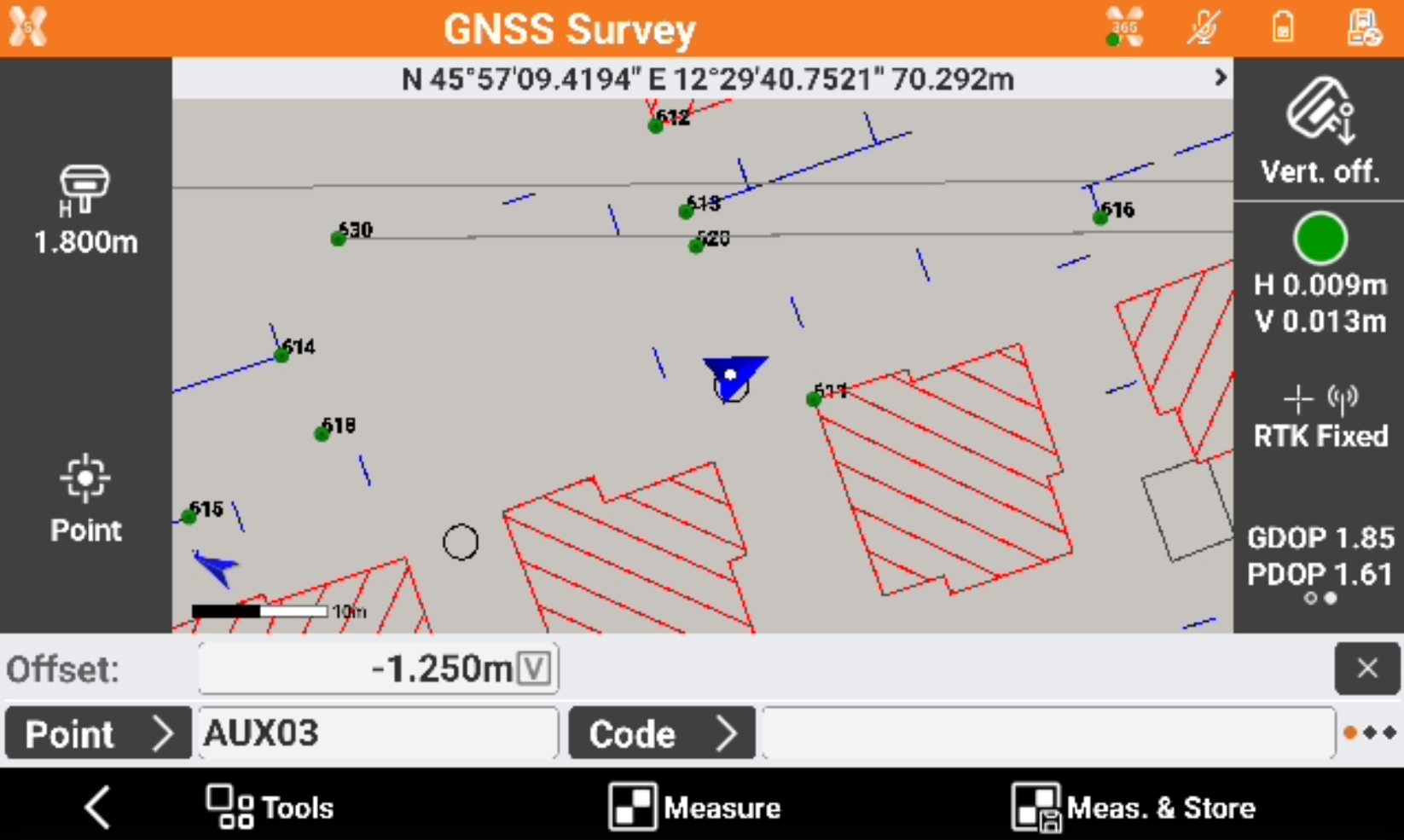

  • A new bar is visible with the possibility to enter the vertical offset in the field Offset.


  • Enter the vertical offset and proceed to measure the point.

If the point to measure is below the tip of the pole, enter a negative offset

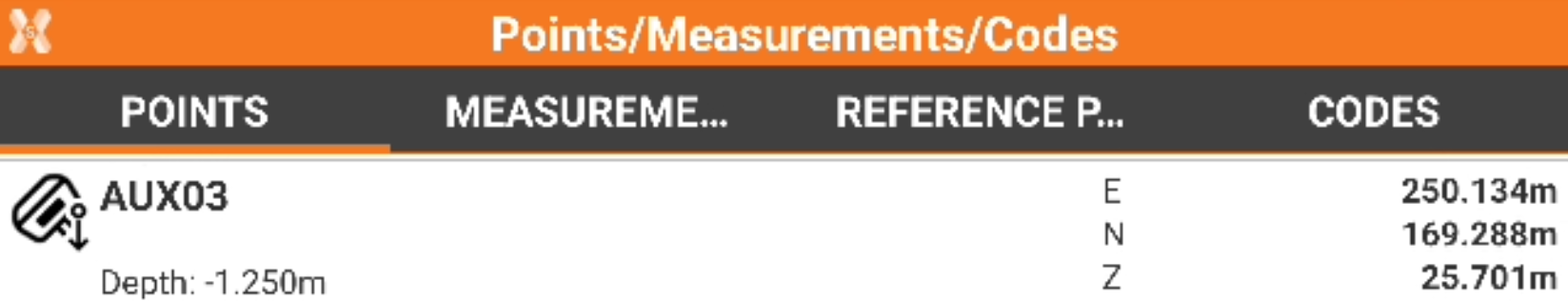

  • The point is recorded with a depth value corresponding to the entered offset as description.
