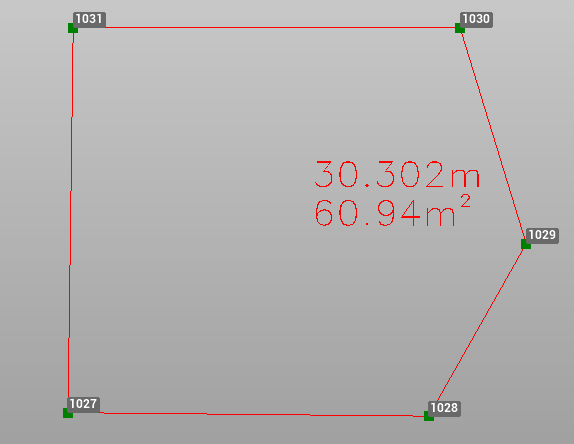

Use the command Polygons to create labels on selected polygons or circles with information according to the selected label style.
-
Click Draw.
-
Click Polygons.
-
The command opens a panel on the right.
-
Change the settings in the Label settings panel:
-
Label style: to select the style from the drop-down menu. Click on the gear icon to open the style settings.
-
Layer: to select on which layer create the label.
-
Label rotation: the rotation of the label. Click on the cross icon to define graphically on CAD the angle.
-
-
Select the polygons or circles to create the labels.
