Add an horizontal alignment by vertices with curves

Creates an horizontal alignment with automatic curves on vertices.

Click Add.

Select By vertices with curves.

Click on the CAD to select the first vertex of the alignment.

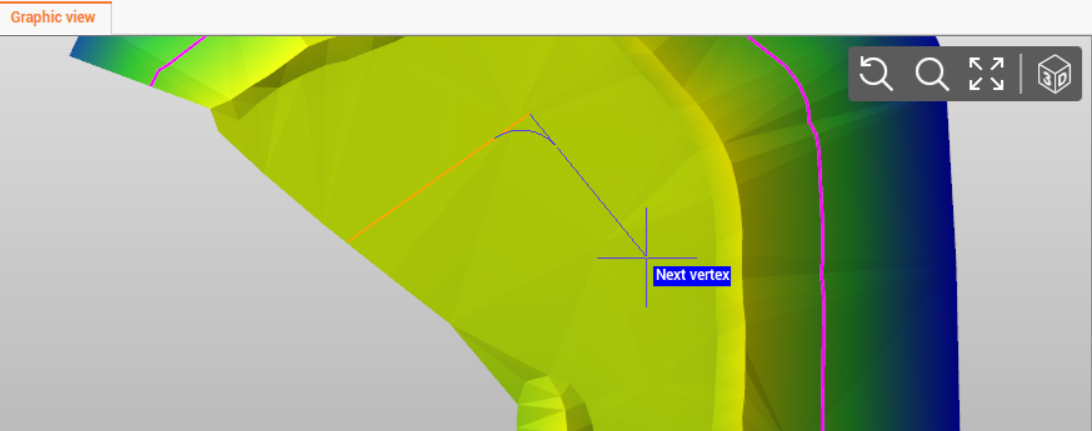

Continue to click in CAD to create the following vertexes; curves will be created automatically.

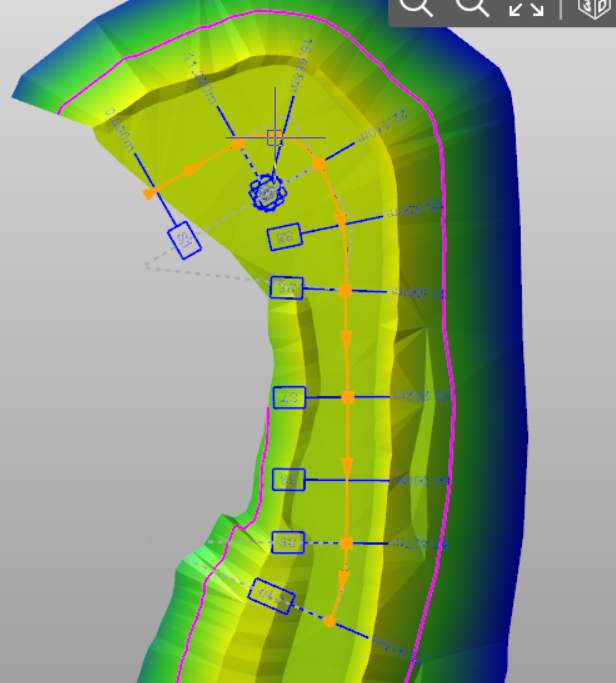

Confirm to create the alignment. Cross sections are automatically calculated according to defined settings (see Alignment main settings).
