Rapid measure of a GNSS point

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

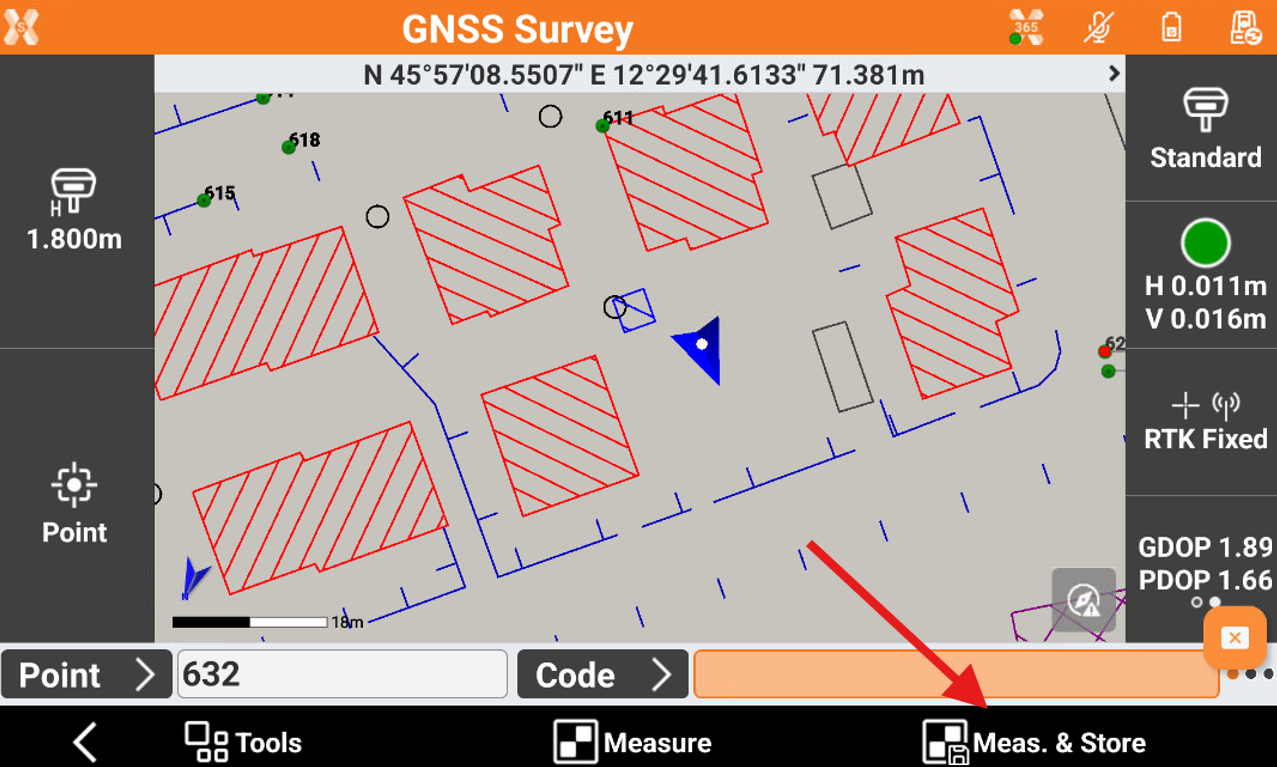

  • To measure a GNSS point click Meas & Store.


  • The acquisition of positions for the number of epochs set in survey parameters starts.

  • The epochs are acquired if the conditions defined for accuracy checks defined in GNSS Settings are met.

  • Otherwise the software keeps waiting for a manual stop or until the conditions are met.

  • When the number of defined epochs is reached, the point is saved. The name of next point is automatically suggested.

  • If GIS feature are required for a point code, a window for entering the attributes opens.
