Select a GIS features library as default for a site

X-PAD Ultimate Survey 1.png + GIS | X-PAD Ultimate Build 1.png+ GIS | X-PAD Ultimate GO 2.png + GIS

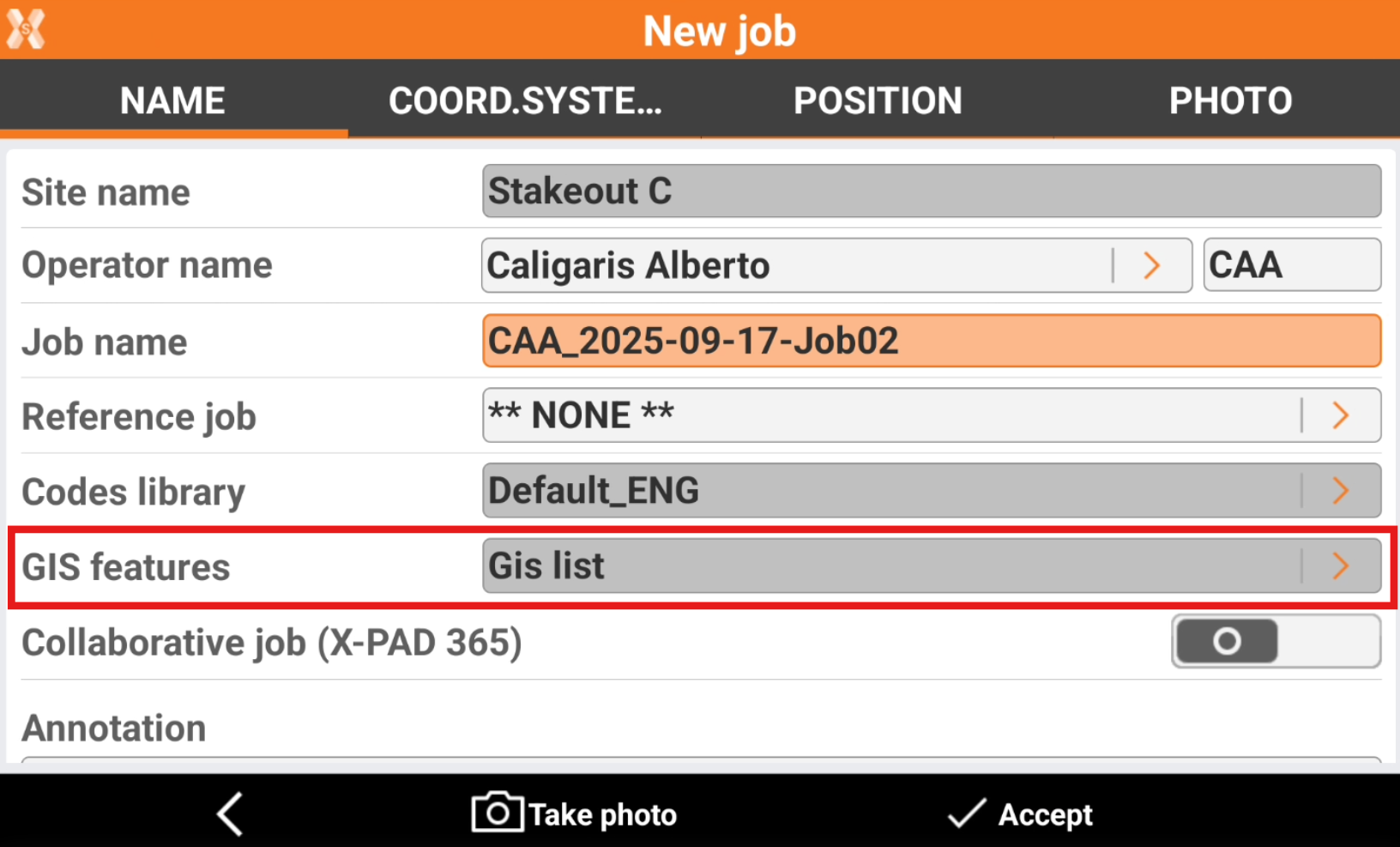

  • It is possible to define a GIS features library on site level, so that all jobs within the site will automatically use the selected GIS features library.

When the GIS features library is selected on site level, it commands on the GIS features library selected at the job level.

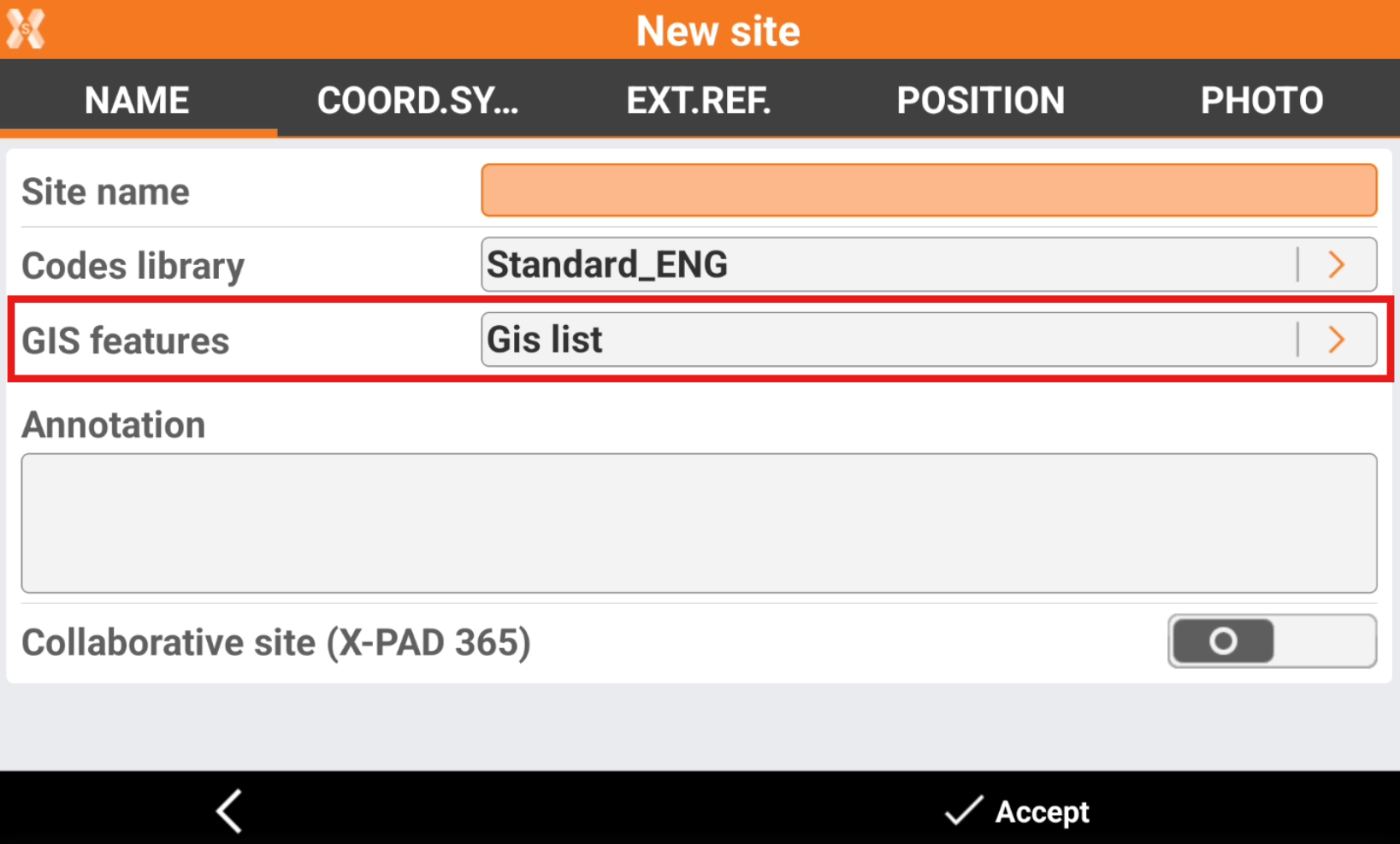

Select a GIS features library when a site is created on controller

  • When a job site is created, it is possible to assign for the site a code library.


  • The jobs in the selected site will use this GIS features library as default.

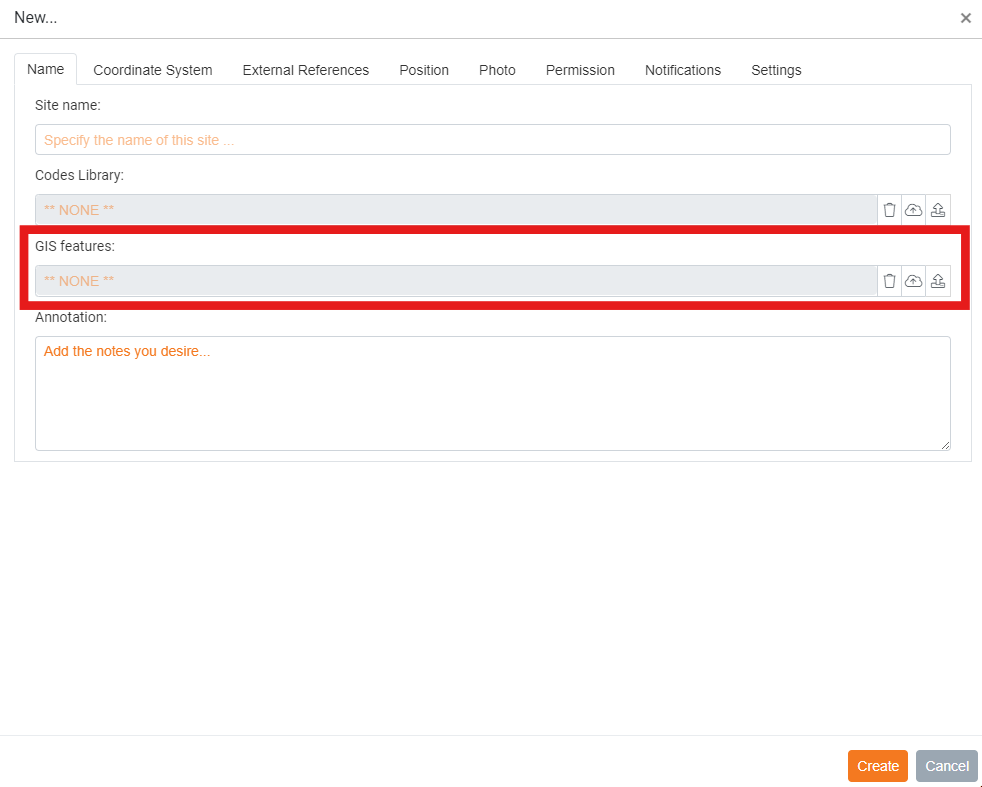

Select a code GIS features library when a site is created on X-PAD365 cloud platform

  • When a site is created on X-PAD 365 platform from the job manager, it is possible to assign a GIS features library that will be used by all users.

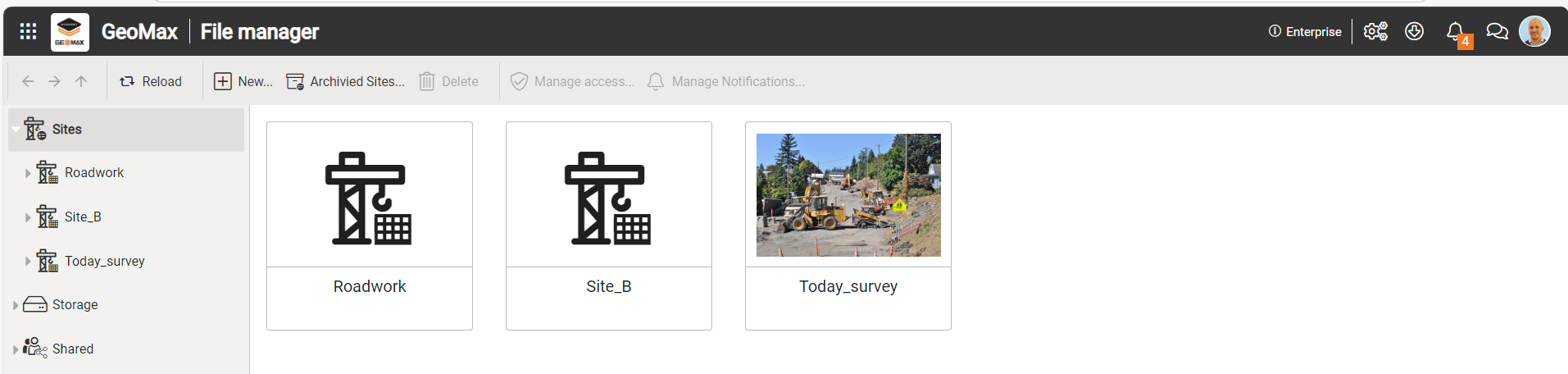

  • Open X-PAD365 File Manager from the web platform.

  • In the left panel the Collaborative Sites are listed under Sites.


  • Click New to create a new collaborative site.

  • Select the GIS features library in X-PAD XML format to use. This GIS features library will be used by all jobs in the created collaborative site.


  • In case a user has not the library on controller, it will be downloaded on the user controller.
