Battery charging
-
Before using the receiver, the internal battery of Zenith06 should be charged. Connect the typeC data cable to the receiver and plug the adapter into an AC supply.
-
Do not disconnect from power until the battery LED is solid green, indicating that the battery is fully charged.
Operation with pole
-

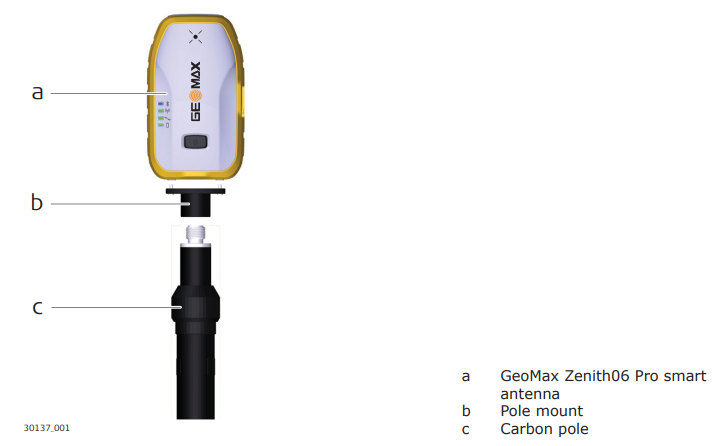

To work with Zenith06 Pro on a pole, the pole mount accessory has to be installed.
-
To attach the Zenith06 Pro smart antenna on the top of a pole, the pole mount adapter is required.
-

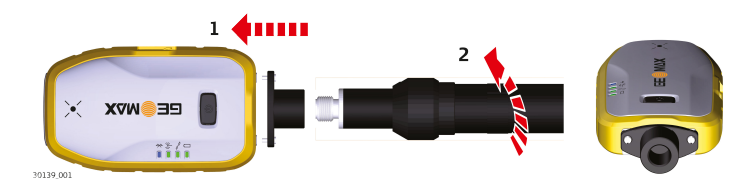

Use a slot screwdriver to fix the pole mount adapter with both screws to the Zenith06 Pro smart antenna. Make sure to fix the pole mount adapter in the correct orientation.
-
Screw the pole clockwise into the pole mount adapter.
