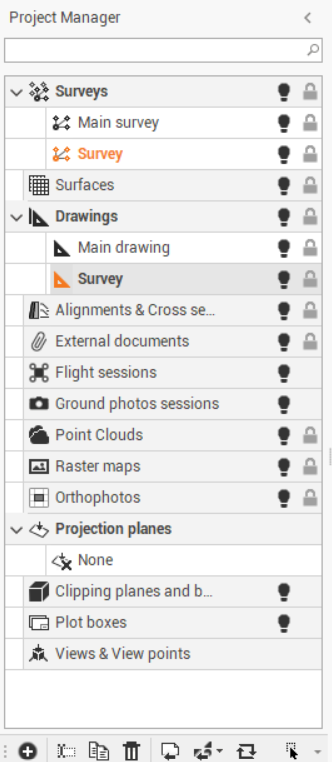

Project manager

• The project manager is the main managing panel of the project. It is accessible from the managing panel of the project, left of CAD window.

• The project manager allows:

  • Access to the subprojects.

  • Manage features of subprojects.

  • Display features of subprojects.

  • Use features of subprojects.

• These icons and commands are in the bottom bar of the panel and change based upon the type of data.

  • New subproject : creates a subproject of the selected type.

  • Import entities : imports entities from a subproject of a same or different project.

  • Change subproject : moves selected entities from one subproject to another.

  • Activate subproject by selected object : enables the subproject to which the selected entity belongs.

  • Expand all : expands all nodes.

  • Collapse all : collapses all nodes.

  • Rename : changes the name of the subproject.

  • Duplicate : creates a copy of the entire subproject.

  • Delete : deletes the subproject and all related data. An active subproject cannot be deleted.

  • Visible/Invisible : hides or displays all entities of a subproject and all subprojects of a category.

• The Project manager is divided into:

  • Survey subproject

  • Surface subproject

  • Drawing subproject

  • Sections group subprojects

  • External documents

  • Point clouds subprojects

  • Flight and ground photo sessions subprojects

  • Raster maps subprojects

  • Ortophotos subprojects

  • Project planes subprojects

  • Clipping planes subprojects

  • Clipping boxes subprojects

  • Plot boxes subprojects

  • Views & view points subprojects

Assign a unique color to the subproject

For Survey, Drawing or Surface subprojects, it is possible to distinguish elements when different subprojects of the same category exist, assigning a unique color to it.

1. Tap on the local menu.

2. Tap Settings.

3. Tap Properties tab.

4. Apply the color. An icon indicates the color of the subproject.
