Angle

The command Angle allows to:

• Calculate the angle between 3 points.

• Generate a simplified view of the data.

• Store the annotations as labels.

How to use the function step-by-step

To use the Angle function:

• Click Home.

• Click Angle.



• Select the measuring angle mode:

  • Center and direction: the angle is calculated by a center point and two directions.

  • Sequential: the angle is calculated between a center point and a sequence of directions.

  • Radial: the angle is calculated between a reference point and two directions. The first direction is maintained in successive measurements.

• Select the angle depending on the mode selected.

• The annotation shows the angle between the points.

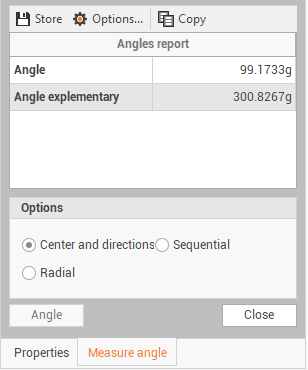

• On the Distance panel, you can visualize additional information.



Store annotation values

It is possible to store annotations.

• After measuring an angle with the Angle function, the panel is opened.

• Click Options.



• Select the values to include in the annotation and click OK.



• Click Store to store the annotation label.
