The command Area allows to:
-
Calculate the area and perimeter of selected points
-
Generate a simplified view of the data.
-
Store the annotations as labels.
How to use the function step-by-step
To use the Area function:
-
Click Home.
-
Click Area.
-
Select the points that define the area.
-
The annotation shows the area enclosed by the selected points.
-

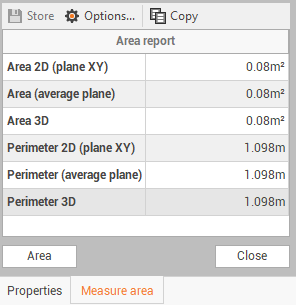

On the Measure area panel, you can visualize additional information.
Store annotation values
It is possible to store annotations.
-
After measuring an area with the Area function, the panel is opened.
-
Click Options.
-
Select the values to include in the annotation and click OK.
-
Click Store to store the annotation label.
