Plot boxes

To print a saved plot boxes, you can use the command Plot box.

  • Click Output.

  • Click Plot box.


  • Select the created plot box in the graphic view to open the preview generated using the defined page size and plot box layout used when plot box was created.

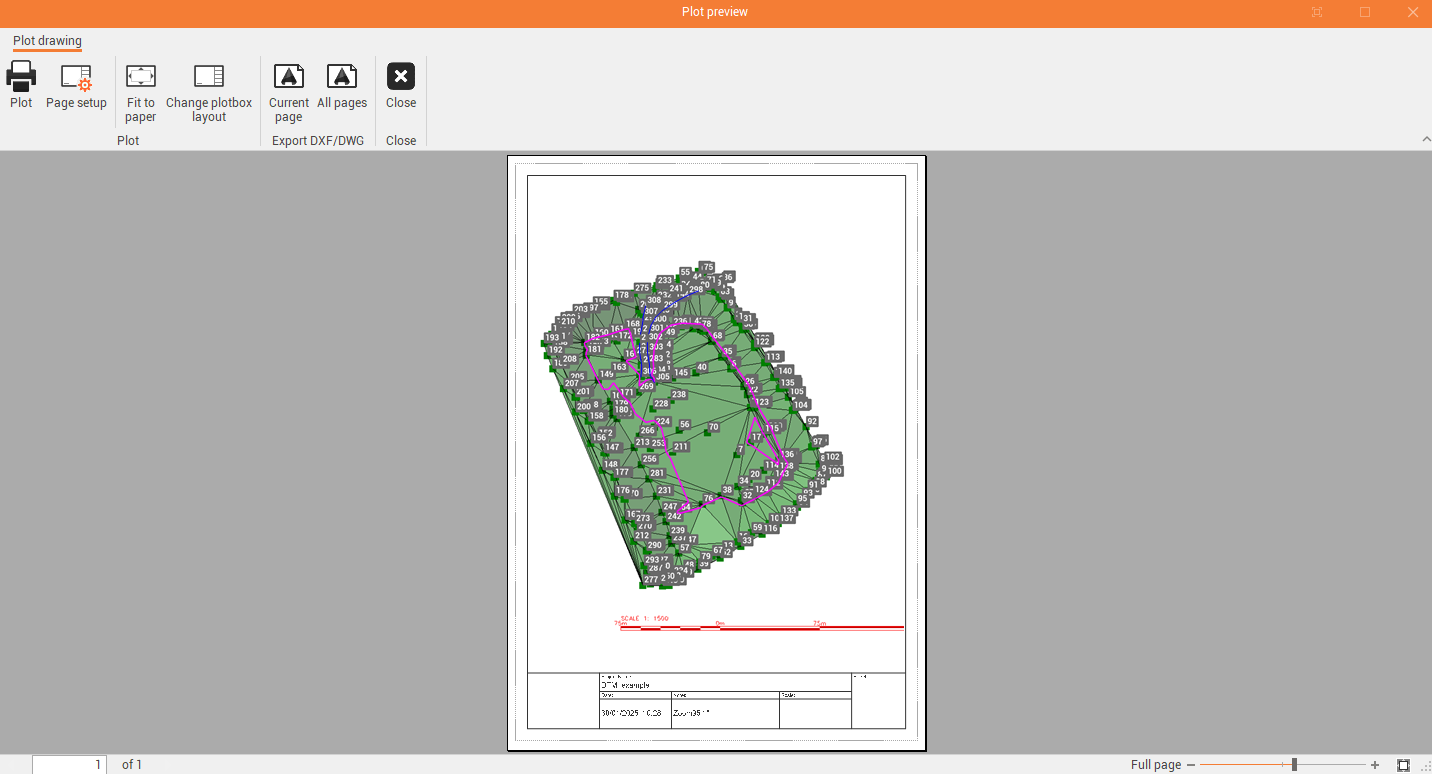

  • The plot preview has different commands:

    • Plot: to send the preview to the printer.

    • Page setup: to open the page setup window.

    • Fit to paper: fits the drawing to the current paper size.

    • Change plotbox layout: opens the designer tool to change the plot box layout and edit the fields of the title block.

    • Current page: exports the current page to DXF/DWG.

    • All pages: exports all pages to DXF/DWG.

    • Close: close the preview.
