Import a file to the current job

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

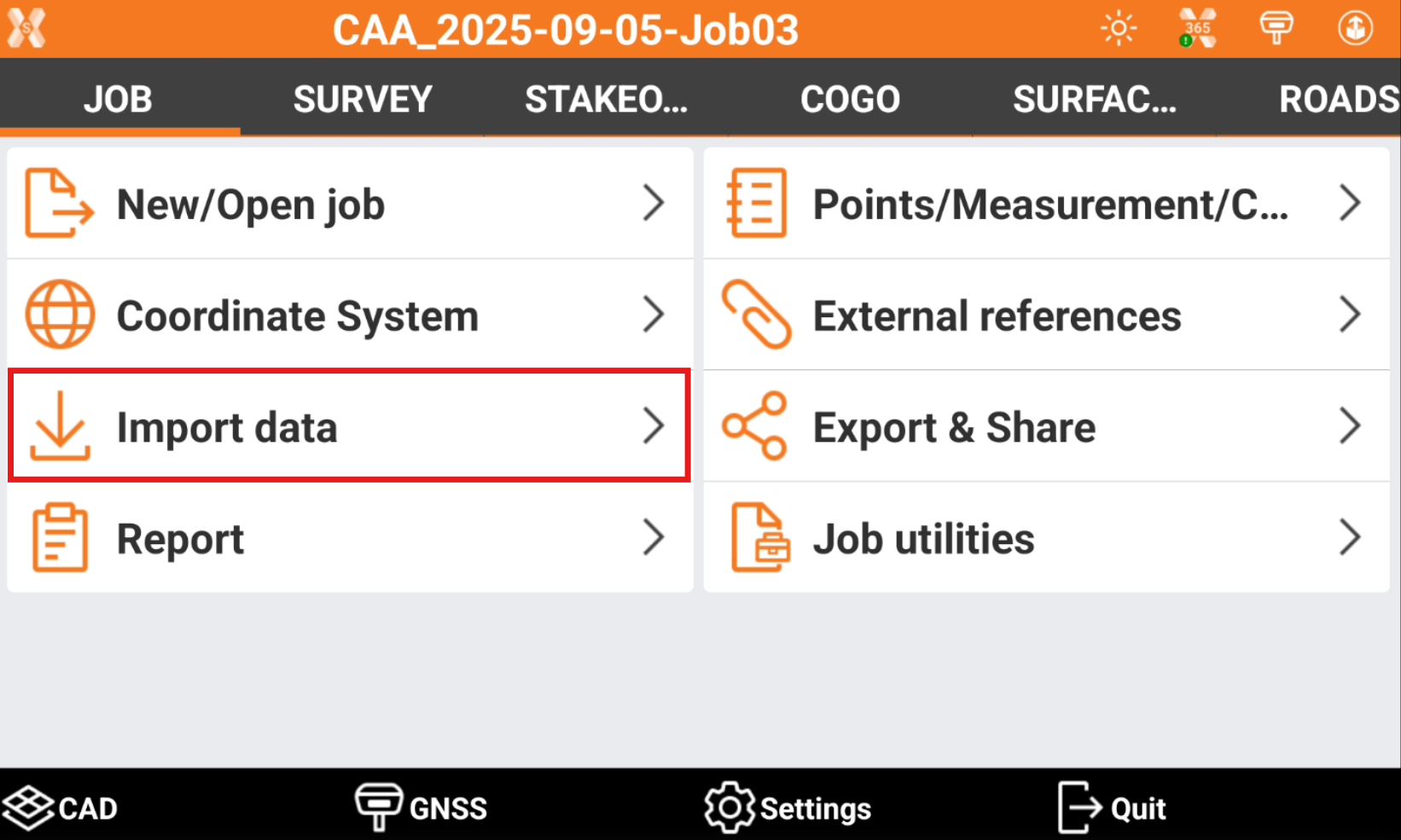

  • To import a file open the Job page.

  • Click Import data.

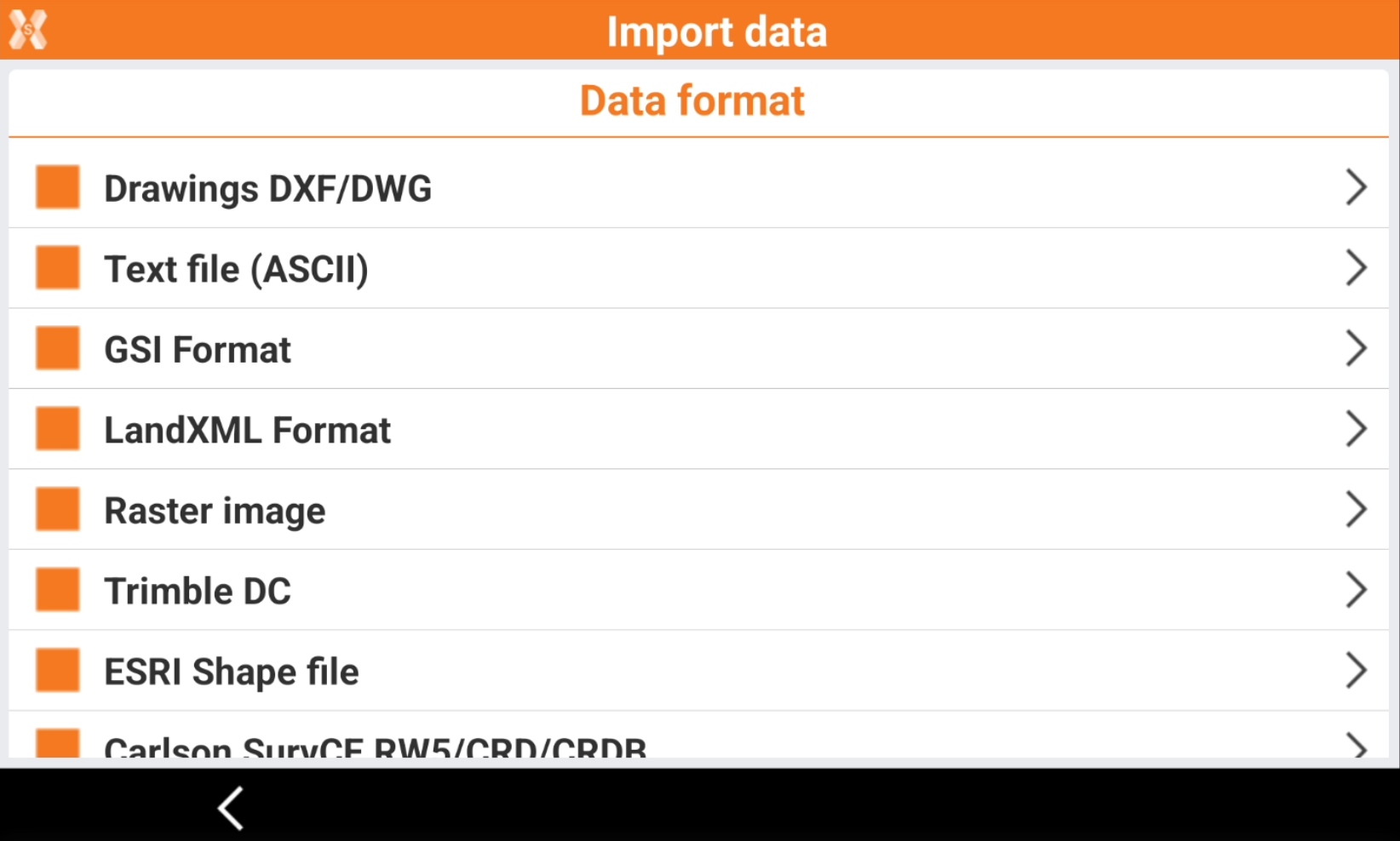

  • Select the data format to import.


    • Drawing DXF/DWG: imports a DXF/DWG file containing drawing information and points.

    • Text file (ASCII): imports a file of points or codes in text format. Import parameters can be saved in a template.

    • GSI format: imports a file from a standard GSI format.

    • LandXML format: imports points, drawings, surfaces and road design data from a standard LandXML file.

    • Raster image: loads a raster map to be used as background.

    • Trimble DC: imports points and GNSS calibration data from Trimble DC format.

    • ESRI shape file: imports points, polylines and polygons from ESRI shape files format.

    • Carlson SurvCE: imports points and GNSS calibration data from RW5/CRD/CRDB files format.

    • Sokkia SDR format: imports data from SDR Sokkia files format.

    • Google Earth KML/KMZ: imports data from Google Earth files in KML or KMZ format.

    • SBG Geo data GEO/PXY/TRM: imports data and surfaces from SBG Geo files in GEO/PXY/TRM format.

  • Select the file to import.

  • The data is imported in the current job.
