Connection to Zenith Manager

Zenith Manager for Windows

  • Turn on the Zenith16/40 receiver.

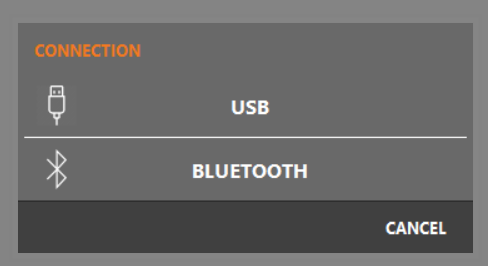

  • Click Connect and select bluetooth.

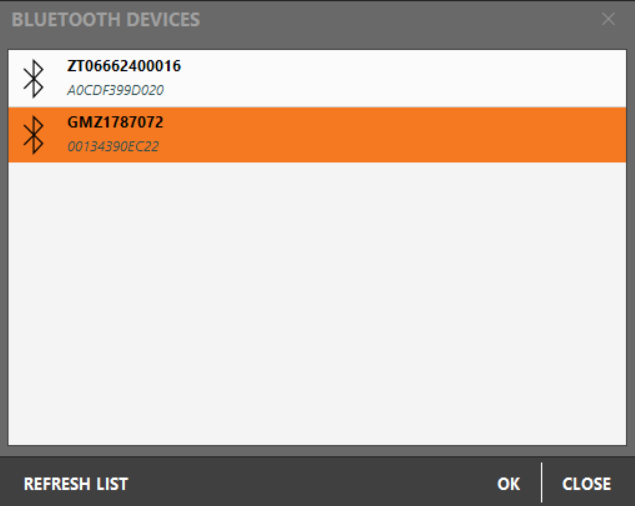

  • Select the Zenith16 receiver and click OK.

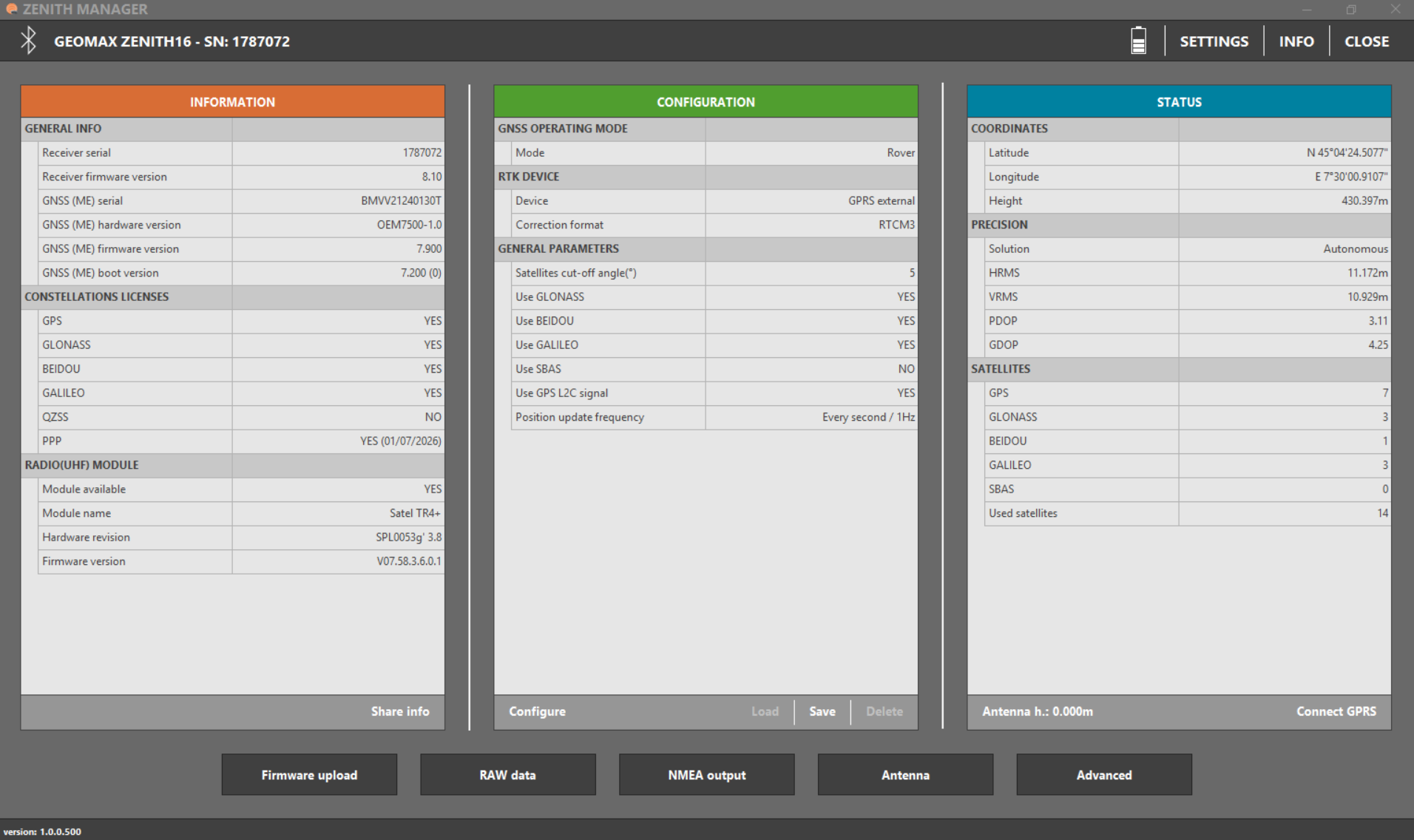

  • The software shows the receiver status.


    • Information: shows the information of the GNSS receiver.

    • Configuration: shows the current configuration of the receiver.

    • Status: shows the current status and position of the receiver.

  • The software offers some commands to configure the receiver and manage the receiver.

    • Share info: to save the receiver information on a file that is possible to share.

    • Configure: allows to configure the receiver.

    • Antenna h: allows to define the GNSS receiver antenna height.

    • Connect/disconnect GPRS: available after receiver is configured to connect to a NTRIP service. Allows to connect/disconnect to NTRIP caster to receive RTK corrections.

    • Load/Save/Delete: allows to load a saved instrument profile, to save the current profile and to delete one saved profile.

  • The buttons allows to perform different operations:

    • Firmware upload: to upload a new firmware to the receiver.

    • Raw data: to download raw data recorded in the microSD card.

    • NMEA output: to start the NMEA output.

    • Antenna: to create new antenna models to the receiver database.

    • Advanced: to upload new license keys.

Zenith Manager for Android

  • Turn on the Zenith16/40 receiver.

  • Click Connect receiver.

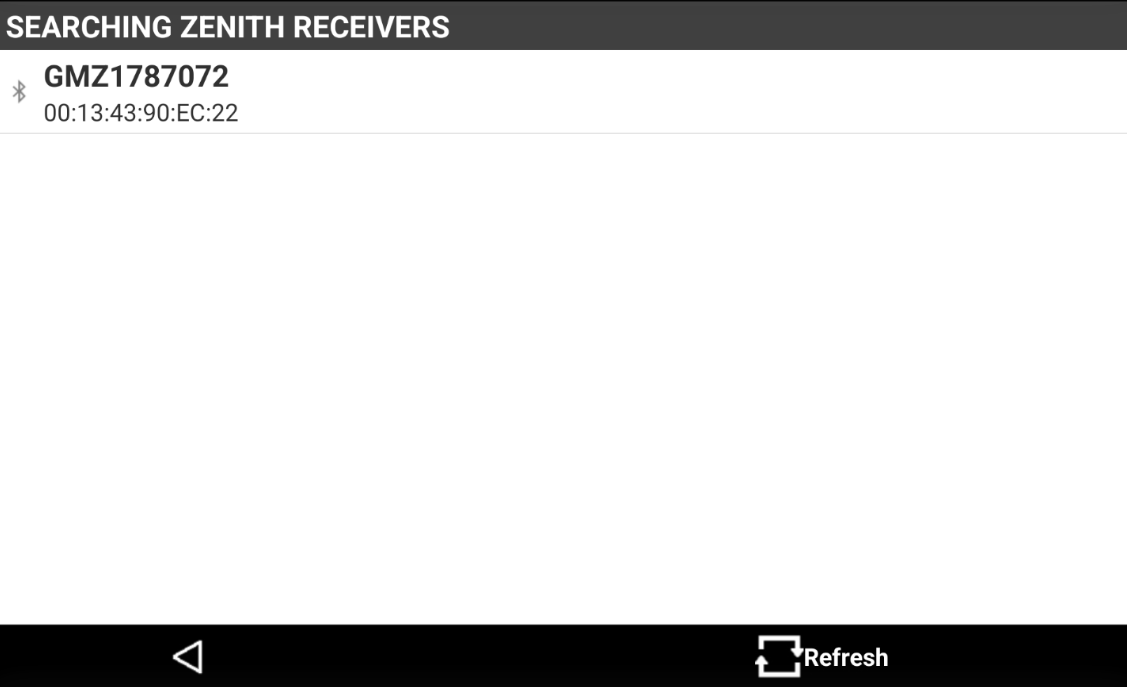

  • Click Search and select the serial number of the instrument.

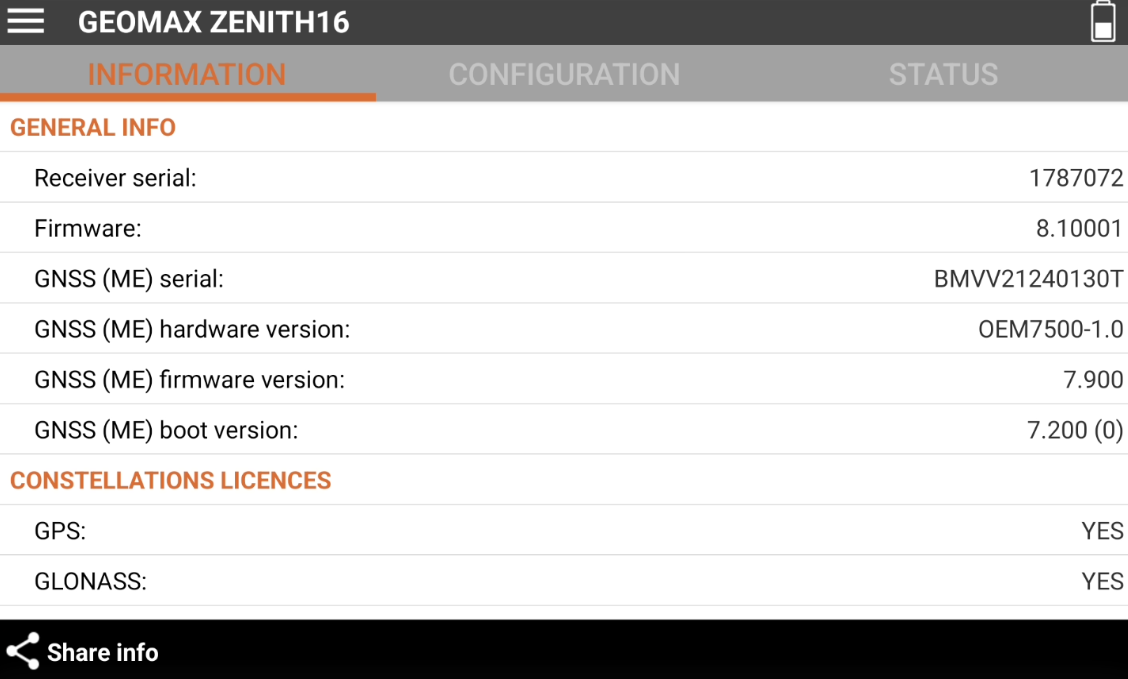

  • Receiver is connected.


    • Information: shows the information of the GNSS receiver.

    • Configuration: shows the current configuration of the receiver.

    • Status: shows the current status and position of the receiver.

  • The software offers some commands to configure the receiver and stream the NMEA.

    • Share info: to save the receiver information on a file that is possible to share.

    • Configure: allows to configure the receiver.

    • Connect/disconnect GPRS: available after receiver is configured to connect to a NTRIP service. Allows to connect/disconnect to NTRIP caster to receive RTK corrections.

    • Load/Save: allows to load a saved instrument profile and to save the current profile.

    • Antenna h: to modify the height of the antenna.

  • The toolbar allows to perform different operations:

    • Firmware upload: to upload a new firmware to the receiver.

    • Raw data: to download raw data recorded in the microSD card.

    • Static survey: to start static survey from Zenith Manager.

    • NMEA output: to start the NMEA output.

    • New antenna: to create new antenna models to the receiver database.

    • Advanced: to upload new license keys.
