Vertex symbols

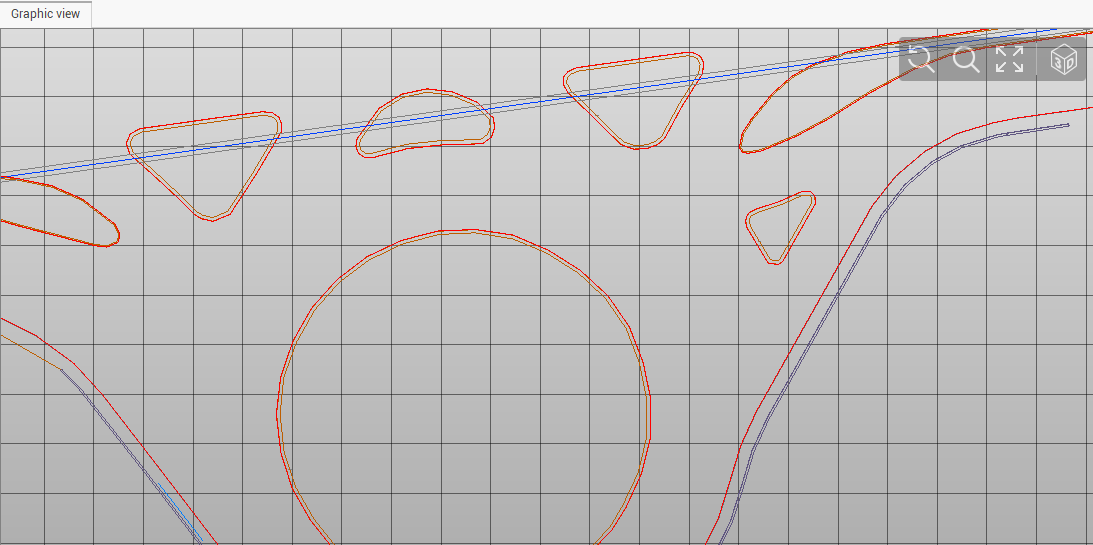

  • The Vertex symbols function allows to show/hide a symbol for each vertex in the drawing.

This function is also very useful to identify elements in imported drawings, especially when objects are very far apart.


  • Click View.

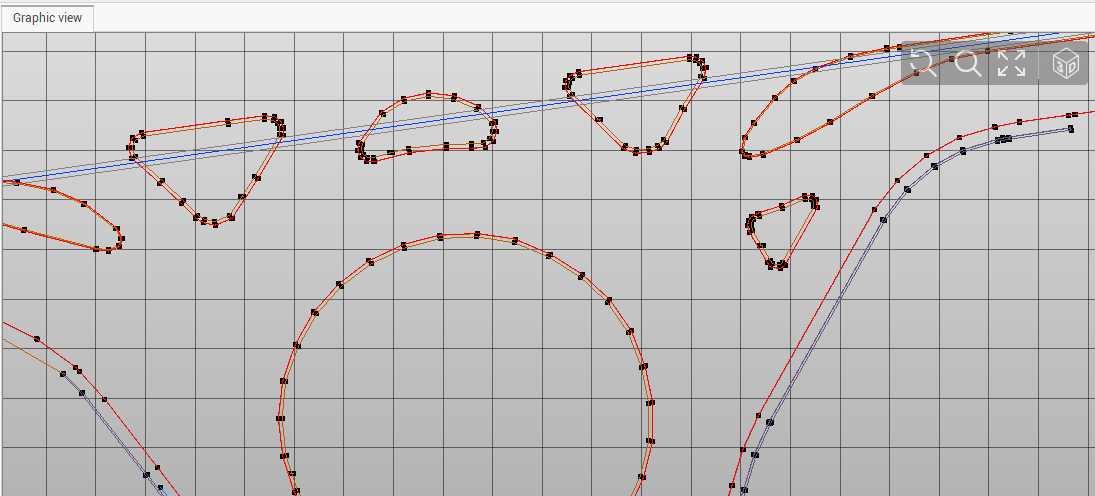

  • Click Vertex symbols to show a symbol for each vertex in the CAD drawing.
