Add ramp

The function Add ramp creates a ramp surface to an excavation surface by selecting the polyline that defines the edge of the ramp

  • Click Design 3D.

  • Click Ramp.


  • The function opens a new panel on the right.


    • Surface result: the surface subproject where ramp surface is created. Can be a new surface or an existing surface.

    • Layer: the layer for the new surface.

    • Color: the color of the new surface.

    • Ground surface: the existing excavation surface.

    • Ramp width: the width of the ramp. Click image-20250115-102712.png to pick the distance from the CAD.

    • Cut slope: the slope of the ramp side sideslope, in case the of cut. Click image-20250115-102712.png to pick the slope from the CAD.

    • Fill slope: the slope of the ramp side sideslope, in case the of fill. Click image-20250115-102712.png to pick the slope from the CAD.

    • Round corners: to round the sideslope corners

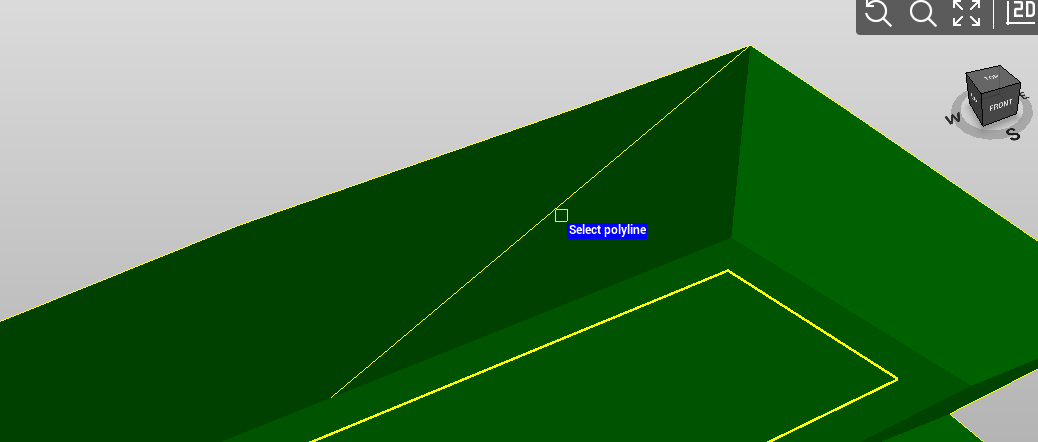

  • Select the polyline that represents the edge of the ramp.

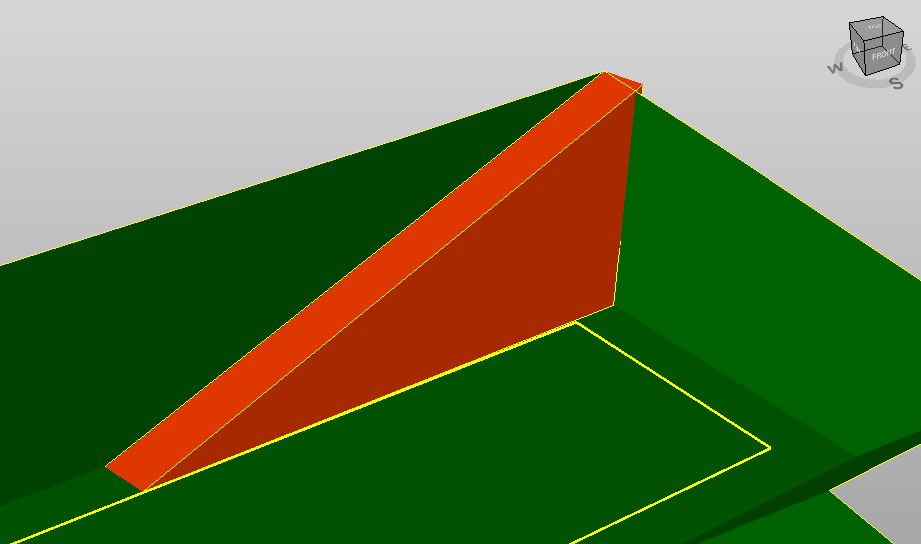

  • Specify the sideslope direction to generate the surface.
