Sideslope between two polylines

The function Sideslope between two polylines calculates the surface between two 3D polylines.

• Click Design 3D.

• Click Two polylines.



• The function opens a new panel on the right.



  • Surface result: the surface subproject where sideslopes are created. Can be an existing or a new surface.

  • Layer: the layer for the new surface.

  • Color: the color of the new surface.

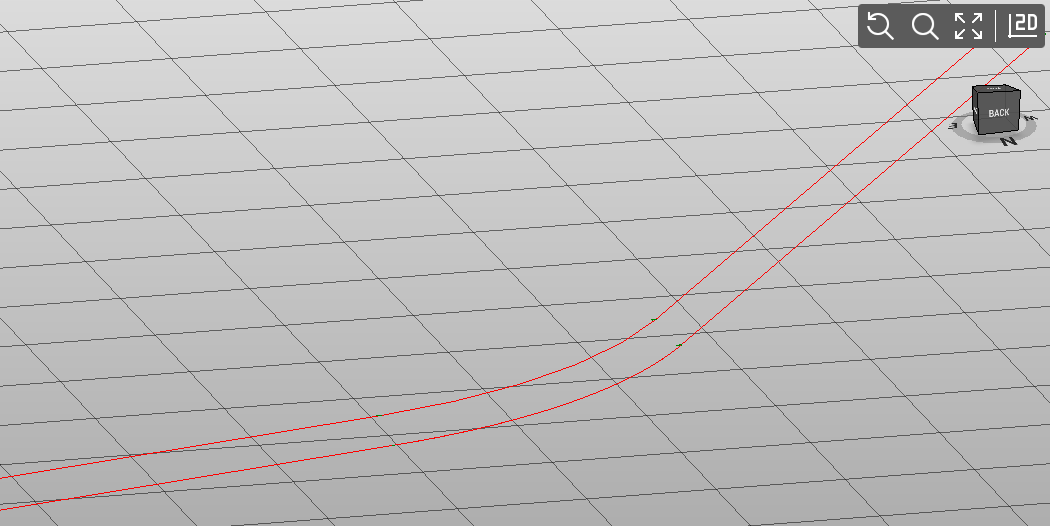

• Select the two polylines in CAD.

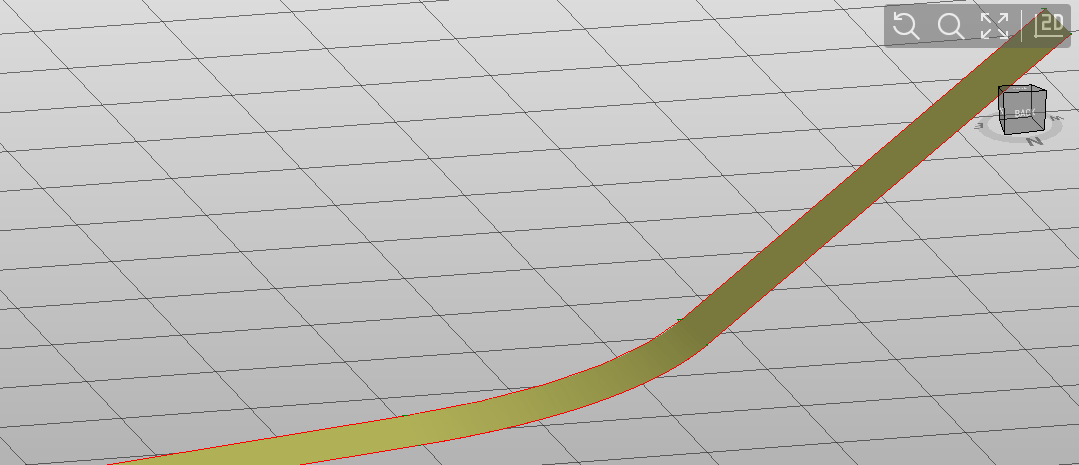

• Confirm the selection to create the surface.
