The polyline tool Lay to surface is used to lay a selected polyline on a selected surface, this operation creates new vertices on the polyline to follow the shape of the triangles.
-
Click Design 3D.
-
Click Lay to surface.
-
The function opens a new panel on the right.
-
Ref. surface: the reference surface on which to place the polyline.
-
-

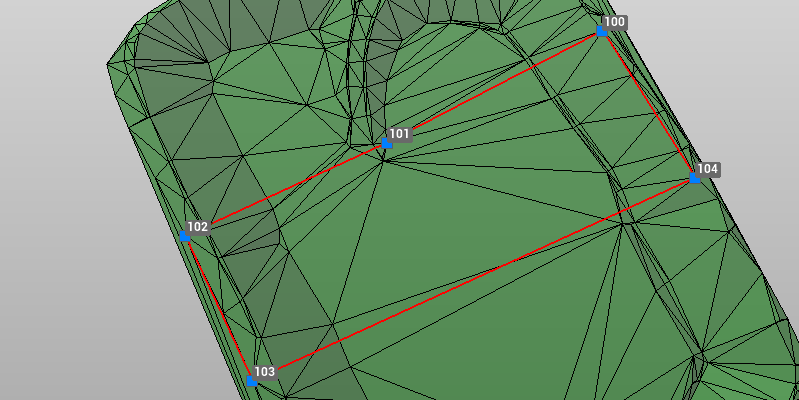

Select the polyline in CAD.
-

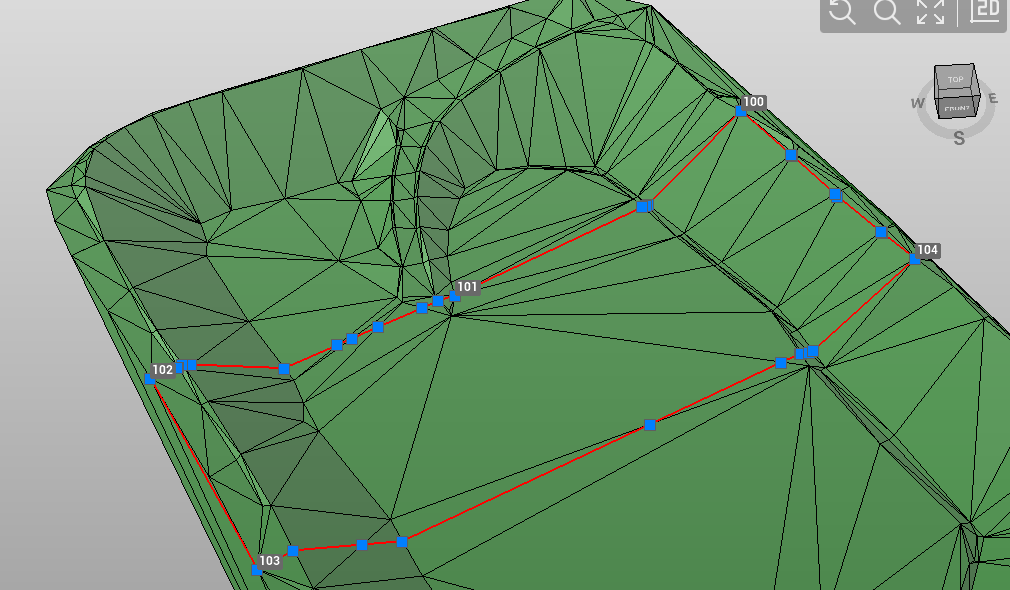

The polyline is updated and new vertices are created.
