Stakeout with GNSS receiver

| |

• To stakeout a point or geometry with a GNSS receiver open the corresponding function.

Stakeout procedure

• Follow the indications until the stakeout page is opened.

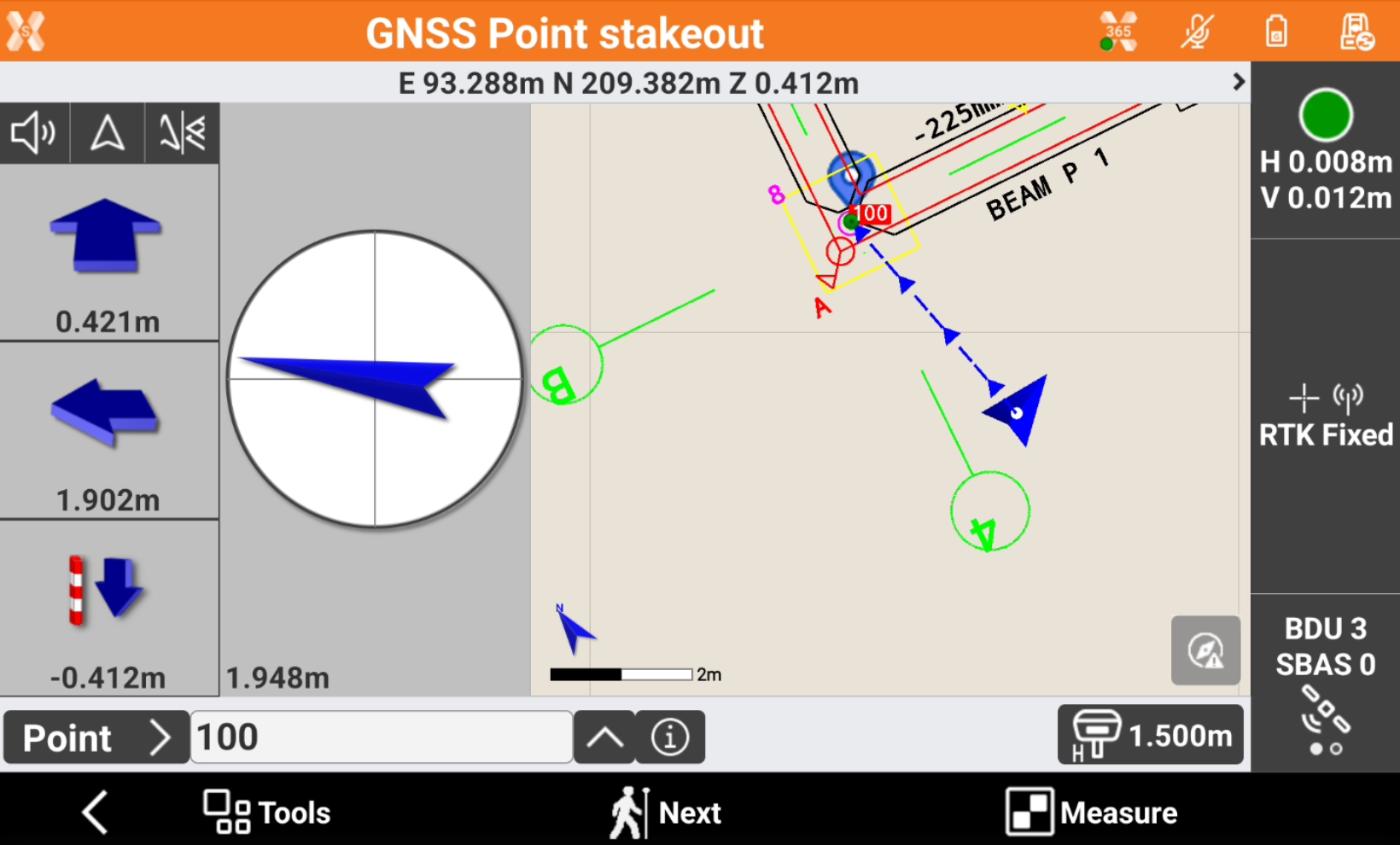

• The left panel shows the indications to the coordinate to stakeout referred to the selected Stakeout reference for GNSS receivers .

• Depending on the View mode selected, the interface shows the compass with the direction or the CAD view or both.

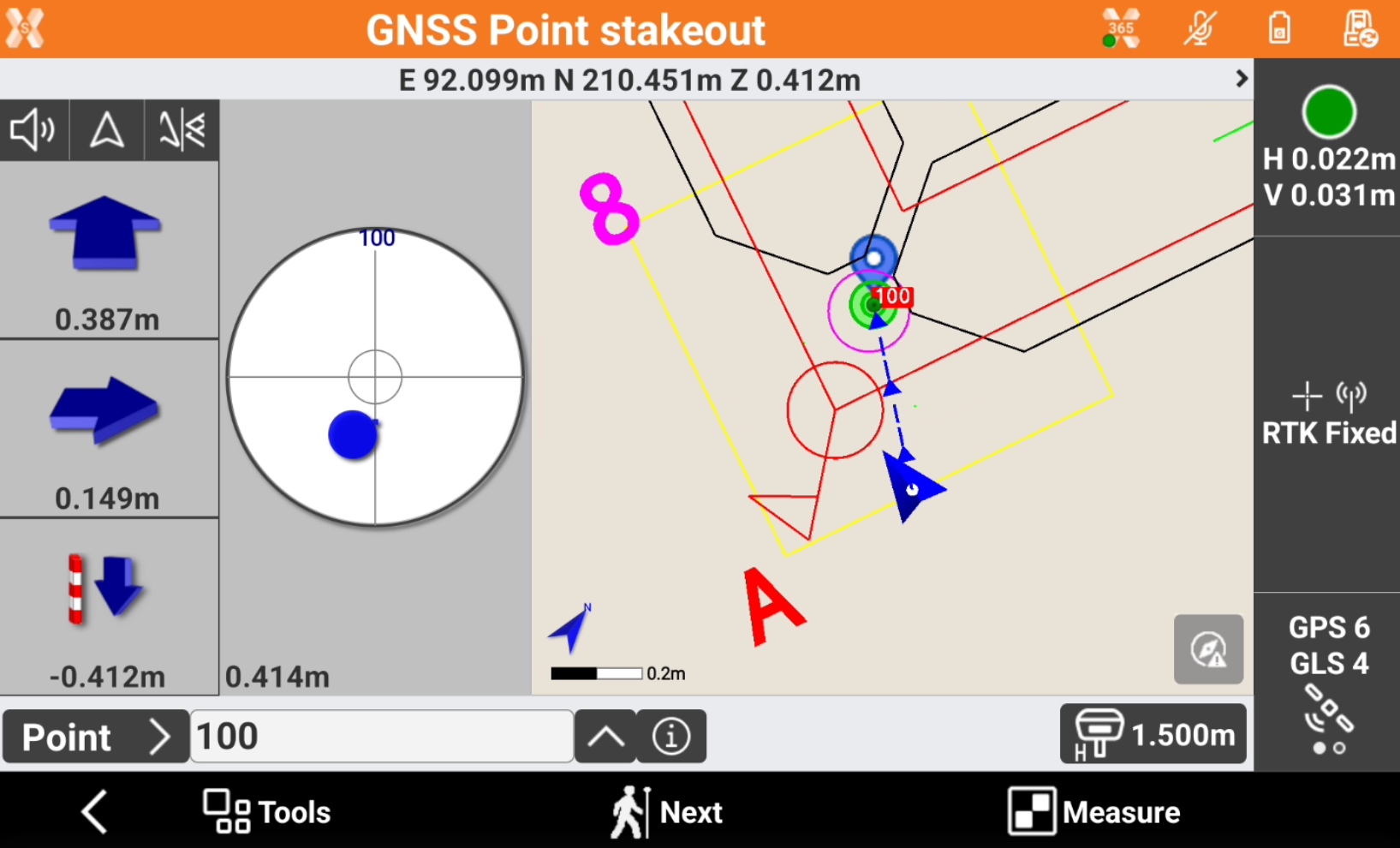

• Approaching the point, the compass view changes to offer a better view to precisely stakeout the point and the CAD view automatically increase the zoom level.

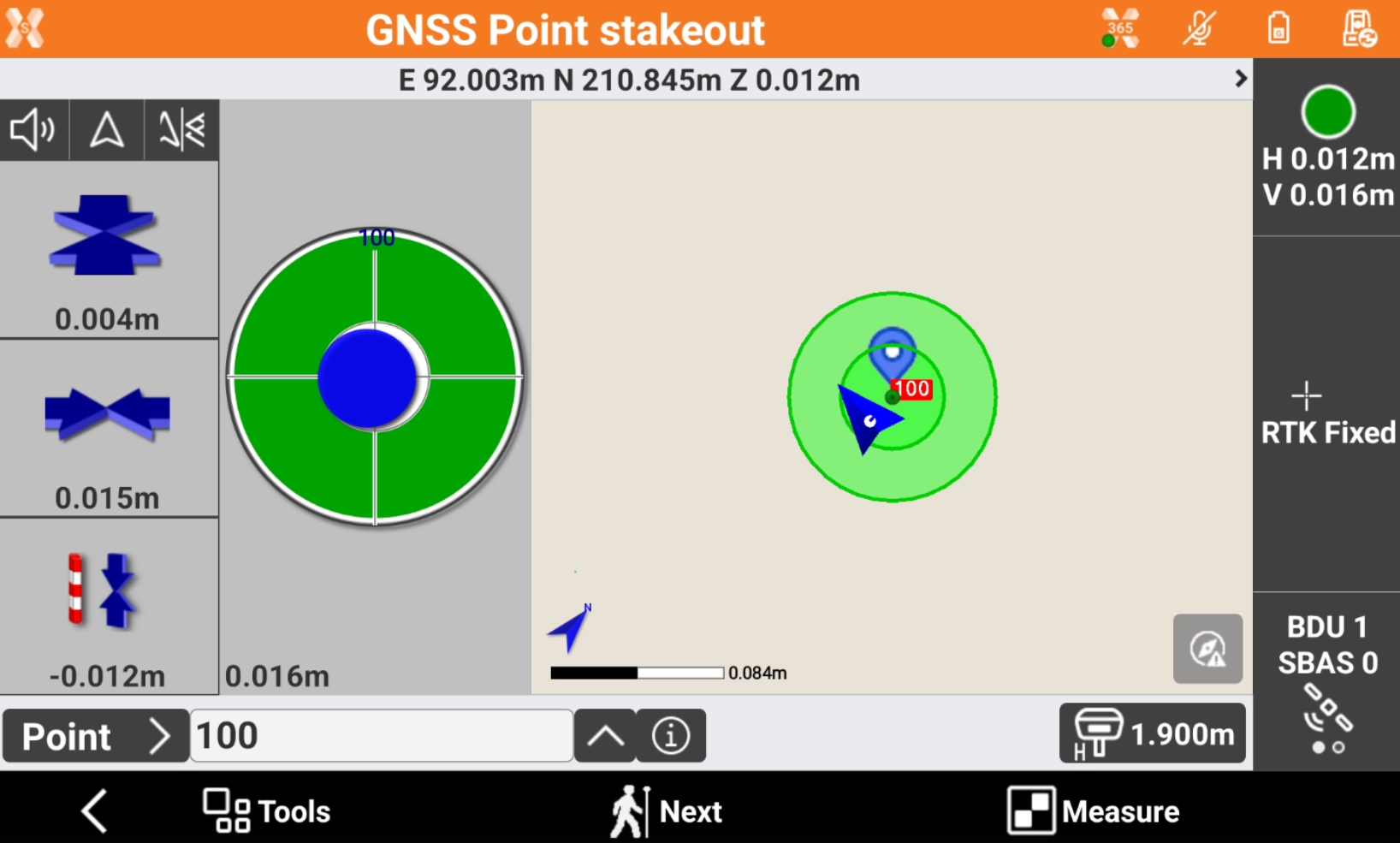

• If the stakeout distance is within the defined tolerance the compass view is in green.



Record the stakeout measurement

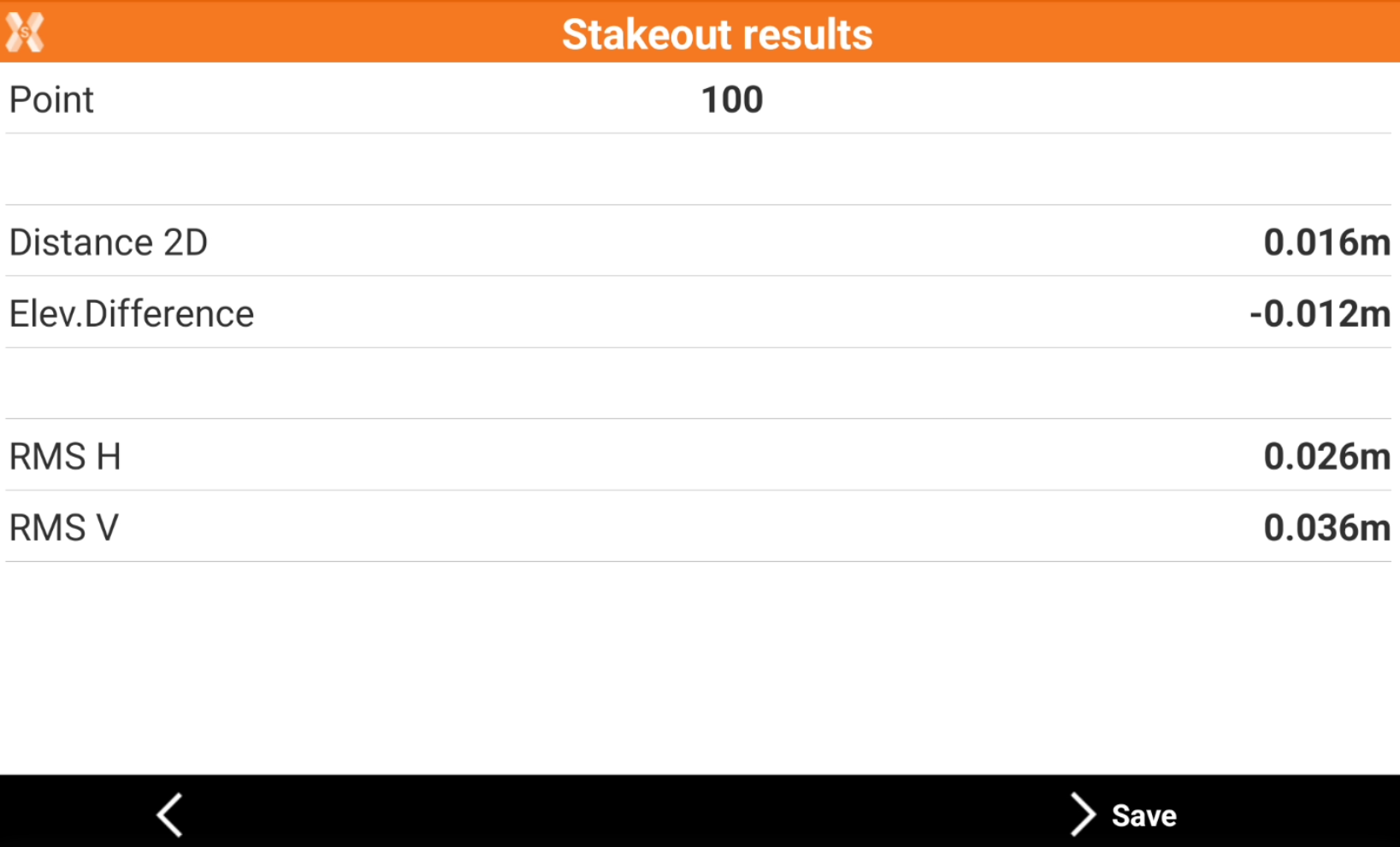

• Press Measure to record the stakeout measurement and display the Stakeout results.



• Press Save to proceed to save the point.

Data page

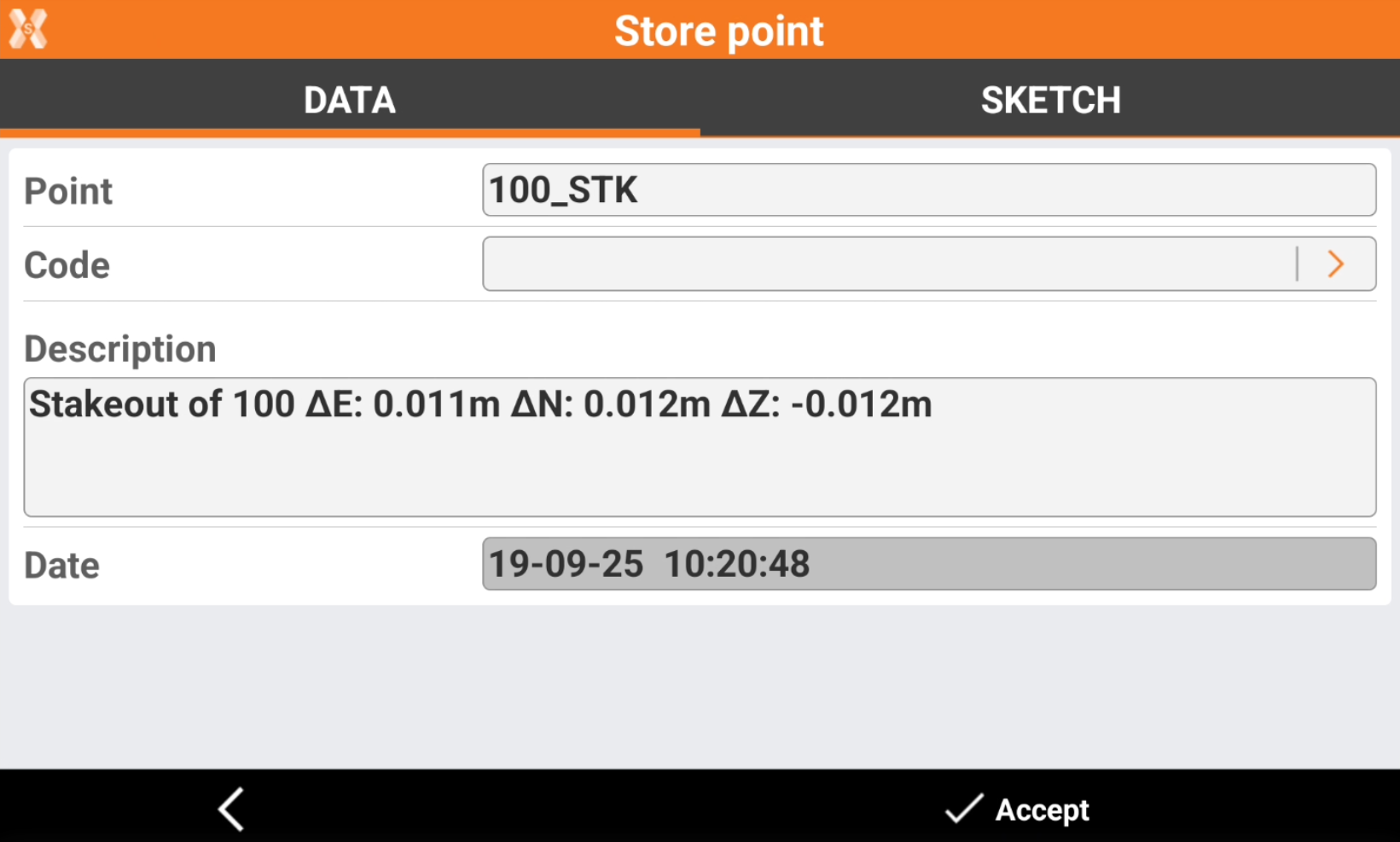

• The Data page shows the main point information.



  • Point: name of the point to store.

  • Code: code assigned to the point.

  • Description: extended description associated to the stakeout. The software automatically writes the main stakeout information.

Sketch page

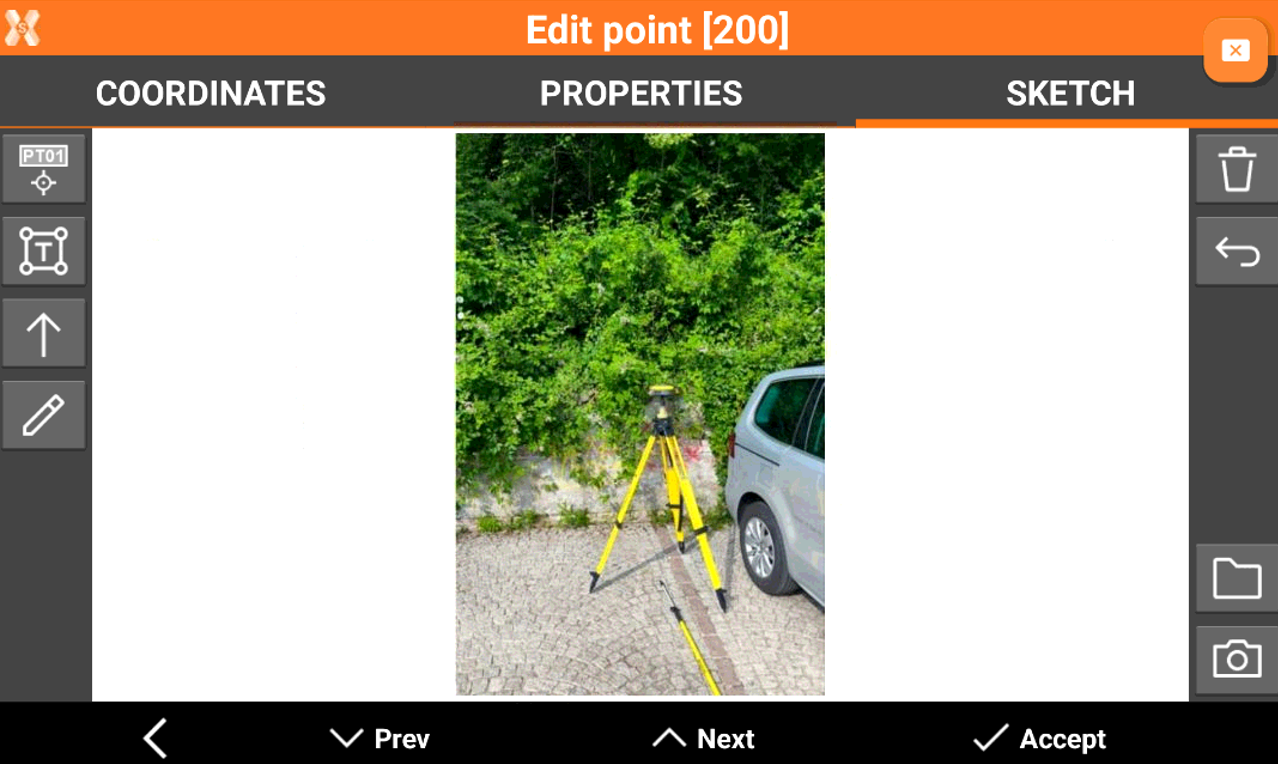

• Sketch page allows to view the photo assigned to a point, load or take a new photo or draw on the image to have a picture of the topographic point.

•

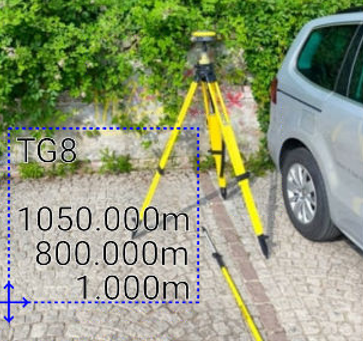

• : creates a text box with point name, coordinates and codes on the picture. Select and drag to move the text box.



• : creates a text box with free text. Select and drag to move the text box.

• : creates an arrow. Select and drag to move the arrow. Click on to change icon to rotation to rotate the arrow.



• : enables the free drawing mode.

• : deletes sketch and photo.

• : restores original content

• : loads a photo from the controller internal memory. The image must be in the Images folder and has to be in .jpg or .jpeg format.

• : starts the application allowing to shoot a photo and save it.
