Intersection

| |

• Calculates coordinates of a point on the intersection between straight lines.

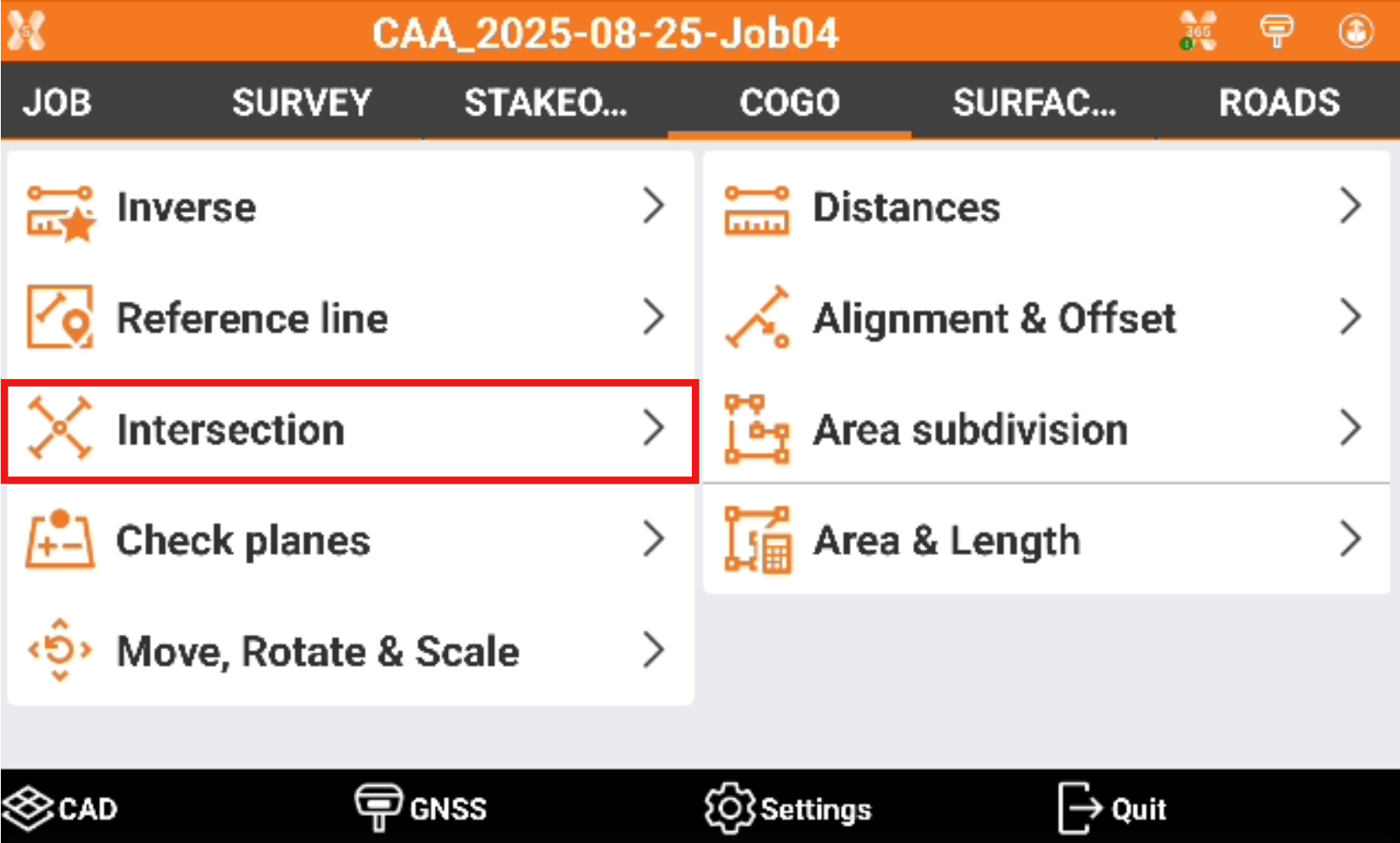

• Click COGO.

• Click Intersection.



• Select the intersection method.

  • Double distance: the intersection position is calculated based on two distances referring to two reference points.

  • Distance and Azimuth: the intersection position is calculated based on the distance of a reference point along a straight line and a second reference point.

  • Double Azimuth: the intersection position is calculated on the intersection of two straight lines and two reference points.

  • 4 points: the intersection position is calculated on the intersection of two straight lines and four reference points.

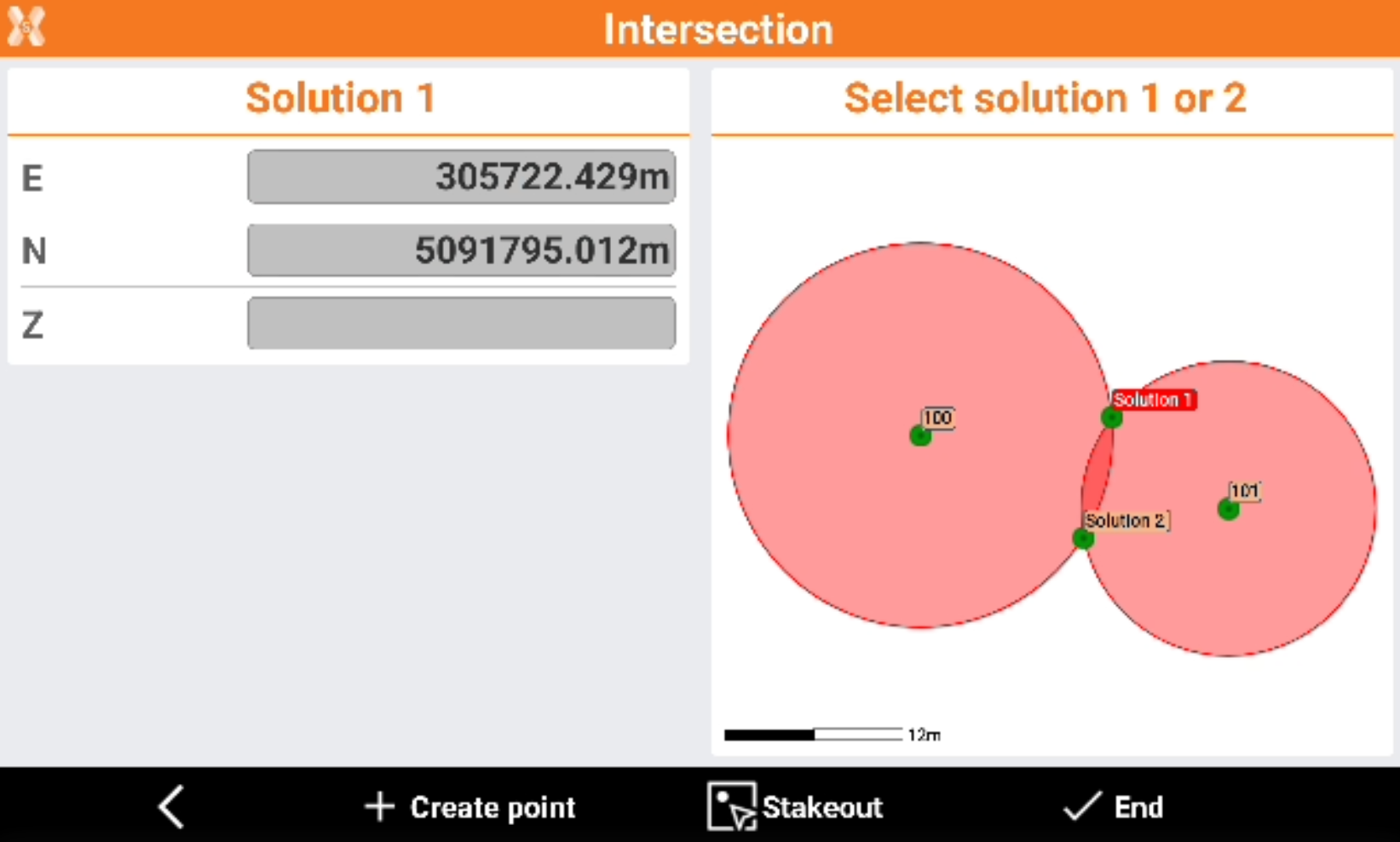

Double distance

• The intersection position is calculated based on two distances referring to two reference points.

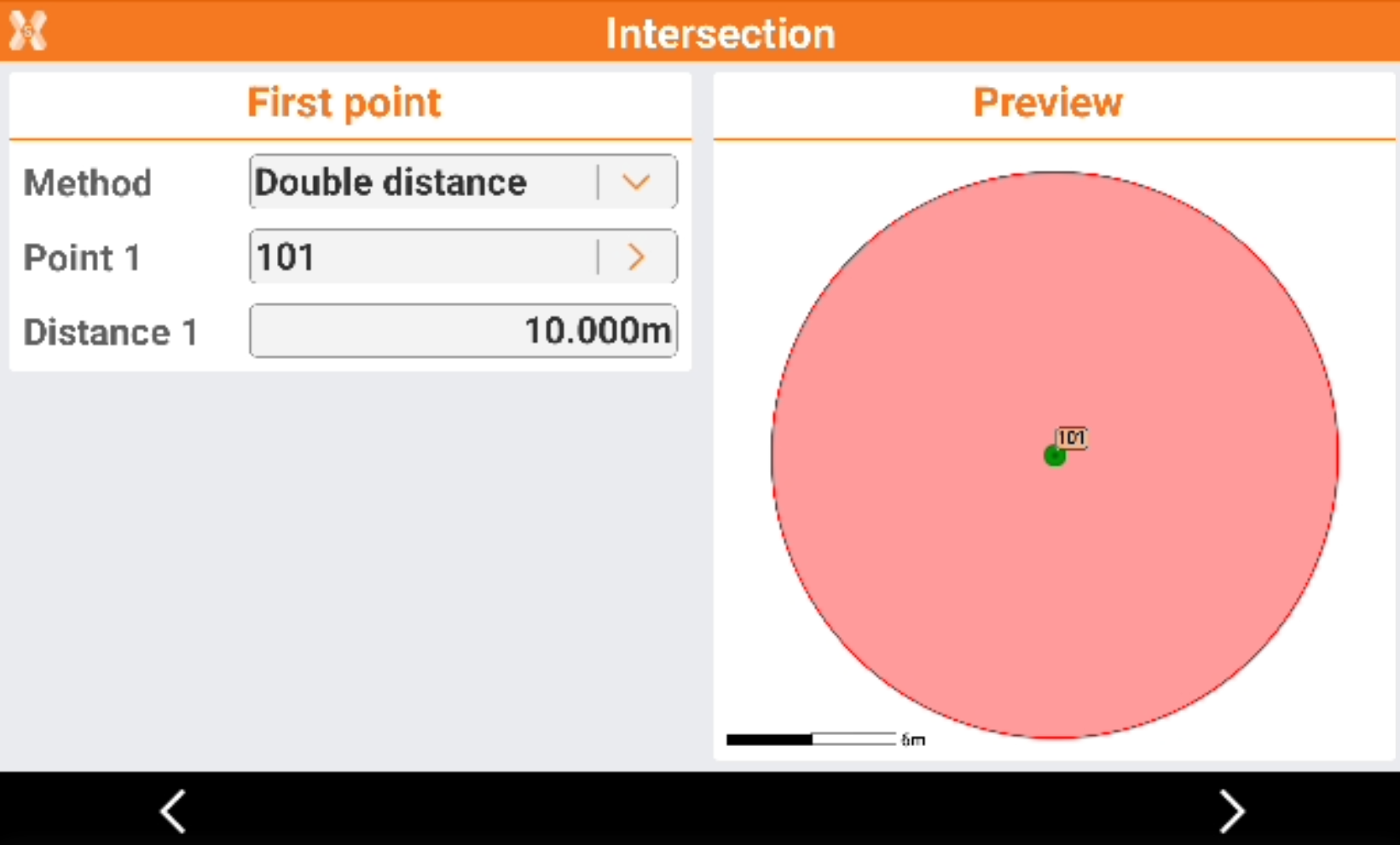

• Select the first point and the distance from first point.

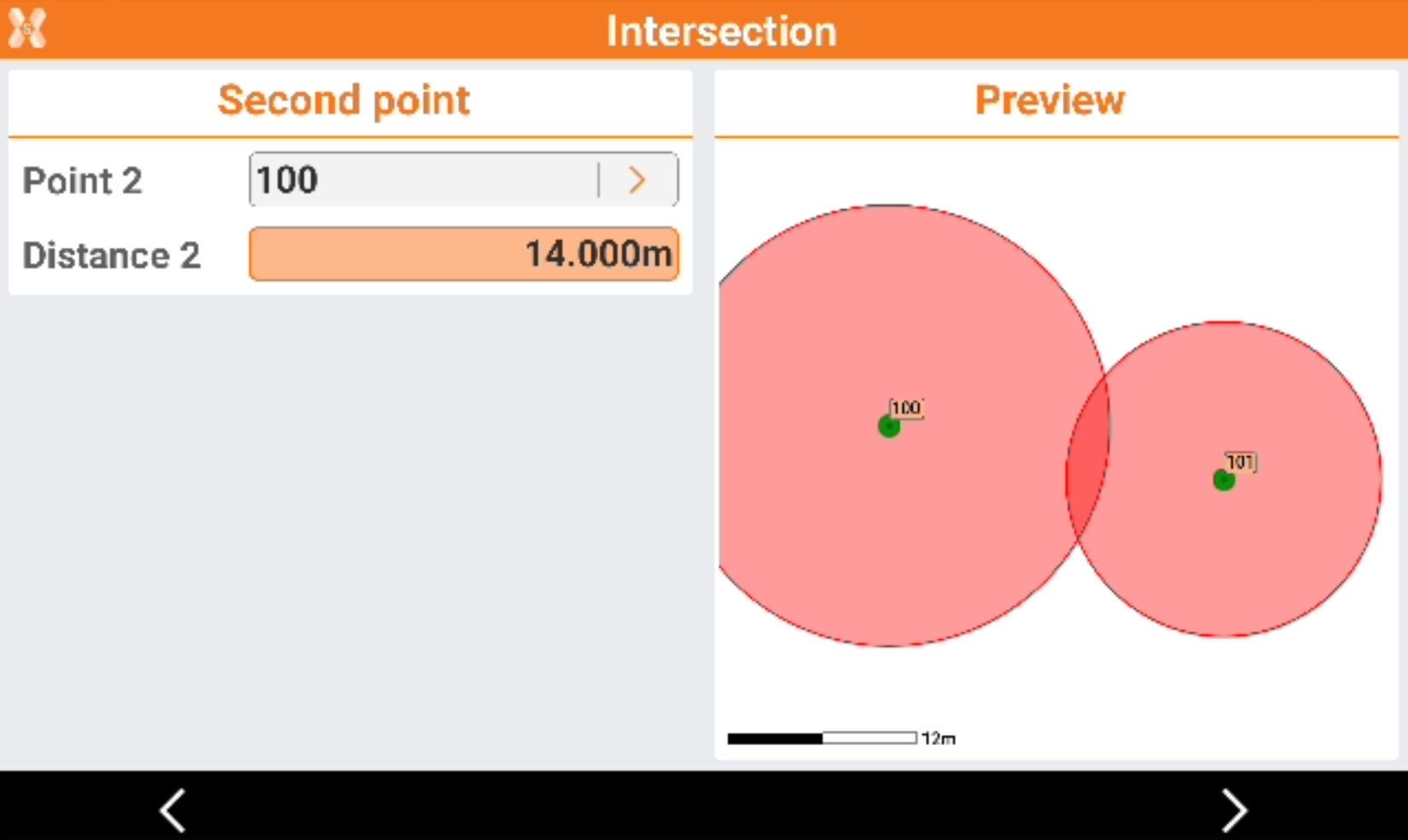

• Select the second point and the distance from second point.



• The two possible solutions are displayed. Select the desired solution in the graphic window.



• Click Create point to activate the creation of the calculated point.

• Click Stakeout to activate the stakeout procedure for the calculated point.

Distance and azimuth

• The intersection position is calculated based on the distance of a reference point along a straight line and a second reference point.

• Select the first point and the distance from first point.

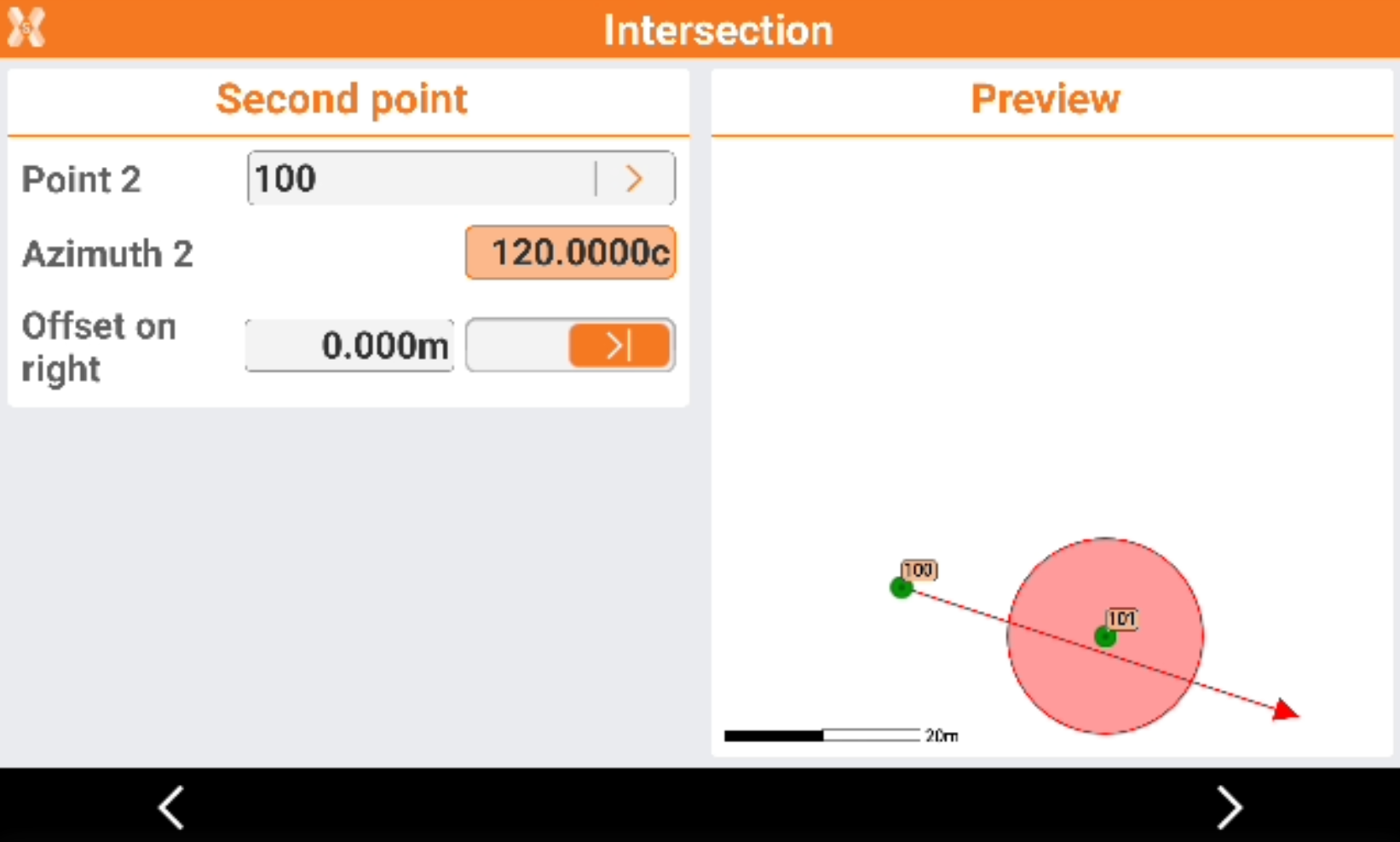

• Select the second point and azimuth and offset from the second point.

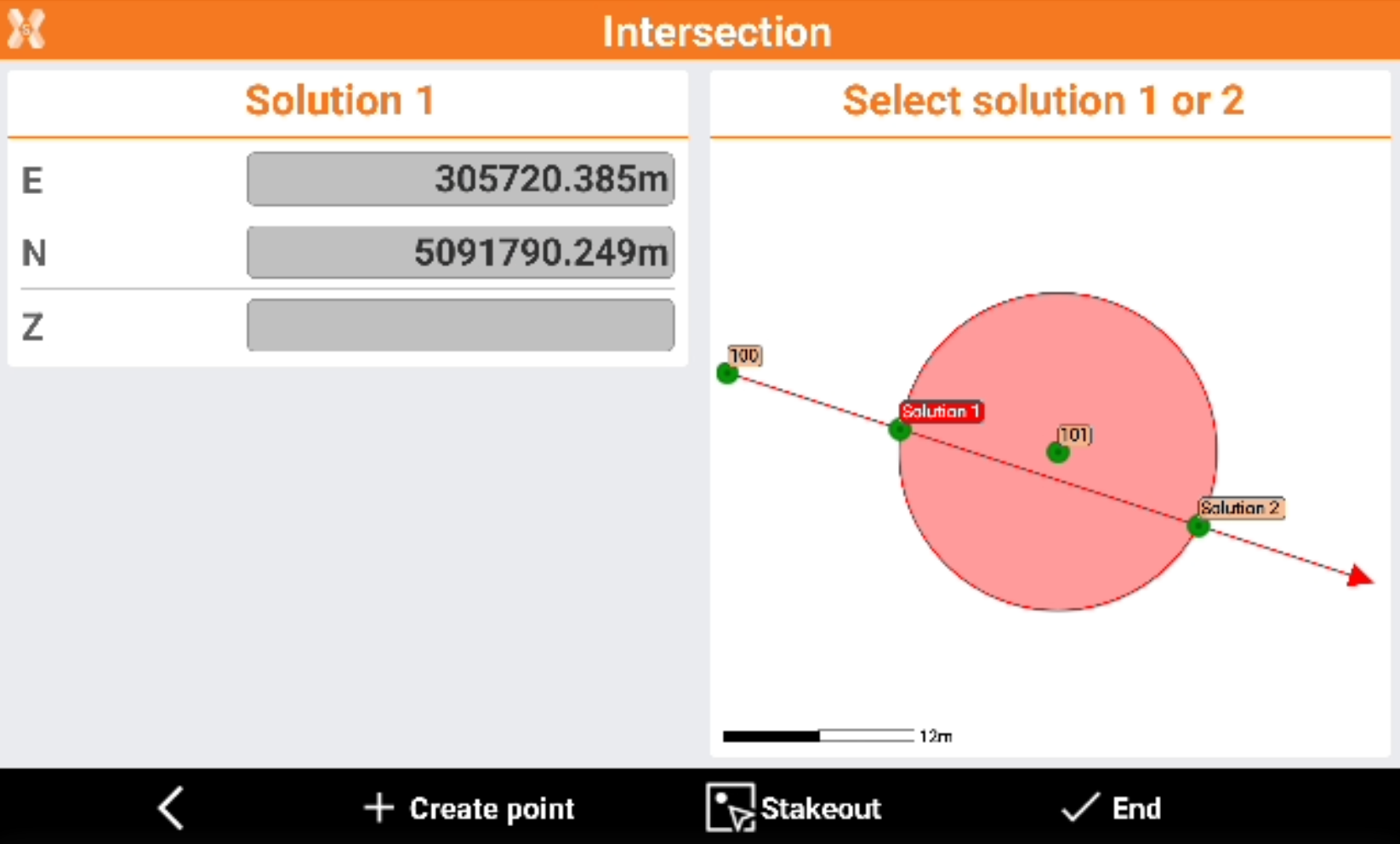

• The two possible solutions are displayed. Select the desired solution in the graphic window.



• Click Create point to activate the creation of the calculated point.

• Click Stakeout to activate the stakeout procedure for the calculated point.

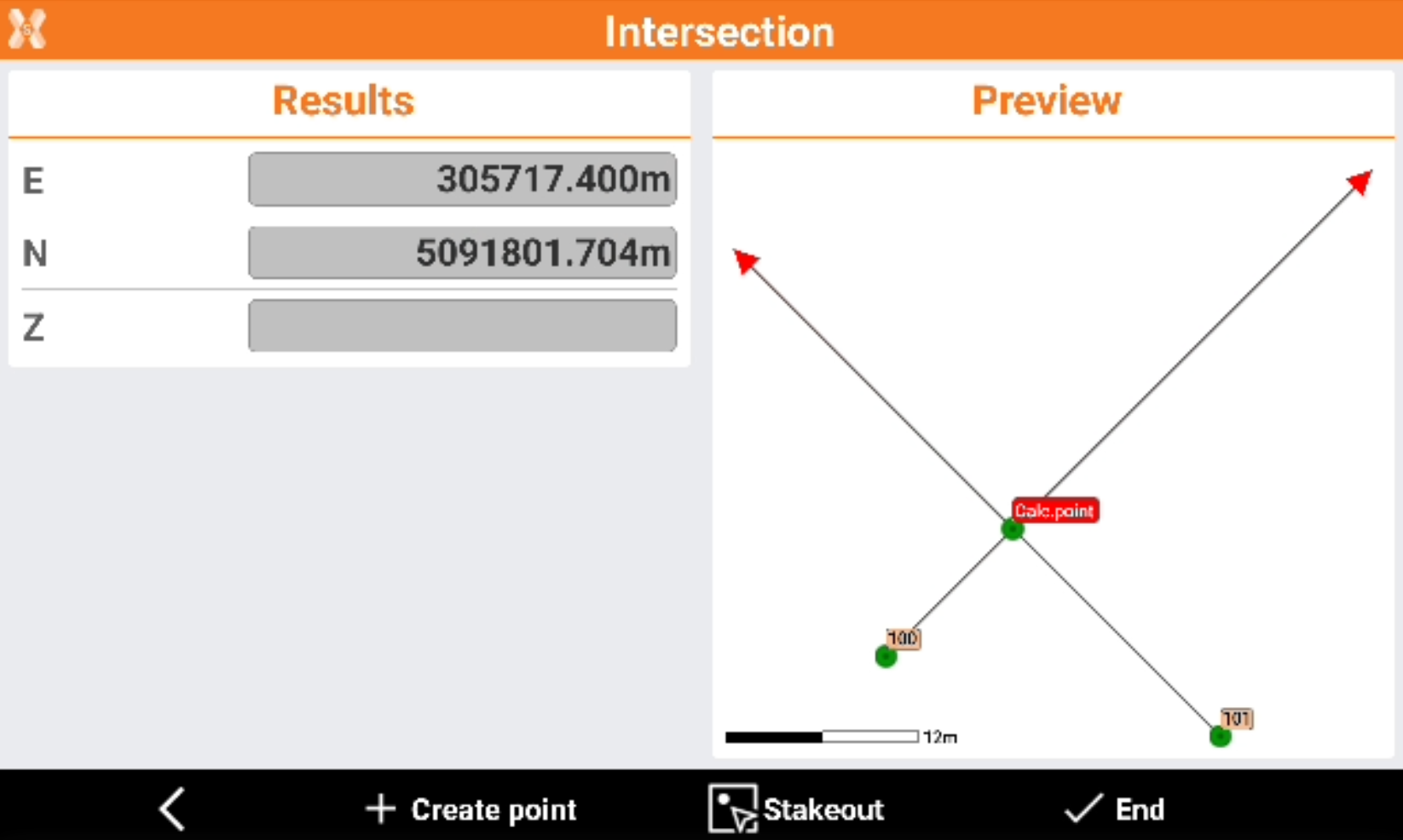

Double azimuth

• The intersection position is calculated on the intersection of two straight lines and two reference points.

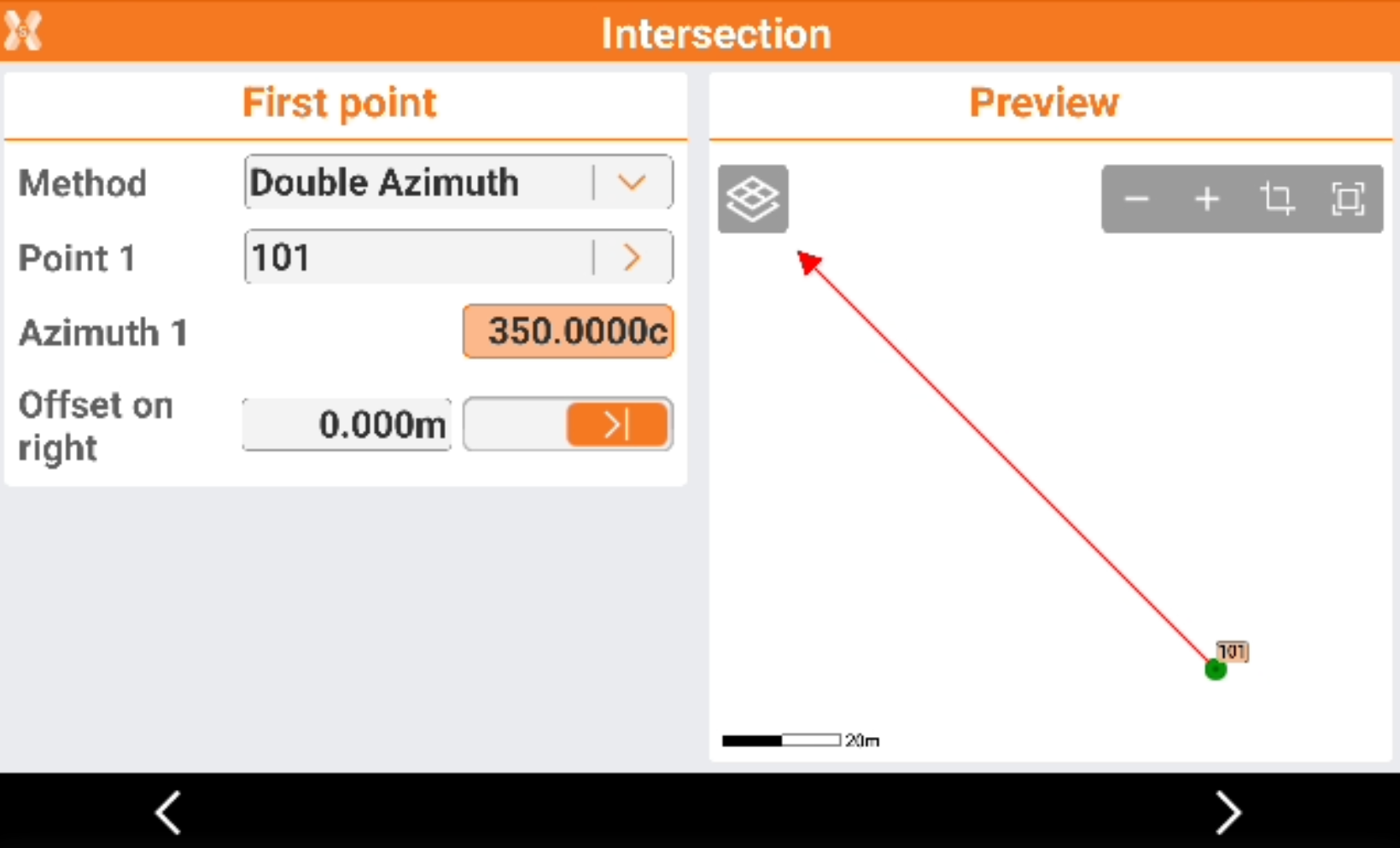

• Select the first point and azimuth and offset from the first point.

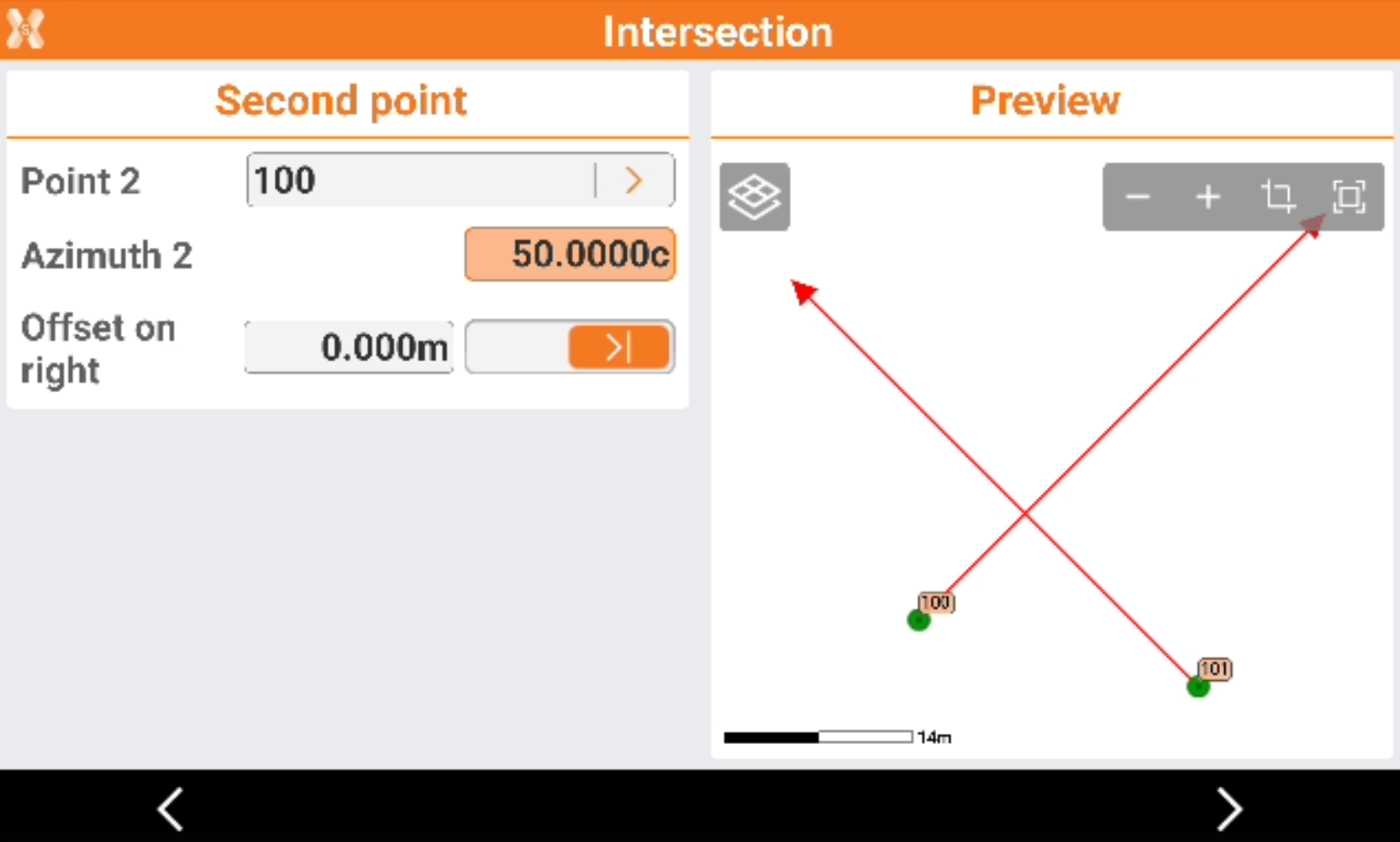

• Select the second point and azimuth and offset from the second point.



• The software shows the calculated point.



• Click Create point to activate the creation of the calculated point.

• Click Stakeout to activate the stakeout procedure for the calculated point.

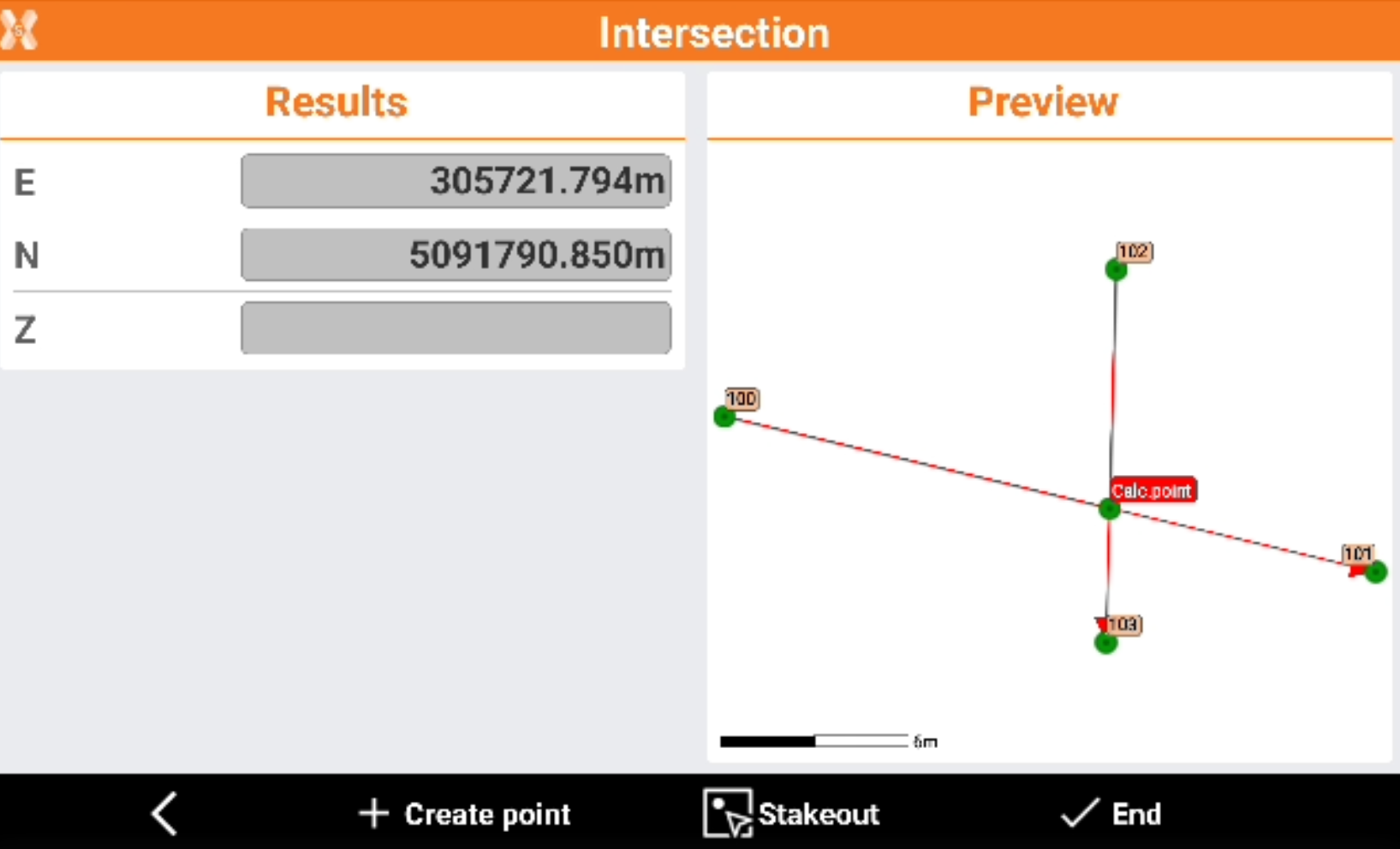

4 points

• The intersection position is calculated on the intersection of two straight lines and four reference points.

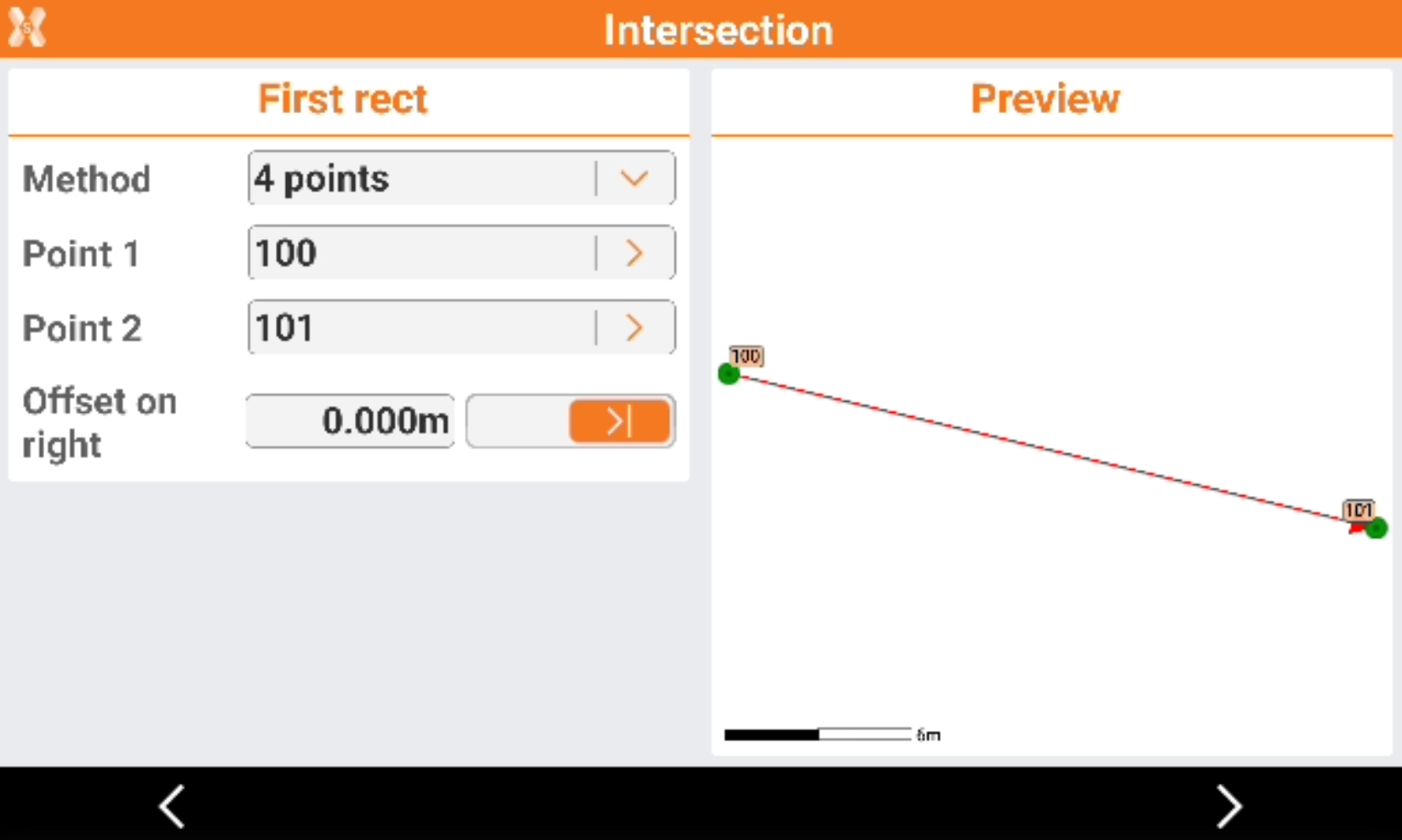

• Select the first two reference points. The line connecting the two points is visualized. You can enter an offset to the calculate line.

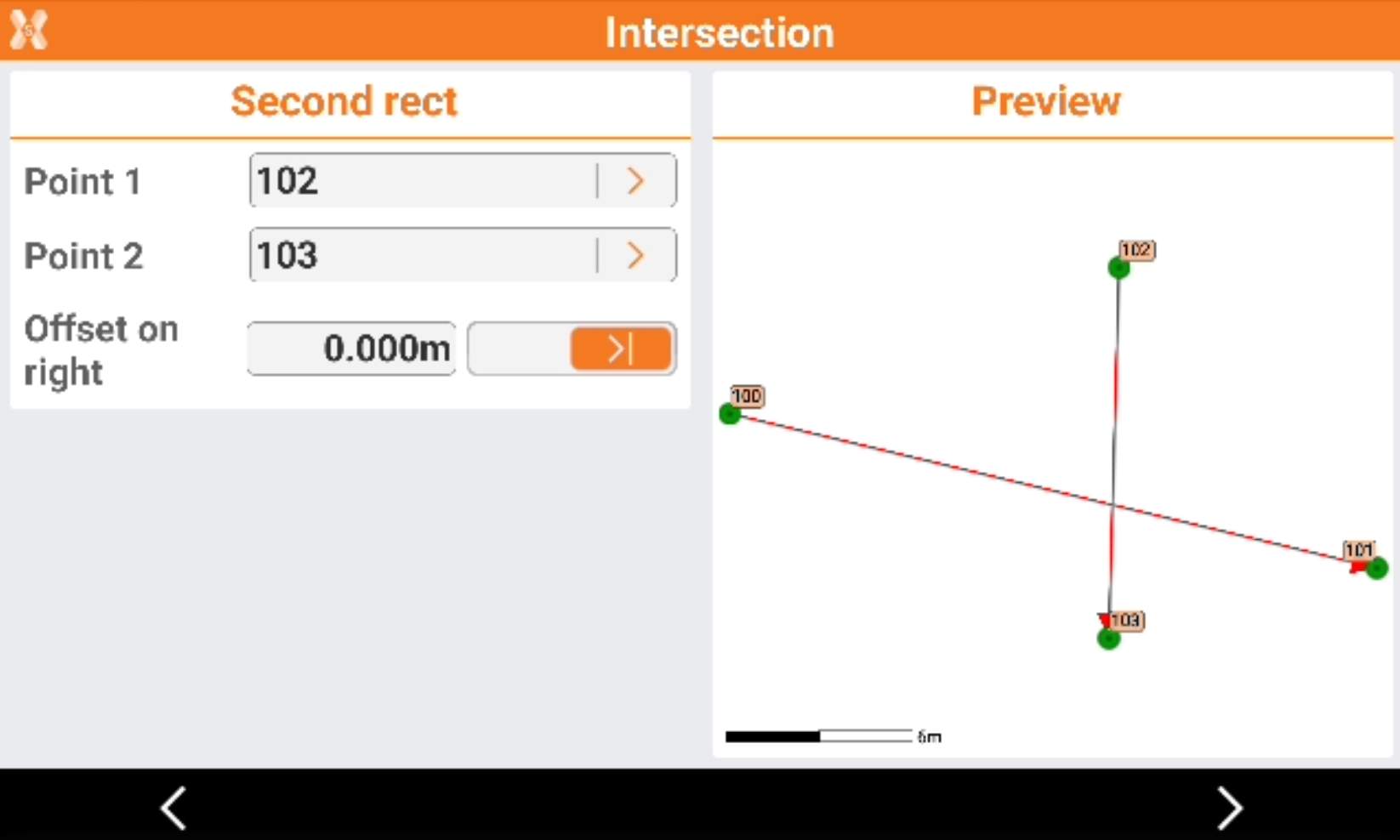

• Select the others two reference points. The line connecting the two points is visualized. You can enter an offset to the calculate line.



• The software shows the calculated point.



• Click Create point to activate the creation of the calculated point.

• Click Stakeout to activate the stakeout procedure for the calculated point.
