Inverse

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png

  • The inverse function allows to quickly calculate the distance and other information between two points.

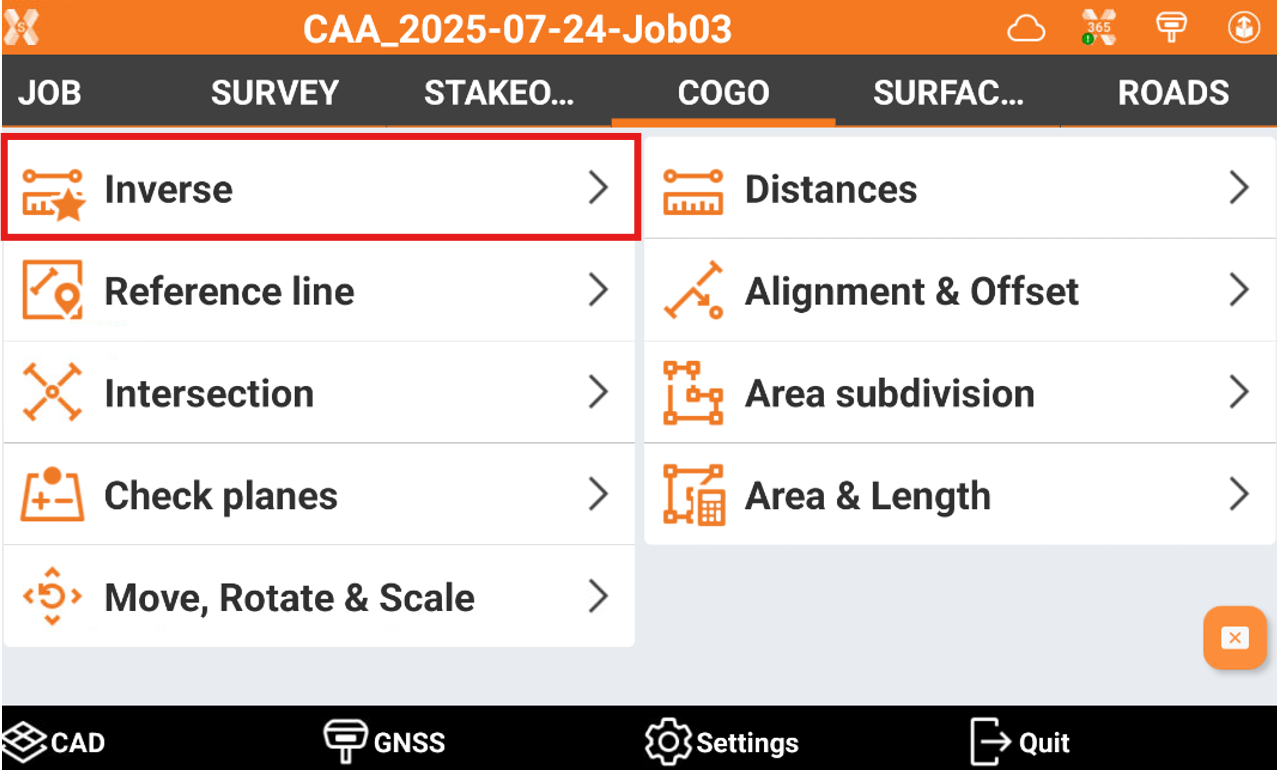

  • Click COGO.

  • Click Inverse.

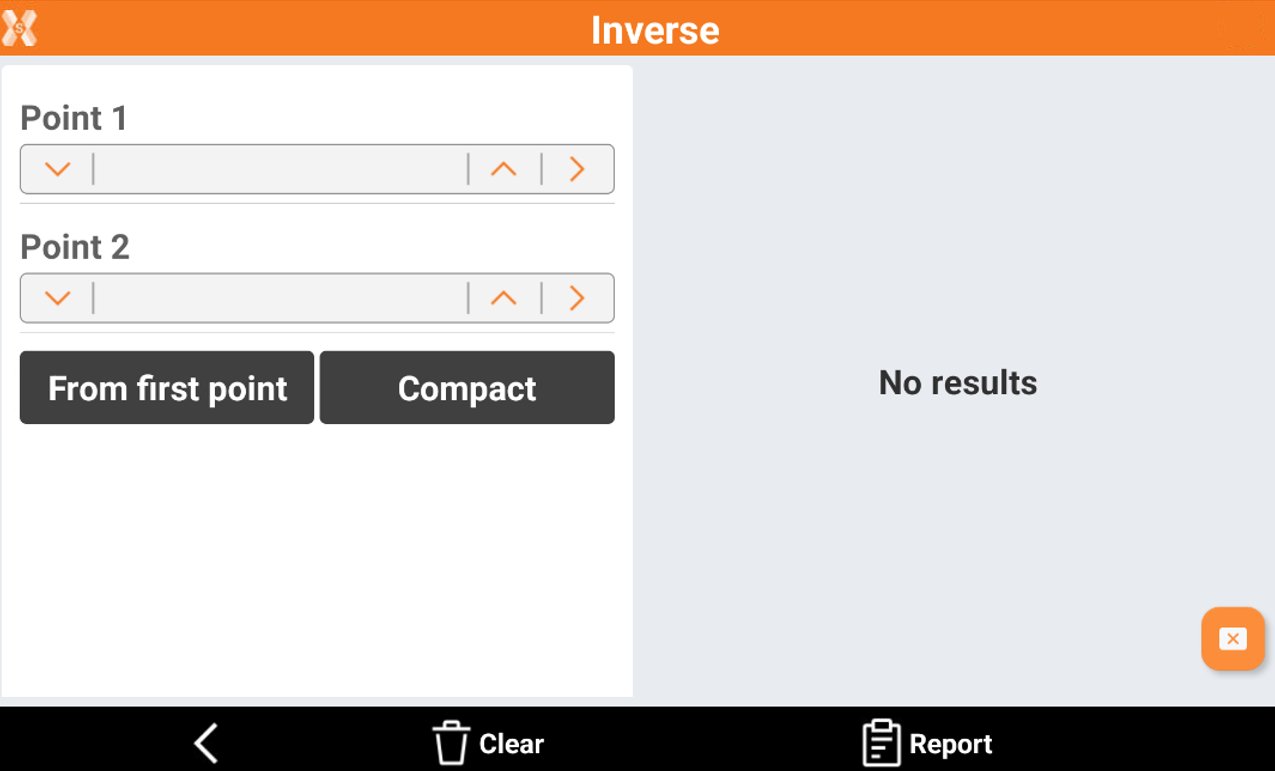

  • In the next page it is required to select Point 1 as starting point and Point 2 as ending point.


  • Click image-20250725-080518.png to select the point from CAD, from the list of points in the job, or to measure a new point with the current instrument.

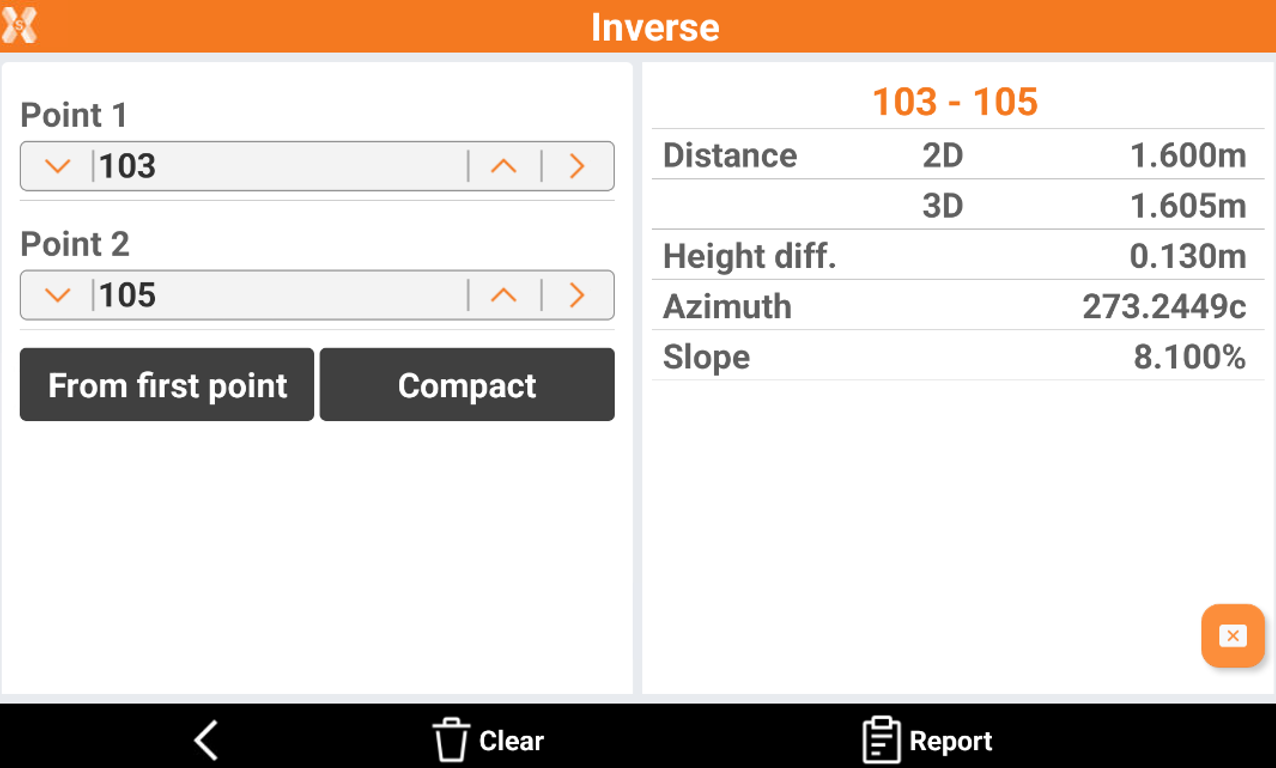

  • After the two points have been measured or selected, the result is visible in the right panel.

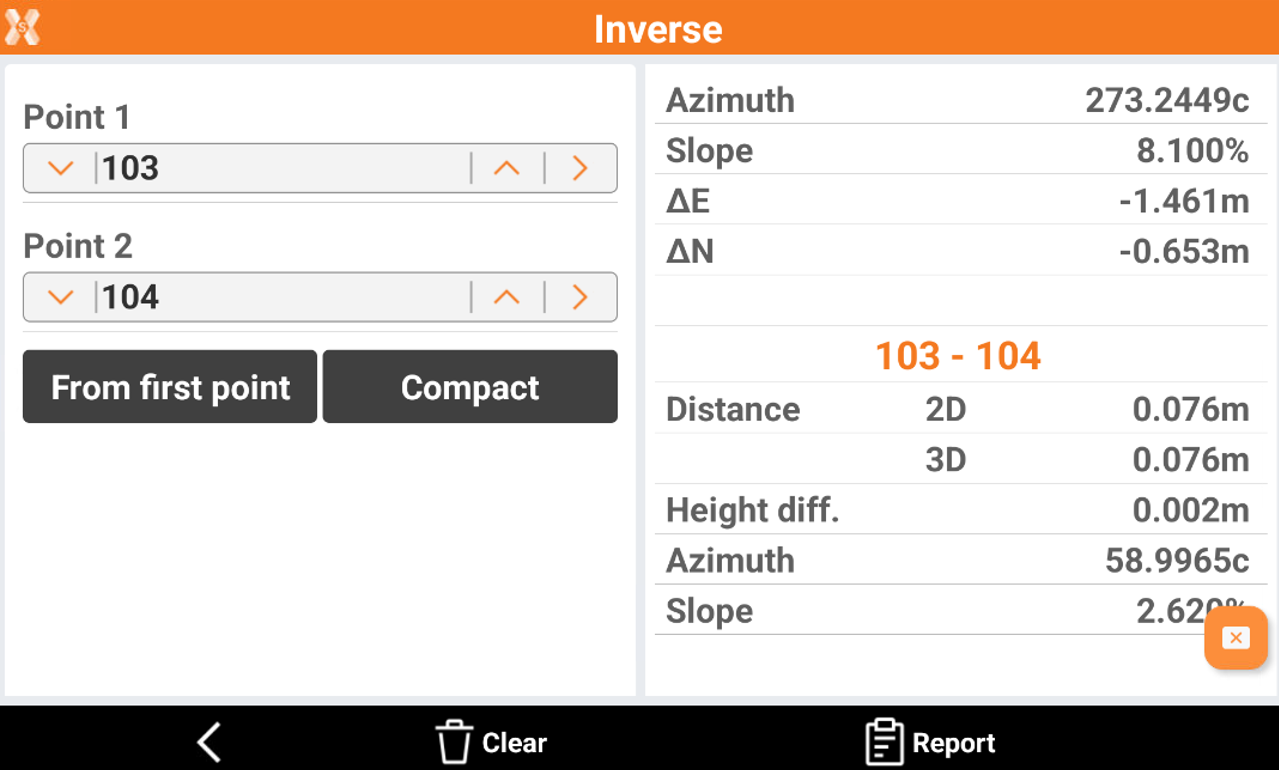

  • It is possible to measure additional distances selecting different points, or clicking image-20250725-080703.png and image-20250725-080717.png to decrease or increase the point number available in the topographic point list.


  • Click Compact or Extended to show reduced or full information in the right panel.

  • Click Report to export the result in ASCII, Excel CSV, Excel XML, PDF or HTML format.

  • Click Clear to clear the result panel.
