The HeXML format is a XML-based data exchange format developed by Hexagon for the surveying and construction industry, enabling data transfer between Leica Captivate instruments and other software. It acts as a hybrid between the standard LandXML format and proprietary data structures, allowing for the export and import of various survey data.
-
The software allows to export topographic points, reference points, measurements, drawing, code lists and surfaces in HeXML file format.
-

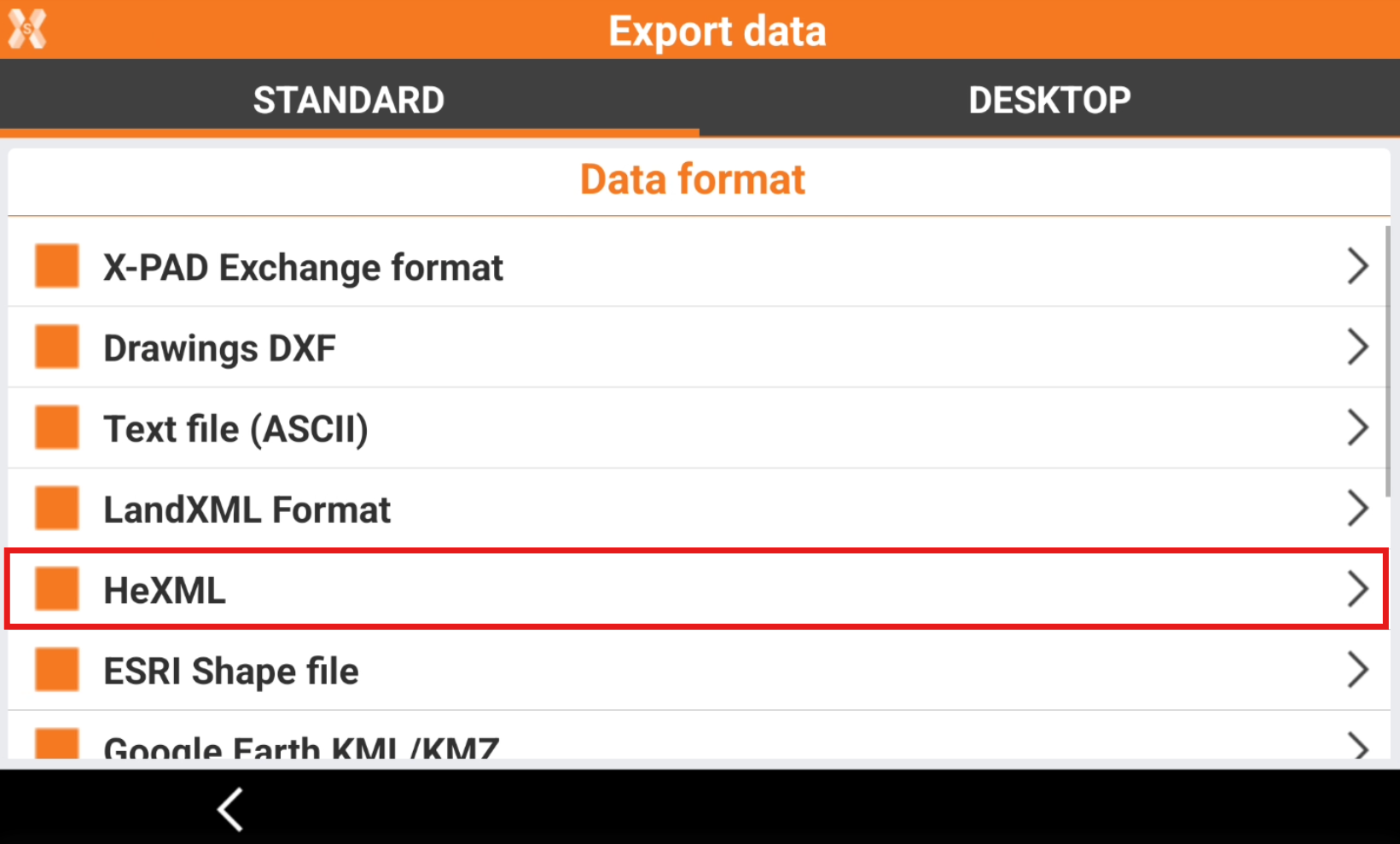

To export the data in HeXML select HeXML Format.
-

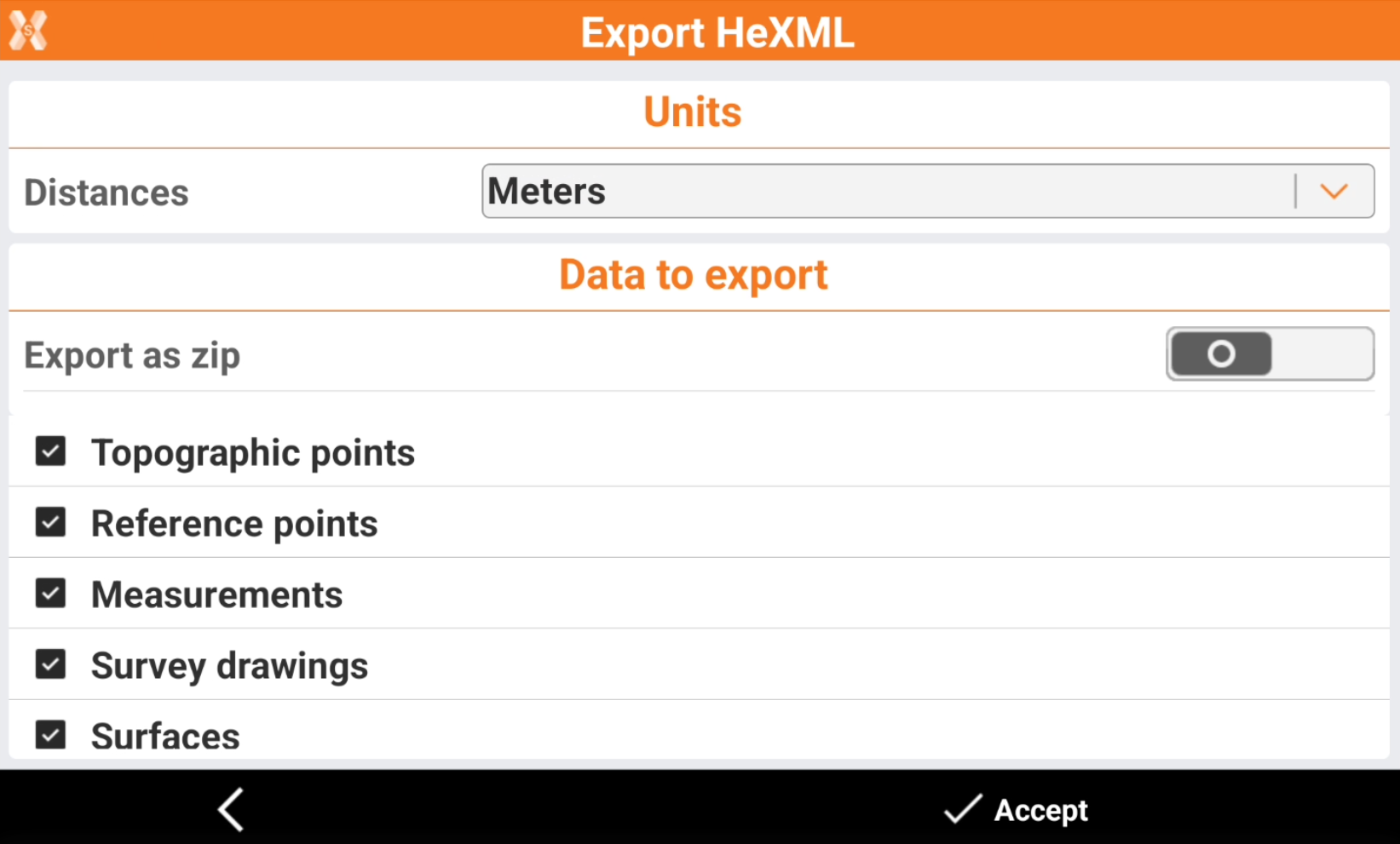

Enter the HeXML Export parameters.
-
Distances: the units used in the exported file.
-
Export as zip: the file exported will be compressed in a zip file.
-
Data to export: allows to select the data to export.
-
-
Click Accept to export the file.
