All points measured in the road functions are recorded as stakeout points.
-
The points can be exported in the Stakeout report.
-

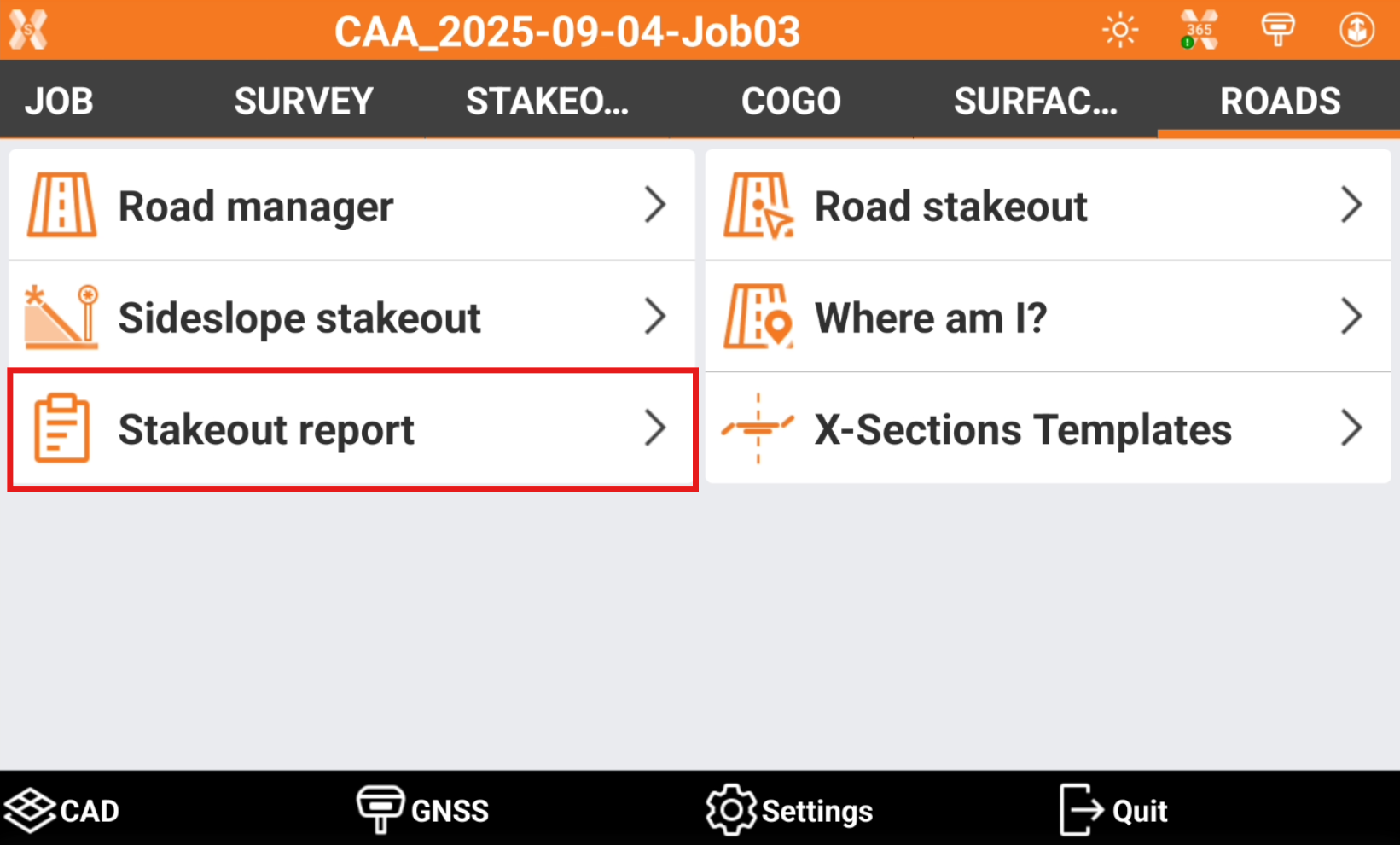

Click Roads.
-
Click Stakeout report.
-
Select the road.
-

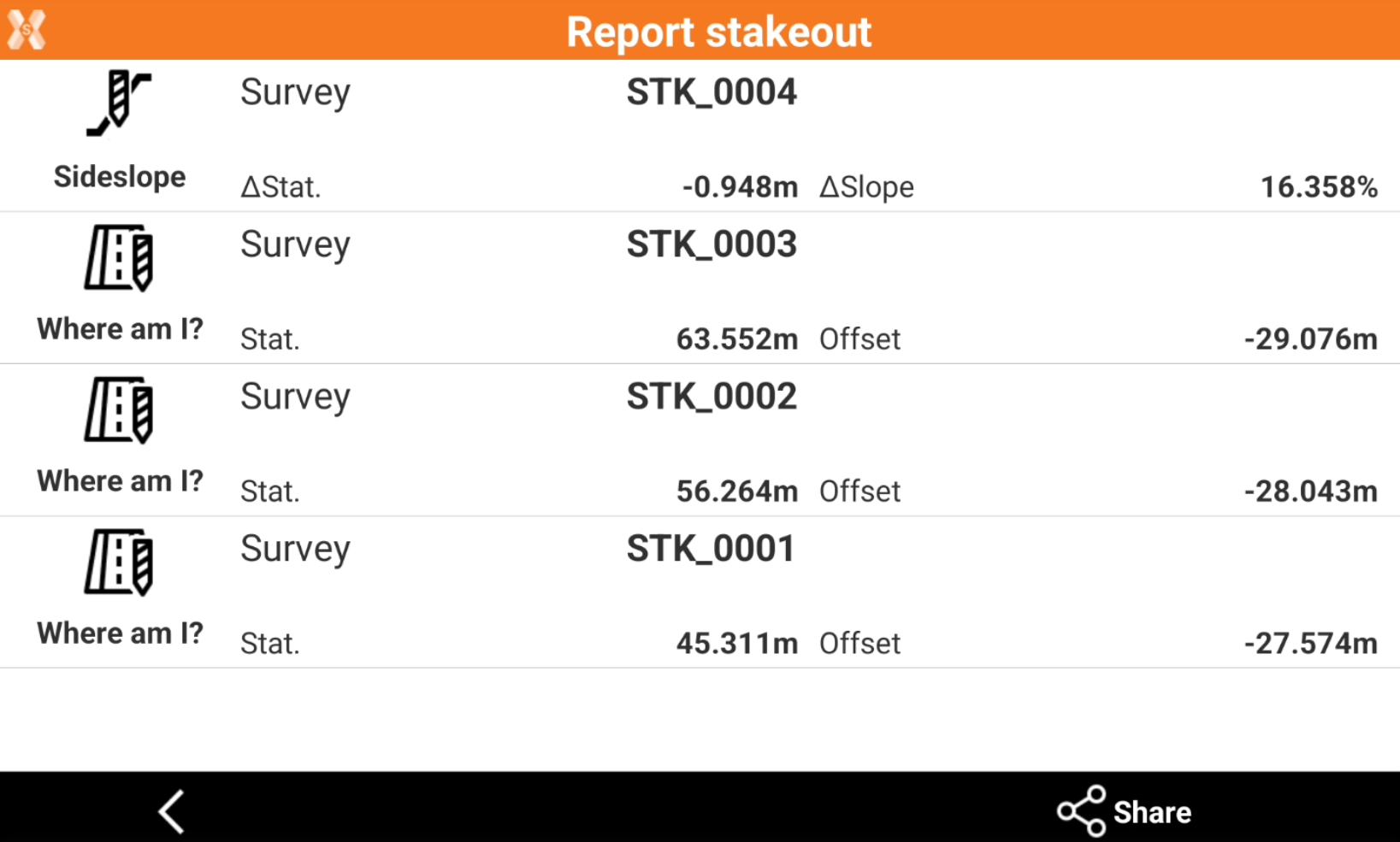

The page lists the measured points and the main information.
-
Click Share to export the report.
-
Select the report version:
-
Extended: allows to export all project information. See Report.
-
Basic: export stakeout information. Allows to select if export the differences from design data or the differences to design data.
-
-

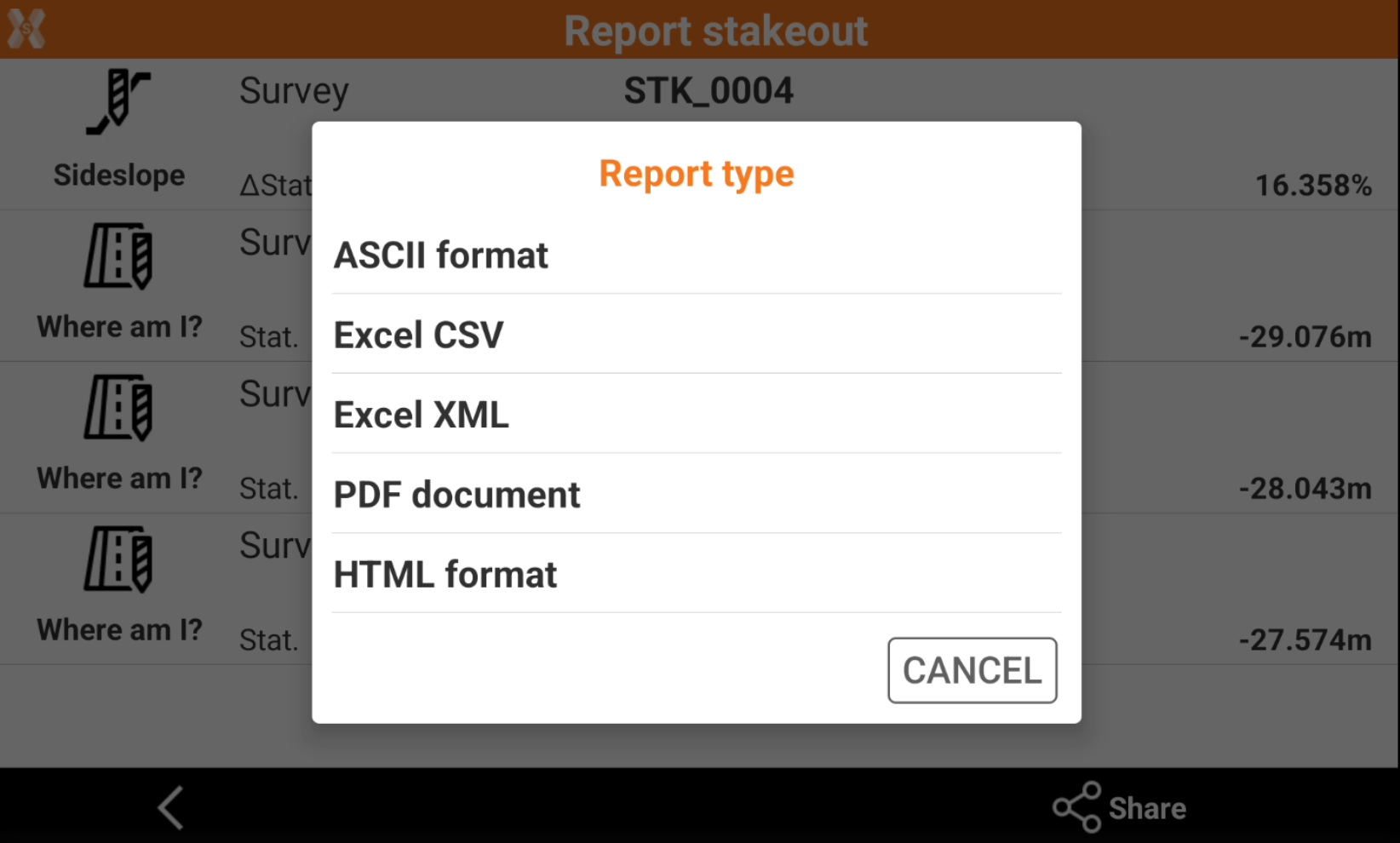

Select the file version to proceed with the export.
