Measure points with IMU

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • When the IMU is initialized, it is possible to measure points with the pole tilted.

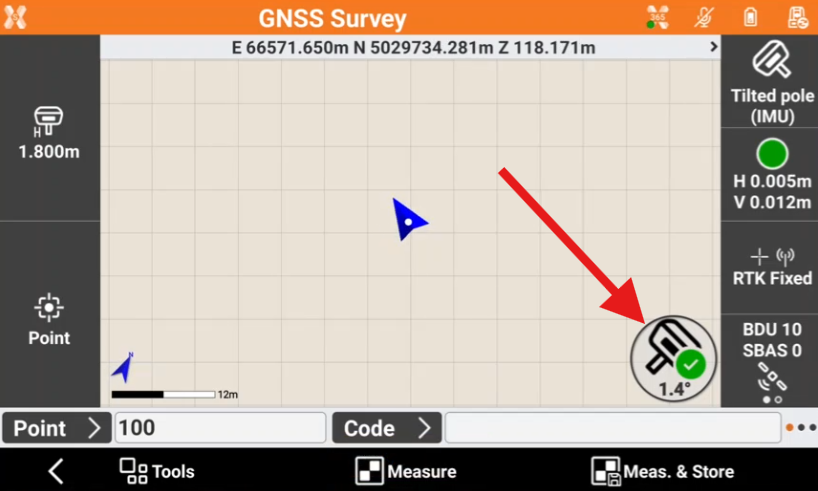

  • The current pole tilt value is visualized on the IMU icon.


  • Measurements with IMU are stored with a specific icon.

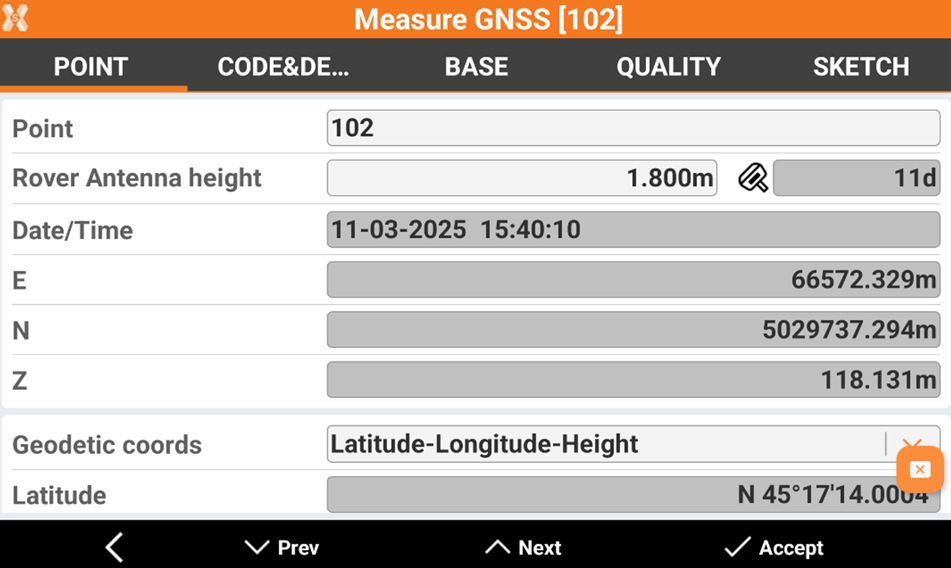

  • For quality control the tilt value is recorded for every measure.

  • Changing the pole height, the point coordinate is recalculated.


  • Below video shows how to measure points with GNSS receiver and IMU.
